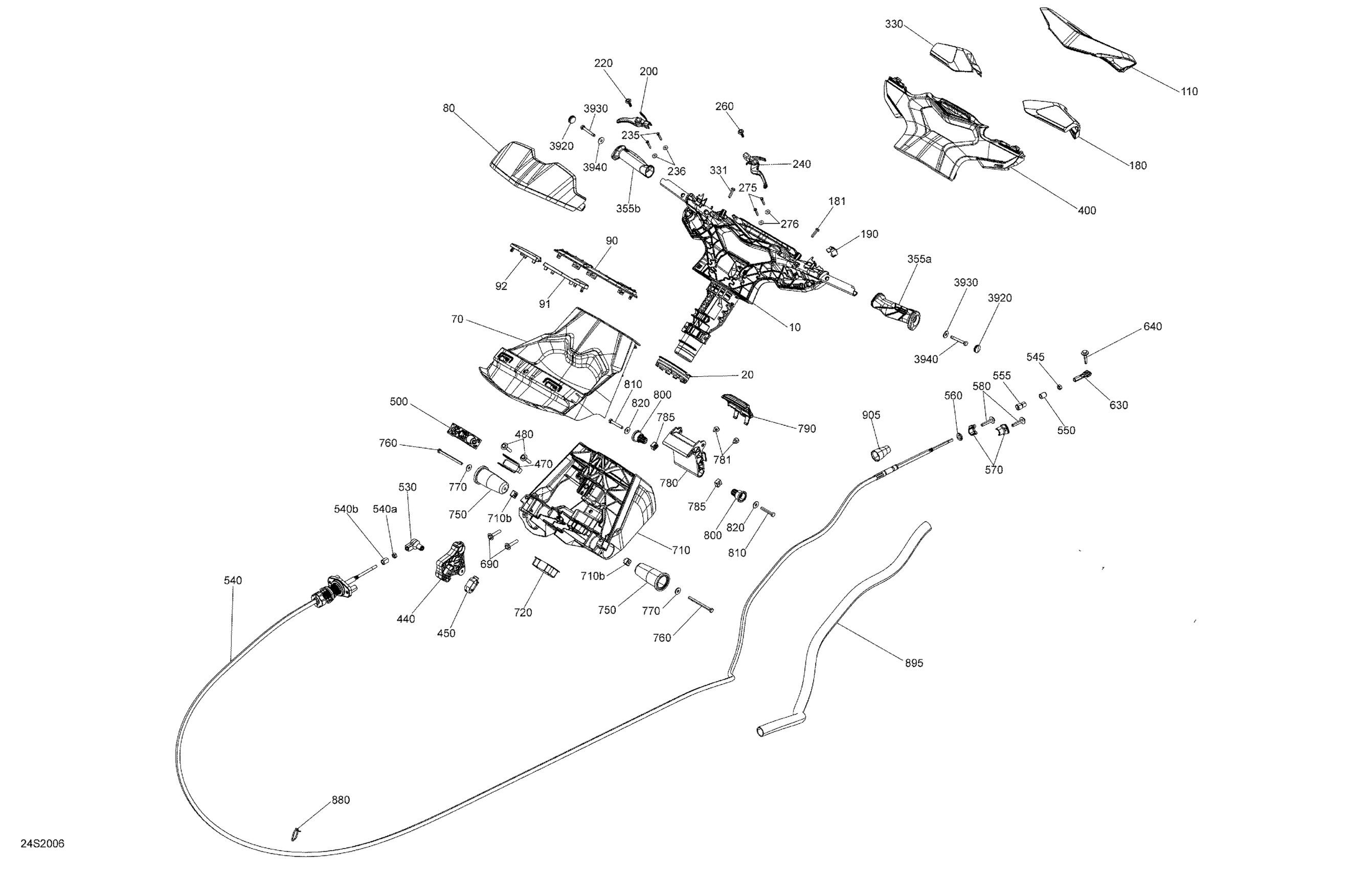

Sea-doo GTX 170, 2020 Steering Diagram

#

Description
Price

10

Steering Column

277002134

$187.28

20

Wear Ring

277001874

$11.18

70

Cluster Support | Built Before Oct 2020

277001980

$55.19

80

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$23.85

90

Speed Indicator Bezel | Built Before Oct 2020

705011286

$7.18

91

Deep Black, LH Trim Gauge

705012349

$4.99

92

Deep Black, RH Trim Gauge

705012351

$4.99

110

Stone Grey, Handlebar Trim

277002240

$14.31

180

LH Cover

277002233

$15.64

181

Hex. Screw 10-14 X 7/8”

211000023

$3.34

190

Red Button Switch

277002327

$8.57

200

Hand Lever Accelerator

277002138

$35.04

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

240

Reverse Handle

277001945

$39.52

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

275

Hex. Flange Screw K40 X 25

241142560

$2.49

276

Flat Washer 4 mm, Stainless

234042600

$1.06

330

RH Cover

277002235

$14.46

331

Hex. Screw 10-14 X 7/8”

211000023

$3.34

355a

Deep Black, LH Handle Grip

277001958

$17.88

355b

Deep Black, RH Handle Grip

277001946

$17.88

400

Steering Cover

277001985

$61.16

440<450

Steering Arm Kit

295501183

$8.04

450

Not Available As Spare Part - Friction Washer

Unavailable

470

Spacer

277001654

$13.09

480

Hexagonal Cap Screw M6 X35

250000399

$4.15

500

C Clamp

277002085

$8.25

530

End Fitting Cable

277002119

$19.37

540<540b

Steering Cable | Includes 540 to 540b

277002448

$256.69

540a

Hex. Nut 1/4"-28

211100056

$0.64

540b

Wiper Rod

277001582

$10.13

545

Hex. Nut 1/4"-28

211100056

$0.64

550

Wiper Rod

277001582

$10.13

555

End Piece

277001583

$12.79

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Hexagonal Cap Screw M6 X35

250000399

$4.15

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

690

Hexagonal Cap Screw M6 X35

250000399

$4.15

710<710b

Steering Support Ass'y | Built Before Oct 2020

277001993

$103.70

710b

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

720

Wear Ring

277002318

Unavailable

750

Steering Support Pivot

277001605

$17.13

760

Hex Screw M6 X 80

207168060

$6.36

770

Flat Washer M6, Stainless

234062600

$0.73

780

Adjustment Handle

277001996

$8.09

781

Rubber Bumper

293830005

$6.12

785

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

790

Lock

277002010

$5.79

800

Pivot

277001652

$14.27

810

Hex. Screw M6 X 40

207064060

$1.61

820

Flat Washer M6, Stainless

234062600

$0.73

880

Tie-Rap 180 mm

414115200

$0.10

895

Corrugated Sheath 22MM - 1250MM

276000520

$24.60

905

Rope Guide

277002150

$0.87

3920

Black, Cap

277000203

$8.58

3930

Flat Washer M6, Stainless

234062600

$0.73

3940

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.73
