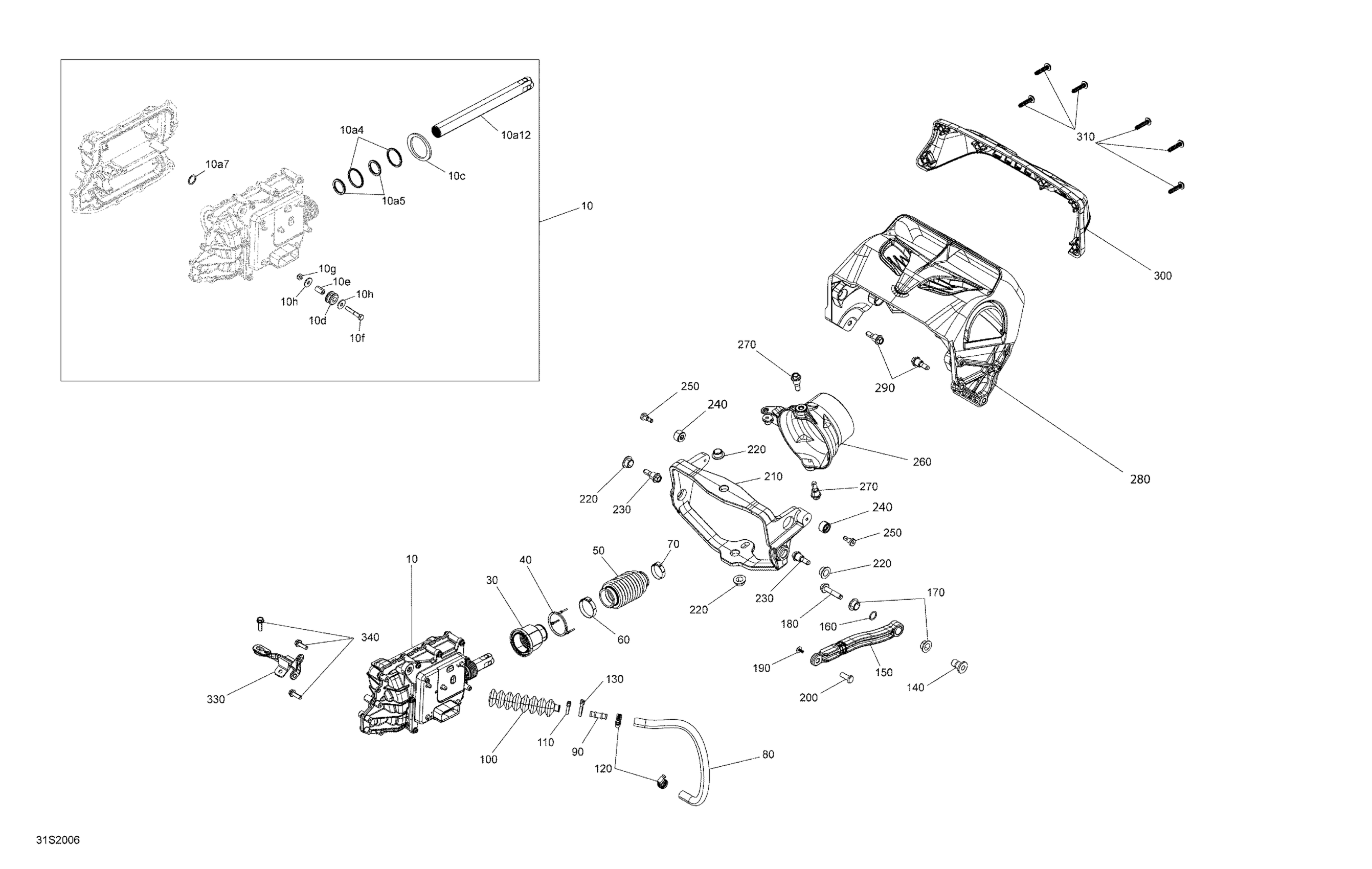

Sea-doo 001 - GTX 170, 2020 05- Reverse Diagram
#
Description
Price
10<10h
Actuator | Includes 10 to 10j
278003606
$829.99
10a4
O-Ring
279000108
$6.03
10a5
O-Ring
293300107
$1.01
10a7
O-Ring
293300187
$4.89
10a12
Output Shaft
278003027
$54.99
10c
Gasket
268000208
$15.37
10d
Grommet
293720104
$5.29
10e
Spacer
271001020
$12.99
10f
Hex. Screw M6 X 35
207063560
$2.22
10g
Elastic Stop Nut M6, Brass
232561200
$4.23
10h
Flat Washer M6, Stainless
234062600
$0.77
30
IBR Nut
268000308
$12.59
40
Rubber Gasket
277001977
$2.61
50
Boot
268000186
$27.49
60
Oetiker Gear Clamp, 36.5-706R
509000529
$9.95
70
Crimp Clamp
293650099
$4.29
80
Was 509000407 Hose 8 mm
219704420
$50.99
90
Fitting-Straig
293710157
$8.29
100
Inner Boot This part replaces 268000345.
268000211
$12.06
110
Tie Wrap 142 mm
293750002
$1.25
120
Tridon Gear Clamp
293650171
$3.09
130
Tie Wrap 142 mm
293750002
$1.25
140
Bushing
268000269
$16.87
150
Linkage Arm Anodised
268000292
$22.49
160
O-Ring
293300187
$4.89
170
Venturi Bushing
293900007
$5.45
180
Hex. Flange Screw Din.6921 S.Grip
250000963
$3.91
190
Hexalob Screw M4 X 10
250000565
$2.11
200
Shoulder Pin
268000309
$19.99
210
Anodised Trimming Ring
268000318
$95.99
220
Venturi Bushing
293900007
$5.45
230
Hex. Flange Screw S.Grip M8 X 18
250000927
$3.91
240
Roller Bushing Kit | Includes 240 to 240b
295501160
$4.29
250
Screw-Socket Shoulder M8X8
250000775
$8.29
260
Steering Nozzle
267000906
$33.99
270
Hex. Flange Screw S.Grip M8 X 18
250000927
$3.91
280
Reverse Gate Kit | Includes 280 to 280c
295501245
$93.99
290
Hex. Flange Screw S.Grip M8 X 18
250000927
$3.91
300
IBR Guard
268000301
$29.99
310
Screw Torx M6.81 X 30
250001007
$2.54
330
Actuator Brace
268000307
$4.99
340
Hex. Flange Screw M6.81 x 20
243162060
$3.72
