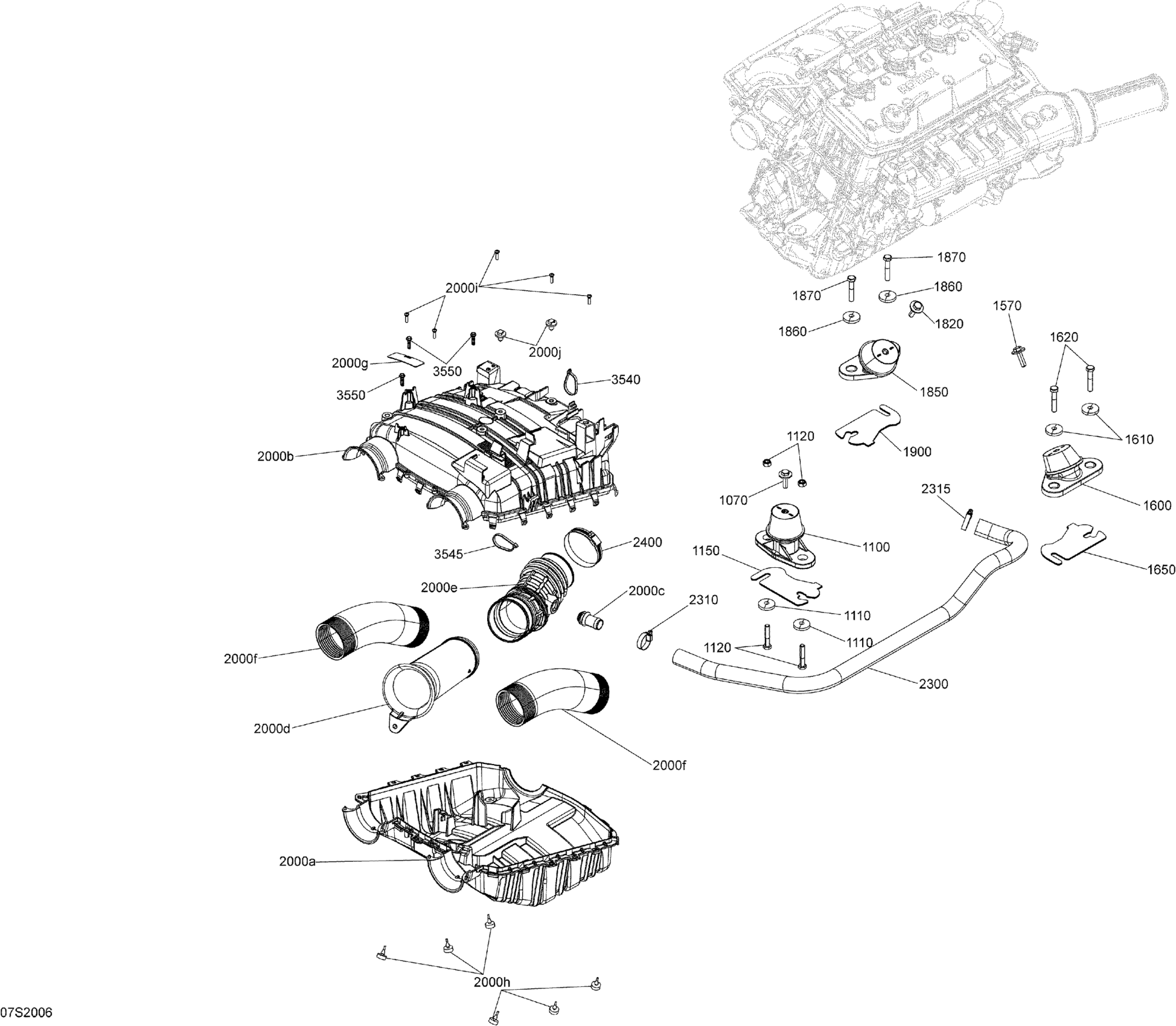

Sea-doo GTX 170, 2020 Engine Diagram

#

Description
Price

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Airbox Base

273000342

$48.99

2000b

Intake Silencer Cover

273000394

$72.99

2000c

Breather Valve

273000234

$14.49

2000d

Intake Hose

273000359

$48.99

2000e

Hose Intake Silencer - Molded

273000395

$17.49

2000f

Air Silencer Hose

273000290

$22.49

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000i

Flange Torx Screw K40 X 16

250000287

$2.11

2000j

Mount Dart

293730040

$1.04

2300

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

2310

Tridon Gear Clamp

293650051

$4.19

2315

Tridon Gear Clamp

293650051

$4.19

2400

Tridon Clamp

293650179

$11.49

3540

Tie-Rap 180 mm

414115200

$0.11

3545

Tie-Rap 180 mm

414115200

$0.11

3550

Hex. Flange Screw K50 X 20

241152060

$1.99
