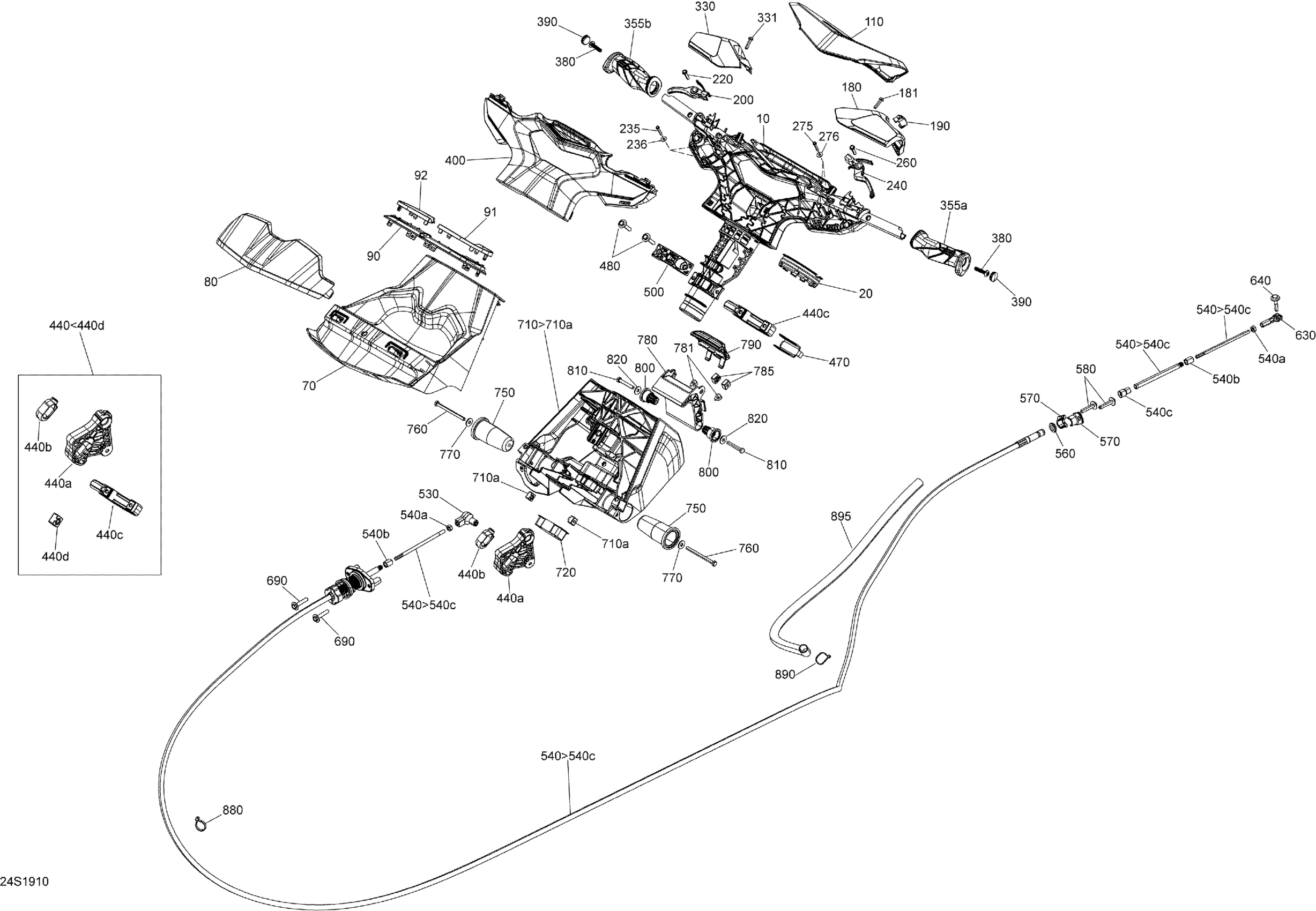

Sea-doo GTX 155, 2019 Steering Diagram

#

Description
Price

10

Steering Column

277001979

$214.99

20

Wear Ring

277001874

$12.17

70

Cluster Support | Built Before Oct 2020

277001980

$61.99

80

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$26.99

90

Speed Indicator Bezel | Built Before Oct 2020

705011286

$9.59

91

Deep Black, LH Trim Gauge

705012349

$5.59

92

Deep Black, RH Trim Gauge

705012351

$5.59

110

Deep Black, Steering Pad

277001988

$57.99

180

LH Cover

277002233

$18.99

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

190

Red Button Switch

277002327

$9.21

200

Throttle Handle

277001944

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

330

RH Cover

277002235

$16.49

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

355a

Deep Black, LH Handle Grip

277001958

$20.99

355b

Deep Black, RH Handle Grip

277001946

$20.99

380

Screw Torx M6.81 X 30

250001007

$2.54

390

Black, Cap

277000203

$9.39

400

Steering Cover

277001985

$68.99

440<440d

Steering Arm Kit

295501183

$10.99

440a

Not Available As Spare Part - Friction Washer

Unavailable

440b

Not Available As Spare Part - Friction Washer

Unavailable

440c

Not Available As Spare Part - Friction Washer

Unavailable

440d

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

470

Spacer

277001654

$15.99

480

Hexagonal Cap Screw M6 X35

250000399

$4.44

500

C Clamp

277002085

$9.19

530

End Fitting Cable

277002119

$20.99

540>540c

Steering Cable | Includes 540 to 540b

277002448

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

540c

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710>710a

Steering Support Ass'y | Built Before Oct 2020

277001993

$114.99

710a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

780

Adjustment Handle

277001996

$10.38

781

Rubber Bumper

293830005

$8.09

785

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

790

Lock

277002010

$6.49

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77

880

Tie-Rap 180 mm

414115200

$0.11

890

Tie-Rap 180 mm

414115200

$0.11

895

Shield Corrugated 22MM - 1100MM

276000470

$26.49
