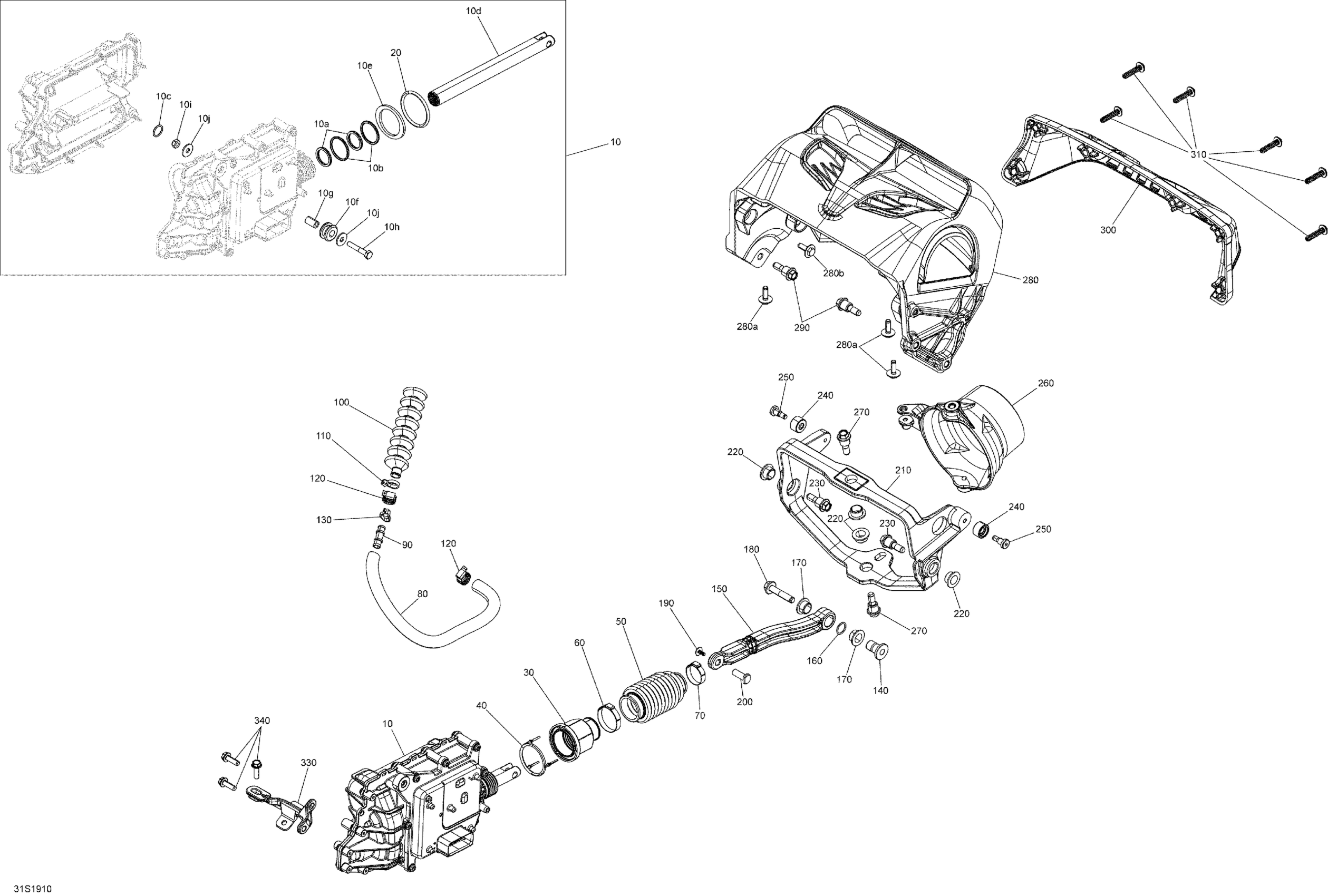

Sea-doo GTX 155, 2019 Reverse Diagram

#

Description
Price

10>10j

Actuator | Includes 10 to 10j

278003606

$738.78

10a

O-Ring

279000108

$5.61

10b

O-Ring

293300107

$0.96

10c

O-Ring

293300187

$3.67

10d

Output Shaft

278003027

$50.72

10e

Gasket

268000208

$14.37

10f

Grommet

293720104

$4.76

10g

Spacer

271001020

$10.60

10h

Hex. Screw M6 X 35

207063560

$2.12

10i

Elastic Stop Nut M6, Brass

232561200

$4.03

10j

Flat Washer M6, Stainless

234062600

$0.73

20

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

30

IBR Nut

268000308

$9.84

40

Rubber Gasket

277001977

$2.01

50

Boot

268000186

$4.12

60

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

70

Crimp Clamp

293650099

$4.07

80

Was 509000407 Hose 8 mm

219704420

$46.24

90

Fitting-Straig

293710157

$6.15

100

Inner Boot This part replaces 268000345.

268000211

$9.34

110

Tie Wrap 142 mm

293750002

$1.01

120

Tridon Gear Clamp

293650171

$2.82

130

Tie Wrap 142 mm

293750002

$1.01

140

Bushing

268000269

$14.48

150

Linkage Arm Anodised

268000292

$20.12

160

O-Ring

293300187

$3.67

170

Venturi Bushing

293900007

$4.25

180

Hex. Flange Screw Din.6921 S.Grip

250000963

$3.73

190

Hexalob Screw M4 X 10

250000565

$2.00

200

Shoulder Pin

268000309

$17.13

210

Anodised Trimming Ring

268000318

$85.79

220

Venturi Bushing

293900007

$4.25

230

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.73

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

250

Screw-Socket Shoulder M8X8

250000775

$7.54

260

Steering Nozzle

267000906

Unavailable

270

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.73

280>280b

Reverse Gate Kit | Includes 280 to 280c

295501245

$84.30

280a

Hex Screw M6 X 20

250000965

$2.00

280b

Hex Screw M6 X 20

250000965

$2.00

290

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.73

300

IBR Guard

268000301

$26.84

310

Screw Torx M6.81 X 30

250001007

$1.85

330

Actuator Brace

268000307

$4.46

340

Hex. Flange Screw M6.81 x 20

243162060

$3.79
