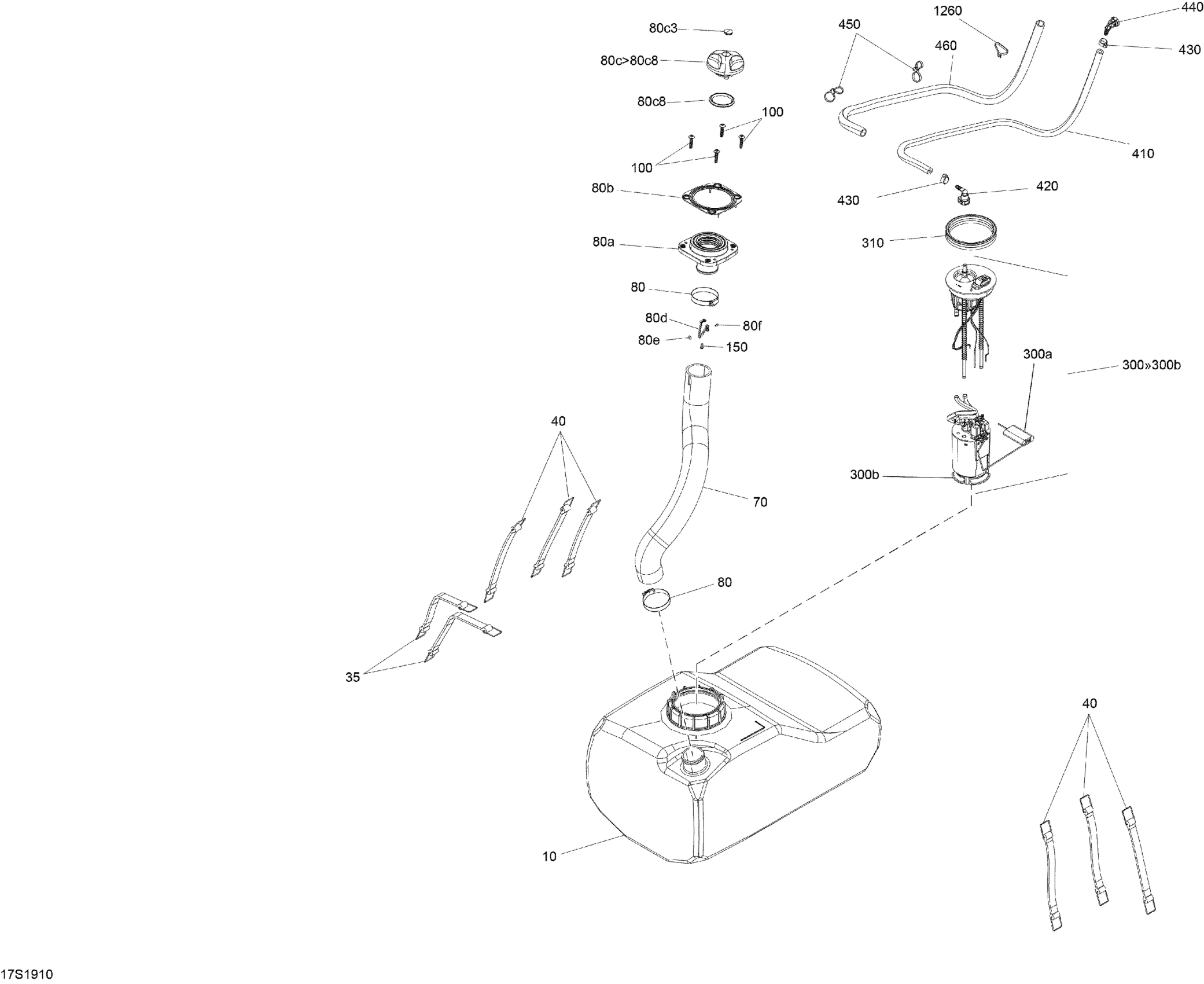

Sea-doo GTX 155, 2019 Fuel System Diagram

#

Description
Price

10

Fuel Tank

275500962

$320.87

35

Fuel Tank Strap

293850087

$16.39

40

Fuel Tank Strap

293850087

$16.39

70

Formed Hose

275500969

$79.82

80

Norma Clamp

293650081

$11.33

80a

Filler Neck

275500986

$14.79

80b

Gasket

293250434

$3.54

80c>80c8

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$55.19

80c3

Black, Snap Cap

293000034

$8.58

80c8

Gasket

293250417

$3.64

80d

Fuel Cap Chain

275500507

$15.64

80e

Flat Washer M3, Stainless

234032600

$0.52

80f

Pop Rivet 1/8"

390407900

$1.34

100

Screw Torx M6.81 X 30

250001007

$1.85

150

Screw K40 X 10

241140060

$1.43

300>300b

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$426.84

300a

Sensor Lever

275500780

$202.21

300b

Fuel Filter

270600113

$31.31

310

Gasket

293250173

$17.88

410

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

420

Quick Disconnect

275500921

$14.48

430

Crimp Clamp

293650053

$2.78

440

Elbow Fitting 90°

293710105

$12.15

450

Tie Rap 300mm

293750053

$1.99

460

Tubing 16 Mm 1000Mm Long

219704408

$7.15

1260

Tie Wrap 368 mm

293750008

$0.97
