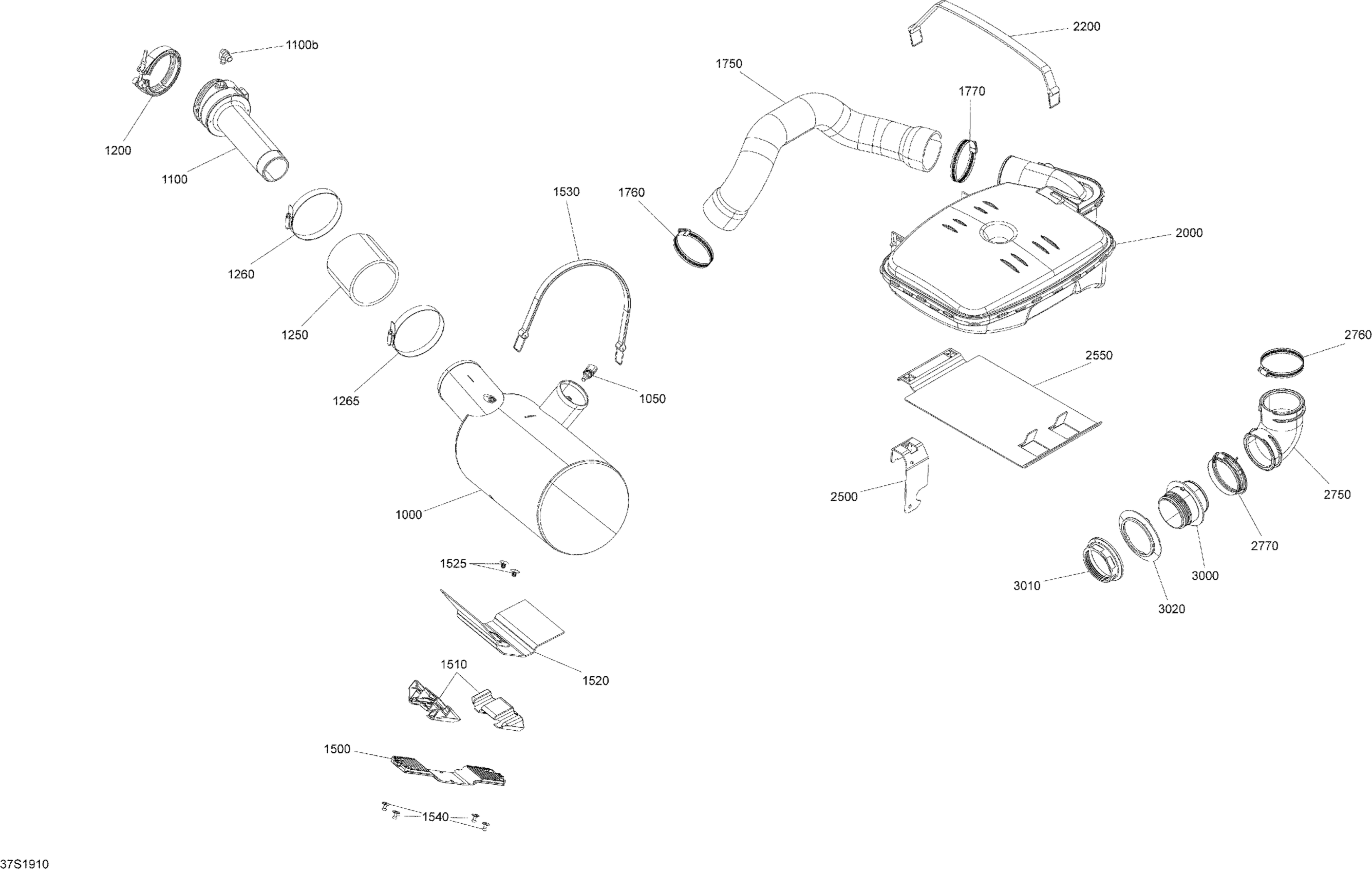

Sea-doo GTX 155, 2019 Exhaust System Diagram

#

Description
Price

1000

Muffler

274001517

$428.97

1050

Temperature Sensor

278002895

$31.82

100>100b

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

Unavailable

1100b

Elbow Fitting 90° | Without Catalyst

293700023

$17.66

1200

Exhaust Clamp

274001417

$45.47

1250

Hose

274001610

$18.82

1260

Gear Clamp This part replaces 293650281.

293650202

$12.73

1265

Gear Clamp This part replaces 293650281.

293650202

$12.73

1500

Muffler Support

293450365

$15.29

1510

Stopper

274001721

$14.27

1520

Pad Rubber

293830153

$13.52

1525

Dart

414939500

$0.86

1530

Strap

293850120

$14.92

1540

Pop Rivet 3/16

293150186

$1.63

1750

Front Exhaust Hose

274001709

$64.97

1760

Tridon Gear Clamp

293650244

$7.22

1770

Tridon Gear Clamp

293650244

$7.22

2000

Resonator

274001722

$126.72

2200

Strap

293850120

$14.92

2500

Hook Retaining

292002297

$32.28

2550

Rubber Pad

293830173

$11.38

2750

Rear Exhaust Hose

274001628

$16.22

2760

Tridon Gear Clamp

293650244

$7.22

2770

Tridon Gear Clamp

293650244

$7.22

3000

Exhaust Fitting

274001659

$29.22

3010

Nut-77mm

274001541

$14.27

3020

Washer

274001587

$11.53
