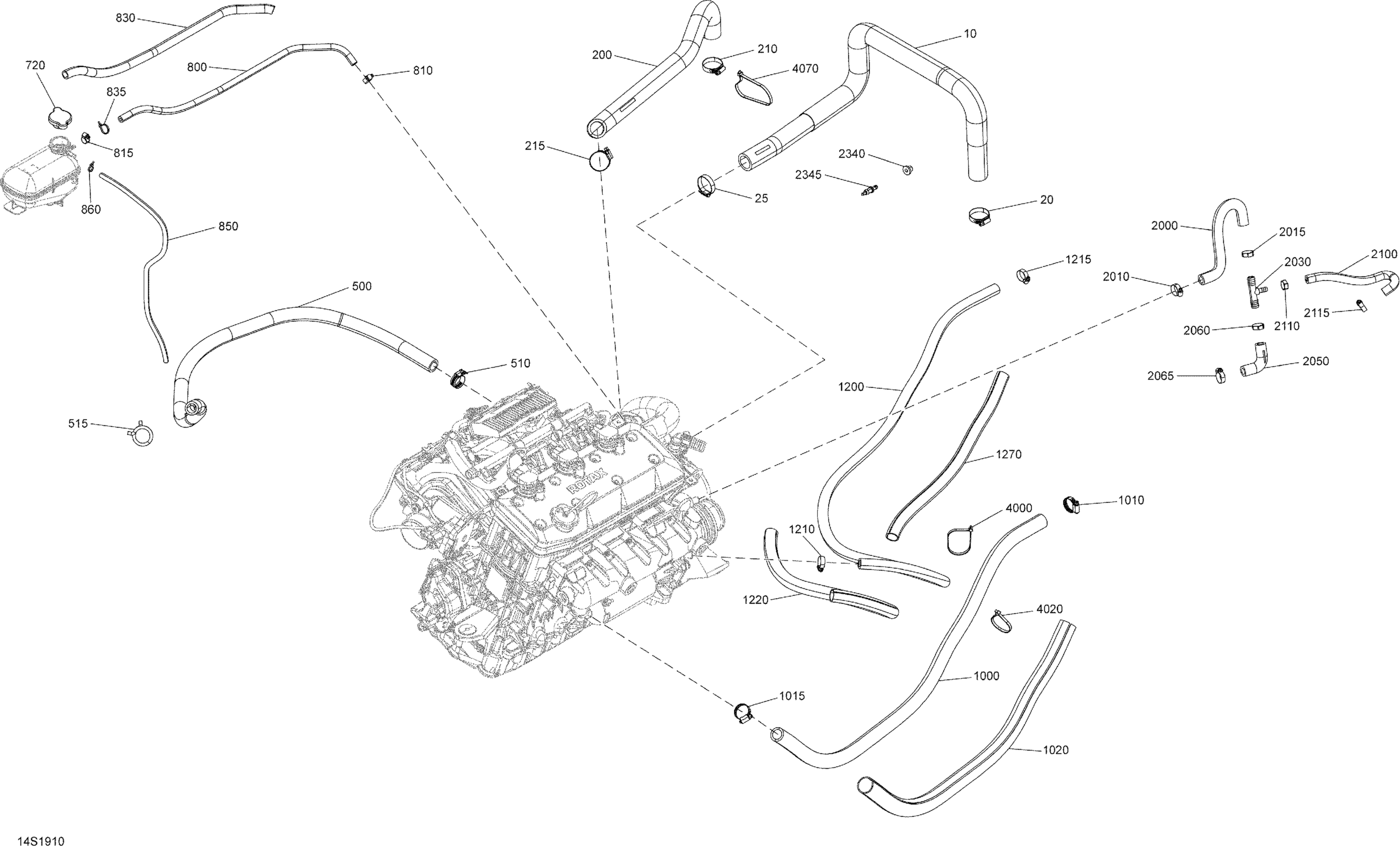

Sea-doo GTX 155, 2019 Cooling System Diagram

#

Description
Price

10

Hose Riding Plate LH

276000462

$63.05

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

200

Hose Riding Plate RH

276000487

$54.58

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

500

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$10.00

810

Gear Clamp

293650287

$1.74

815

Gear Clamp

293650287

$1.74

830

Was 409901800 Tubing (13 mm)

219704400

$9.40

835

Tie Wrap 94 mm | 4X4

293750001

$0.83

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

860

Tie Wrap 94 mm | 4X4

293750001

$0.83

1000

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

1010

Gear Clamp

293650284

$3.61

1015

Gear Clamp

293650284

$3.61

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1200

Was 276000001 Hose 12.5 mm

219704394

$42.87

1210

Clamp Gear

293650285

$2.68

1215

Clamp Gear

293650285

$2.68

1220

Was 515175319 Tubing 22 mm

219704423

$11.84

1270

Was 515175319 Tubing 22 mm

219704423

$11.84

2000

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

2010

Clamp Gear

293650285

$2.68

2015

Oetiker Clamp

293650012

$4.94

2030

T-Fitting

293710116

$14.27

2050

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

2060

Oetiker Clamp

293650012

$4.94

2065

Clamp Gear

293650285

$2.68

2100

Formed Hose | Without Catalyst

276000246

$14.92

2110

Oetiker Clamp | Europe

293650030

$4.32

2115

Clamp Gear

293650285

$2.68

2340

Grommet

293720029

$1.13

2345

Straight Fitting

293710133

$13.52

4000

Tie Wrap 368 mm

293750008

$0.85

4020

Tie-Rap 180 mm

414115200

$0.09

4070

Tie Wrap 368 mm

293750008

$0.85
