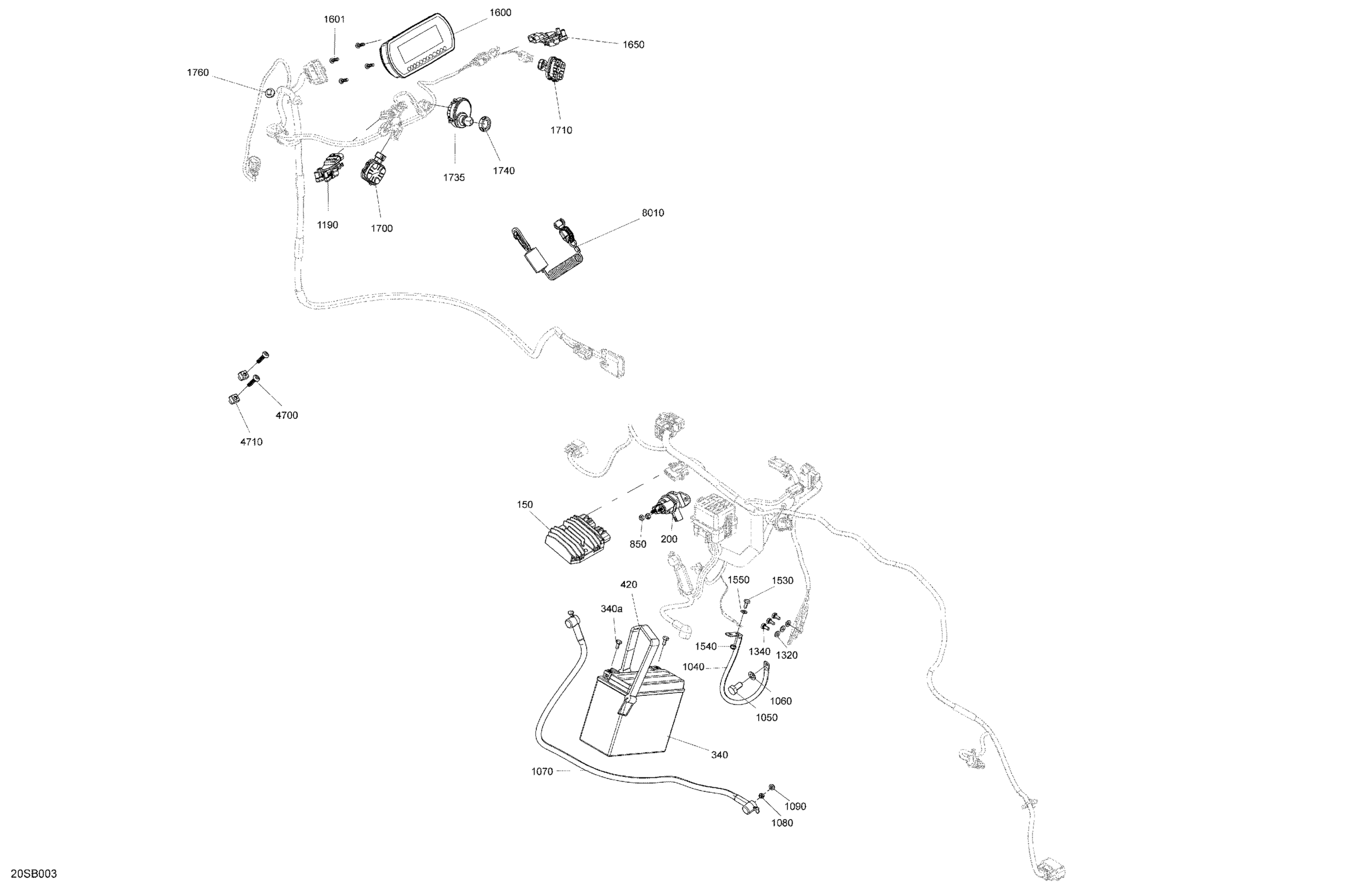

Sea-doo GTR 230, 2022 Electric - System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

340a

Battery Bolt Kit

250000282

$7.29

420

Strap

293850141

$20.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1600

Multifunction Mono Compact Gauge

278003430

$599.99

1601

Hex. Flange Screw K50 X 20

241152060

$1.99

1650

Throttle Position Sensor

278002283

$119.99

1700

LH Switch Keypad

278003726

$126.99

1710

RH Switch Keypad

278003474

$126.99

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

1735

Terminal_Dess One-Wire Open

515179239

Unavailable

1740

Safety Nut (DESS Switch)

278002963

$3.28

1760

Mount Dart

293730040

$1.04

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

4700

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

4710

Insert

291003793

$3.56
