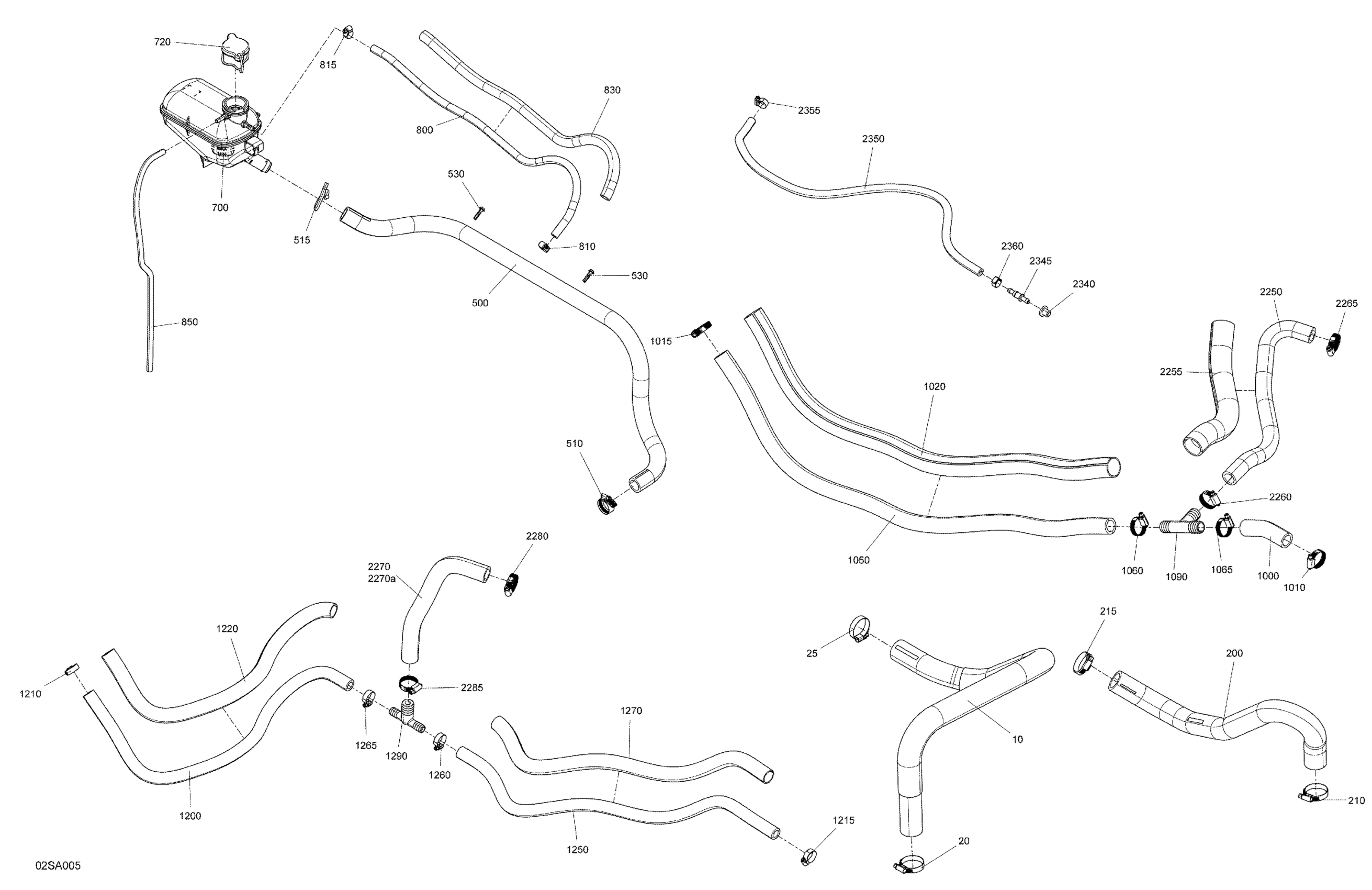

Sea-doo GTR 230, 2021 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$51.97

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

200

Formed Hose

276000517

$45.47

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

500

Coolant Tank Hose

276000523

$31.17

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

530

Hex. Flange Screw K50 X 20

241152060

$1.57

700

Coolant Tank

276000419

$94.22

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

810

Tridon Gear Clamp

293650170

$1.74

815

Tridon Gear Clamp

293650170

$1.74

830

Was 409901800 Tubing (13 mm)

219704400

$9.40

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

1000

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1010

Tridon Gear Clamp

293650051

$3.61

1015

Tridon Gear Clamp

293650051

$3.61

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1050

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1060

Tridon Gear Clamp

293650051

$3.61

1065

Tridon Gear Clamp

293650051

$3.61

1090

T-Fitting

293710131

$12.57

1200

Was 276000001 Hose 12.5 mm

219704394

$42.87

1210

Tridon Gear Clamp

293650172

$2.68

1215

Tridon Gear Clamp

293650172

$2.68

1220

Was 515175319 Tubing 22 mm

219704423

$11.84

1250

Was 276000001 Hose 12.5 mm

219704394

$42.87

1260

Tridon Gear Clamp

293650172

$2.68

1265

Tridon Gear Clamp

293650172

$2.68

1270

Was 515175319 Tubing 22 mm

219704423

$11.84

1290

T-Fitting

293710132

$9.48

2250

Formed Hose

276000422

$19.47

2255

Tubing 25 MM 1000MM Long

219704402

$12.69

2260

Tridon Gear Clamp

293650051

$3.61

2265

Tridon Gear Clamp

293650051

$3.61

2270

Formed Hose | Includes 2270 to 2270a This part replaces 276000461.

276000423

$30.57

2270a

Hose

276000501

$26.84

2280

Tridon Gear Clamp

293650051

$3.61

2285

Tridon Gear Clamp

293650051

$3.61

2340

Grommet

293720029

$1.13

2345

Male Connector

414518500

$3.50

2350

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

2355

Tridon Gear Clamp

293650170

$1.74

2360

Oetiker Gear Clamp

293650025

$2.46
