01- Rotax - Magneto And Electric Starter Without iDF

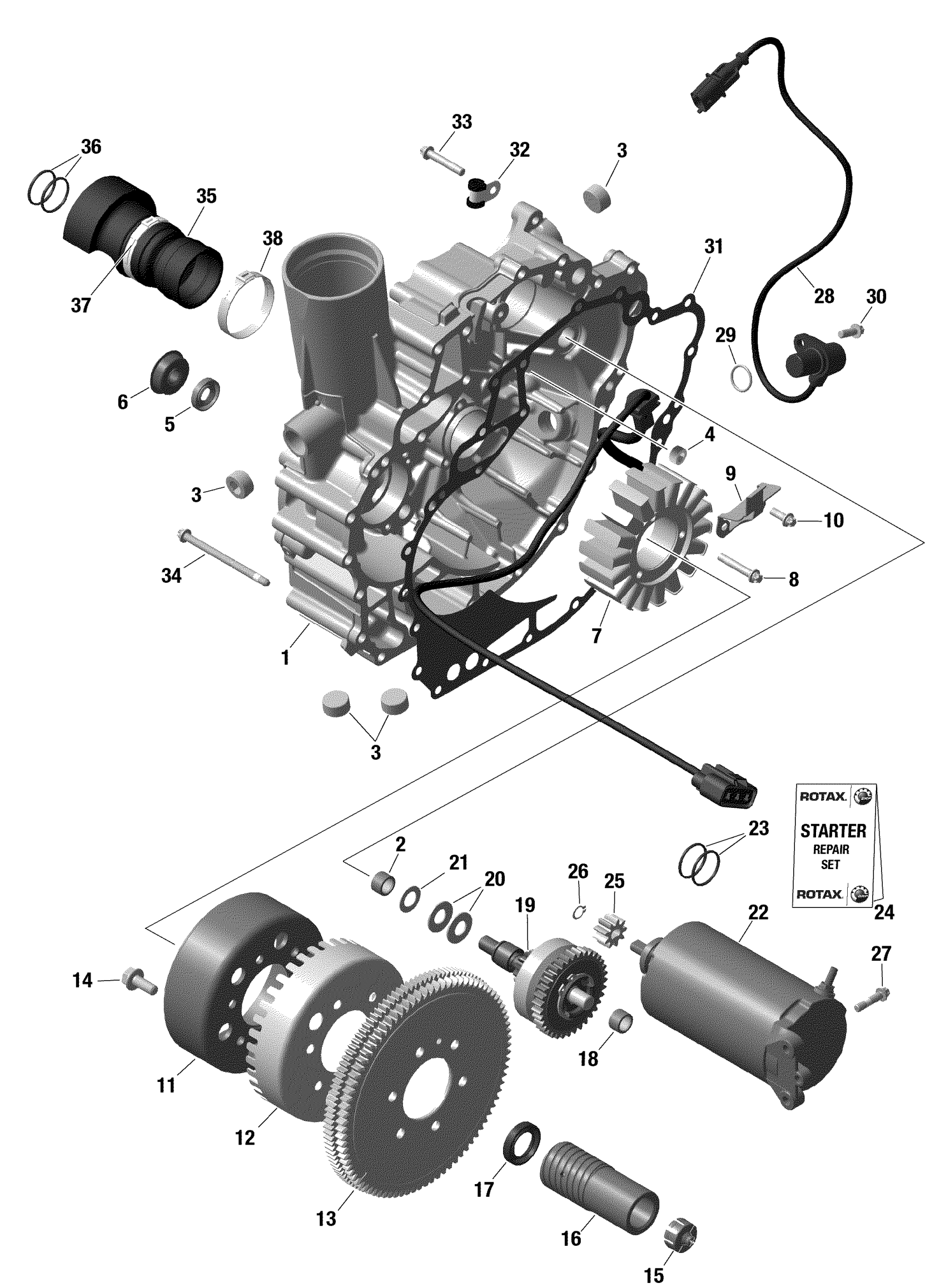

Sea-doo 001 - GTR 230, 2021 01- Rotax - Magneto And Electric Starter Without iDF Diagram
#
Description
Price
1
Timing/Drive Cover Ass'y | Includes 1 to 9
420912262
$779.99
2
Needle Bushing
420232482
$20.99
3
Plug Screw M20 X 1.5
420641317
$14.22
4
Plug Screw M10 X 1
420641323
$14.28
5
Oil Seal
420650315
$11.65
6
Rotary Seal
420650371
$43.49
7
Stator Plate
420889728
$319.49
8
Torx Flange Screw M6 X 35
420641258
$3.38
9
Retaining Plate
420926300
$16.37
10
Torx Flange Screw M6 X 16
420641048
$2.96
11
Magneto Flywheel
420296900
$461.99
12
Trigger Wheel
420966851
$18.49
13
Starter Double Gear 87/86T
420834871
$319.99
14
Hex Screw
295501162
$15.28
15
Stop Sleeve
420660280
$14.75
16
Output Sleeve This part replaces 420847952.
420947770
$121.99
17
Sealing Ring
420630551
$14.83
18
Needle Bushing
420232482
$20.99
19
Starter Drive
420888041
$274.99
20
Spring Washer
420238300
$7.41
21
Thrust Washer
420827280
$8.47
22
Electric Starter Ass'y | Includes no. 20-21
420888995
$265.99
23
O-Ring
420631310
$4.44
24
Carbon Brush Set
420881340
$67.99
25
Starter Gear, 9 Teeth
420834522
$74.99
26
Retaining Ring
420845601
$4.55
27
Torx Flange Screw M6 X 25
420641238
$3.27
28
Crankshaft Position Sensor Ass'y | Includes 10 to 11
420966570
$109.99
29
O-Ring
420431580
$14.83
30
Torx Flange Screw M6 X 16
420641048
$2.96
31
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
$23.49
32
Clamp
420853414
$18.49
33
Torx Flange Screw M6 X 35
420641258
$3.38
34
Torx Flange Screw M6 X 85
420641228
$7.41
35
Ball Bearing With Bellows Ass'y | Includes 50 to 52
420832648
$142.99
36
O-Ring
420631612
$4.33
35
Gear Clamp 46.8-50.0MM
420853023
$7.41
36
Gear Clamp
420851653
$7.41
