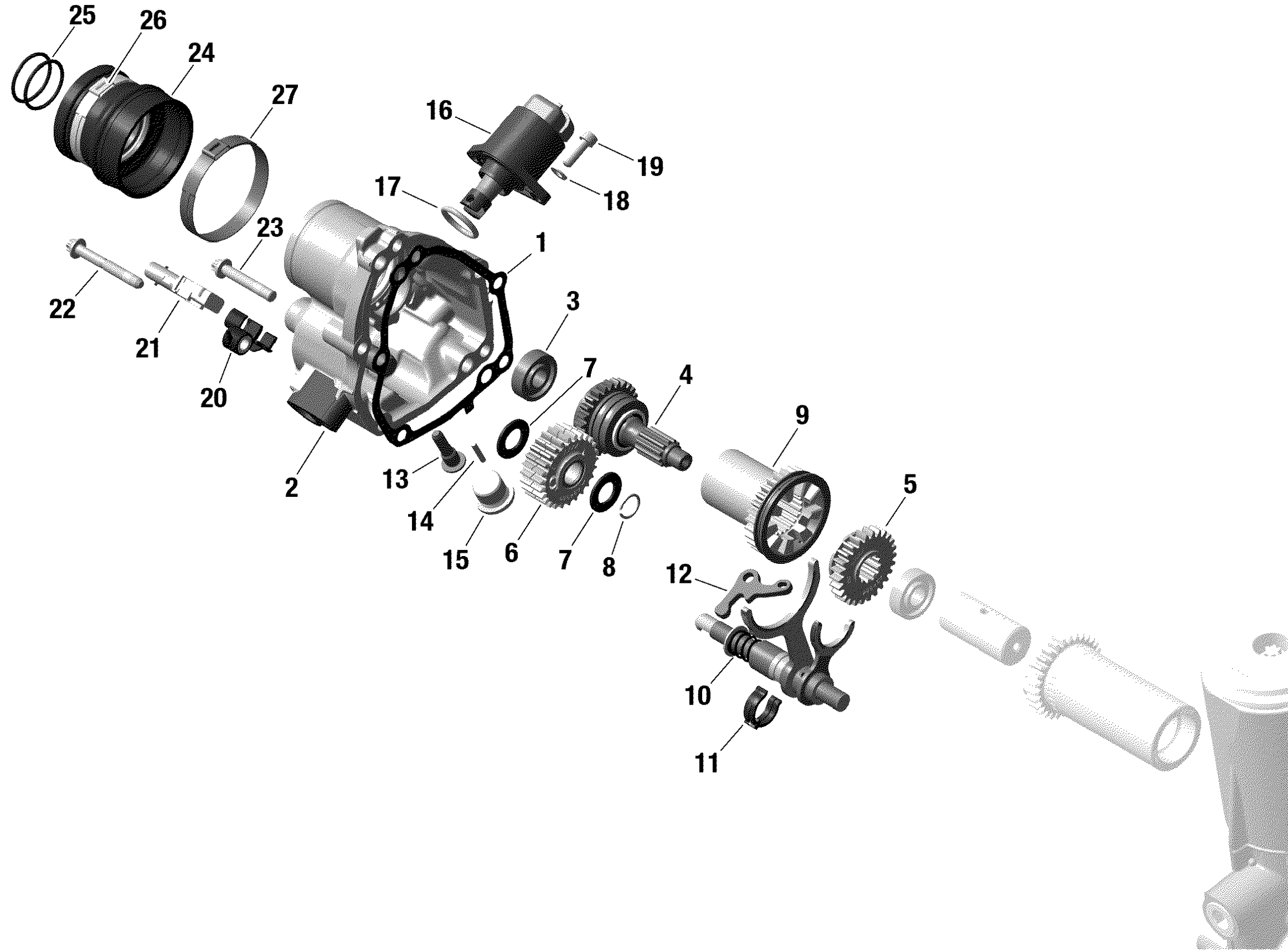

Sea-doo GTR 230, 2021 Rotax - IDF Gearbox Diagram

#

Description
Price

1

iDF Gearbox Gasket | iDF Gearbox

420230010

$12.16

2>19

Gearbox

420685765

$869.99

2>3

Housing | Includes no. 2-3

420210905

$307.49

3

Ball Bearing

420232100

$20.99

3

Ball Bearing

420232100

$20.99

4

Countershaft

420684272

$571.99

5

Gear

420434984

$53.99

6>8

Gear Kit Ass'y | Kit 295501213 includes ill. no. 6-8 This part replaces 420434981.

295501213

$149.99

7

Washer

420926211

$3.17

8

Groove Ring

420245251

$5.92

9

Output Shaft | 9 dog design

420820466

$109.99

10

Shifting Fork Ass'y

420657504

$179.99

11

Holding Clamp With Magnet

420261241

$16.36

12

Rocker Arm

420253603

$19.49

13

Bearing Bolt M8X1

420241151

$24.49

14

Needle Pin B 3X15.8

420932849

$3.49

15

Plug Screw

420240273

$11.65

16

Servomotor Ass'y

420265844

$229.99

17

O-Ring | Included in gasket set gearbox

420450450

$2.19

18

Washer 5.3

420927575

$4.25

19

Allen Screw M5X16

420901253

$1.04

20

Sensor Holder

420951361

$11.49

21

Linear Position Sensor

420665952

$77.99

22

Torx Flange Screw M6 X 45

420641198

$4.12

23

Torx Flange Screw M6 X 35

420641258

$3.38

24>26

Ball Bearing with Bellows Ass'y | Includes no. 26-28

420832642

$185.49

25

O-Ring

420631612

$4.33

26

Gear Clamp 46.8-50.0MM

420853023

$7.41

27

Gear Clamp 52.8-56MM

420851714

$8.15
