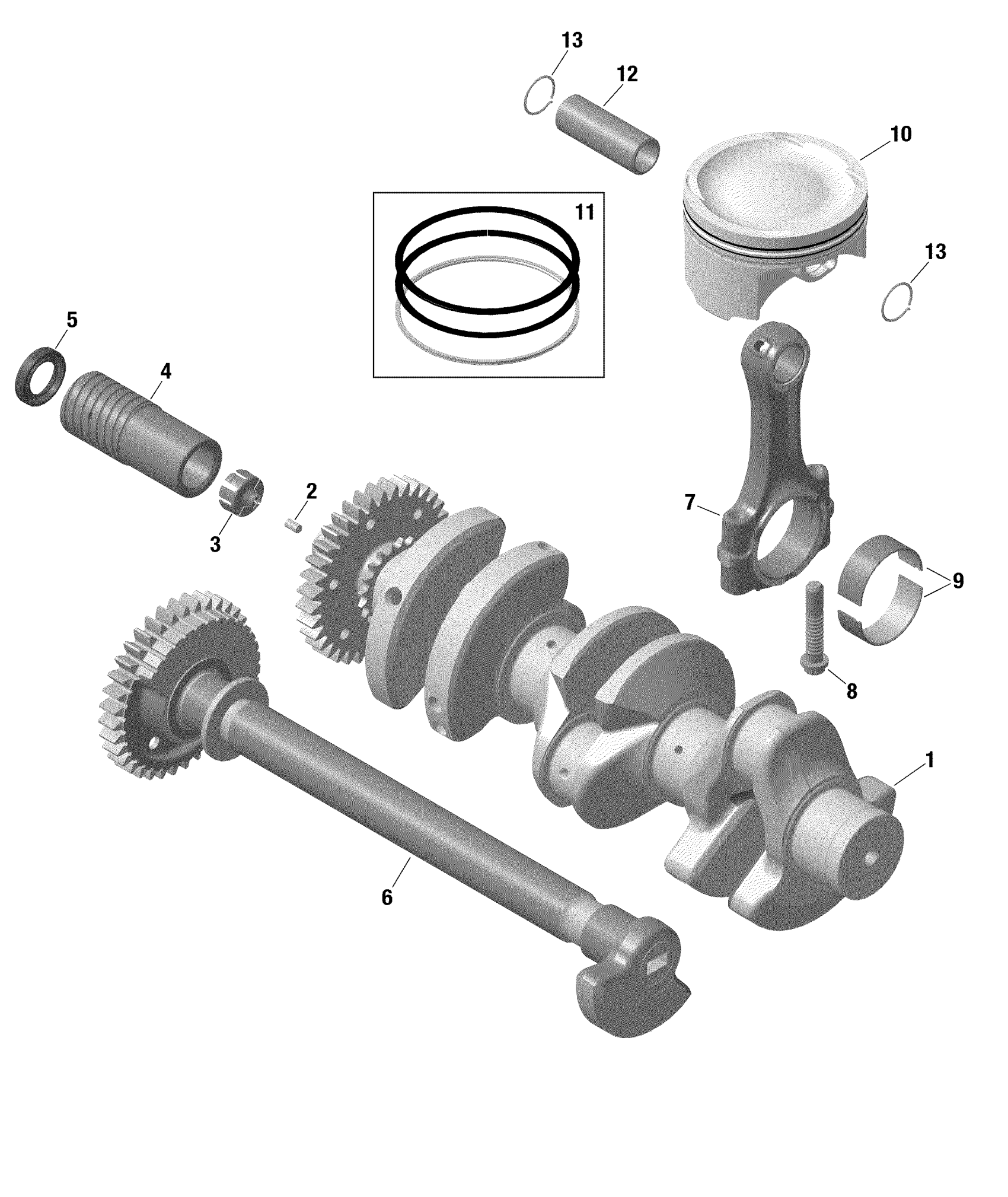

Sea-doo GTR 230, 2020 Engine - Crankshaft And Pistons - 1630 SCIC Diagram

#

Description

Price

1

Crankshaft | Model Without iDF Gearbox

420819494

$1,011.49

2

Drive Pin 5 X 10

420929650

$1.54

3

Stop Sleeve

420660280

$12.52

4

Output Sleeve This part replaces 420847952.

420947770

$112.66

5

Sealing Ring

420630551

$14.10

6

Balance Shaft Ass'y

420820276

$578.33

7

Connecting Rod Ass'y This part replaces 420917762.

420917764

$271.49

8

Connecting Rod Screw M10 X 1

420640996

$10.78

9

Half-Bearing

420933523

$16.39

10

Piston Ass'y 99.96MM | Includes no. 7-8

420686545

$223.10

11

Piston Ring Set

420686543

$83.55

12

Piston Pin

420916472

$31.31

13

Piston Circlip

420245436

$4.97
