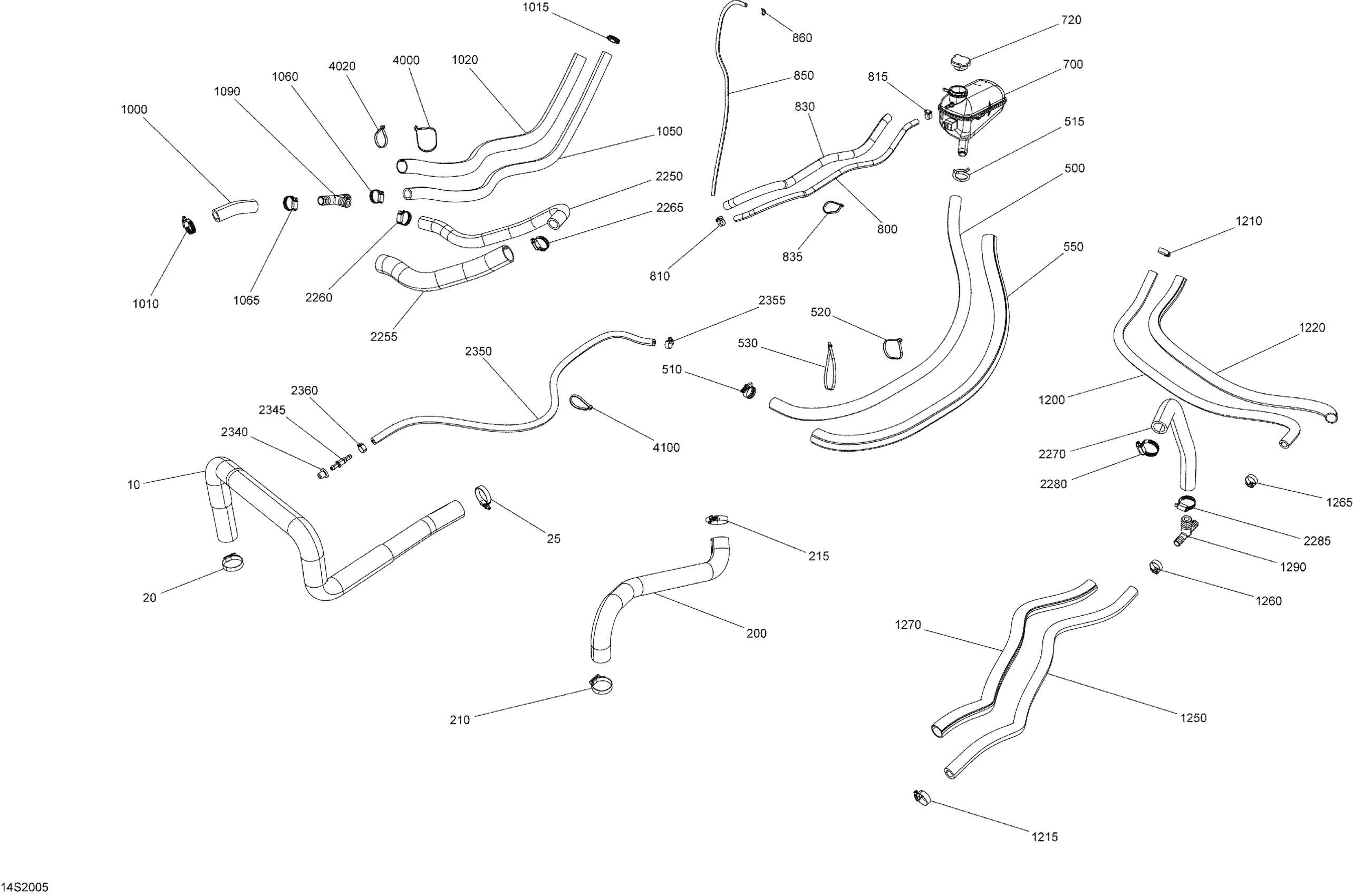

Sea-doo GTR 230, 2020 Cooling System Diagram

#

Description
Price

10

Hose Riding Plate LH

276000462

$59.67

20

Norma Clamp

293650245

$13.51

25

Norma Clamp

293650245

$13.51

200

Hose Riding Plate RH

276000487

$52.21

210

Norma Clamp

293650245

$13.51

215

Norma Clamp

293650245

$13.51

500

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

510

Tridon Gear Clamp

293650019

$5.52

515

Spring Clamp

293650115

$2.82

520

Tie Wrap 94 mm | 4X4

293750001

$0.96

530

Tie Wrap 94 mm | 4X4

293750001

$0.96

550

Tubing 25 MM 1000MM Long

219704402

$14.57

700

Coolant Tank

276000419

$108.18

720

Pressure Cap | Includes 720 to 720a

276000100

$23.85

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

810

Tridon Gear Clamp

293650170

$2.00

815

Tridon Gear Clamp

293650170

$2.00

830

Was 409901800 Tubing (13 mm)

219704400

$10.79

835

Tie-Rap 180 mm

414115200

$0.10

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

860

Tie Wrap 94 mm | 4X4

293750001

$0.96

1000

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1010

Tridon Gear Clamp

293650051

$4.15

1015

Tridon Gear Clamp

293650051

$4.15

1020

Tubing 25 MM 1000MM Long

219704402

$14.57

1050

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1060

Tridon Gear Clamp

293650051

$4.15

1065

Tridon Gear Clamp

293650051

$4.15

1090

T-Fitting

293710131

$14.43

1200

Was 276000001 Hose 12.5 mm

219704394

$49.22

1210

Tridon Gear Clamp

293650172

$3.07

1215

Tridon Gear Clamp

293650172

$3.07

1220

Was 515175319 Tubing 22 mm

219704423

$13.60

1250

Was 276000001 Hose 12.5 mm

219704394

$49.22

1260

Tridon Gear Clamp

293650172

$3.07

1265

Tridon Gear Clamp

293650172

$3.07

1270

Was 515175319 Tubing 22 mm

219704423

$13.60

1290

T-Fitting

293710132

$10.88

2250

Formed Hose

276000422

$22.36

2255

Tubing 25 MM 1000MM Long

219704402

$14.57

2260

Tridon Gear Clamp

293650051

$4.15

2265

Tridon Gear Clamp

293650051

$4.15

2270

Formed Hose | Includes 2270 to 2270a This part replaces 276000461.

276000423

$30.57

2280

Tridon Gear Clamp

293650051

$4.15

2285

Tridon Gear Clamp

293650051

$4.15

2340

Grommet

293720029

$1.30

2345

Male Connector

414518500

$4.01

2350

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

2355

Tridon Gear Clamp

293650170

$2.00

2360

Oetiker Gear Clamp

293650025

$2.82

4000

Tie Wrap 368 mm

293750008

$0.97

4020

Tie-Rap 180 mm

414115200

$0.10

4100

Tie-Rap 180 mm

414115200

$0.10
