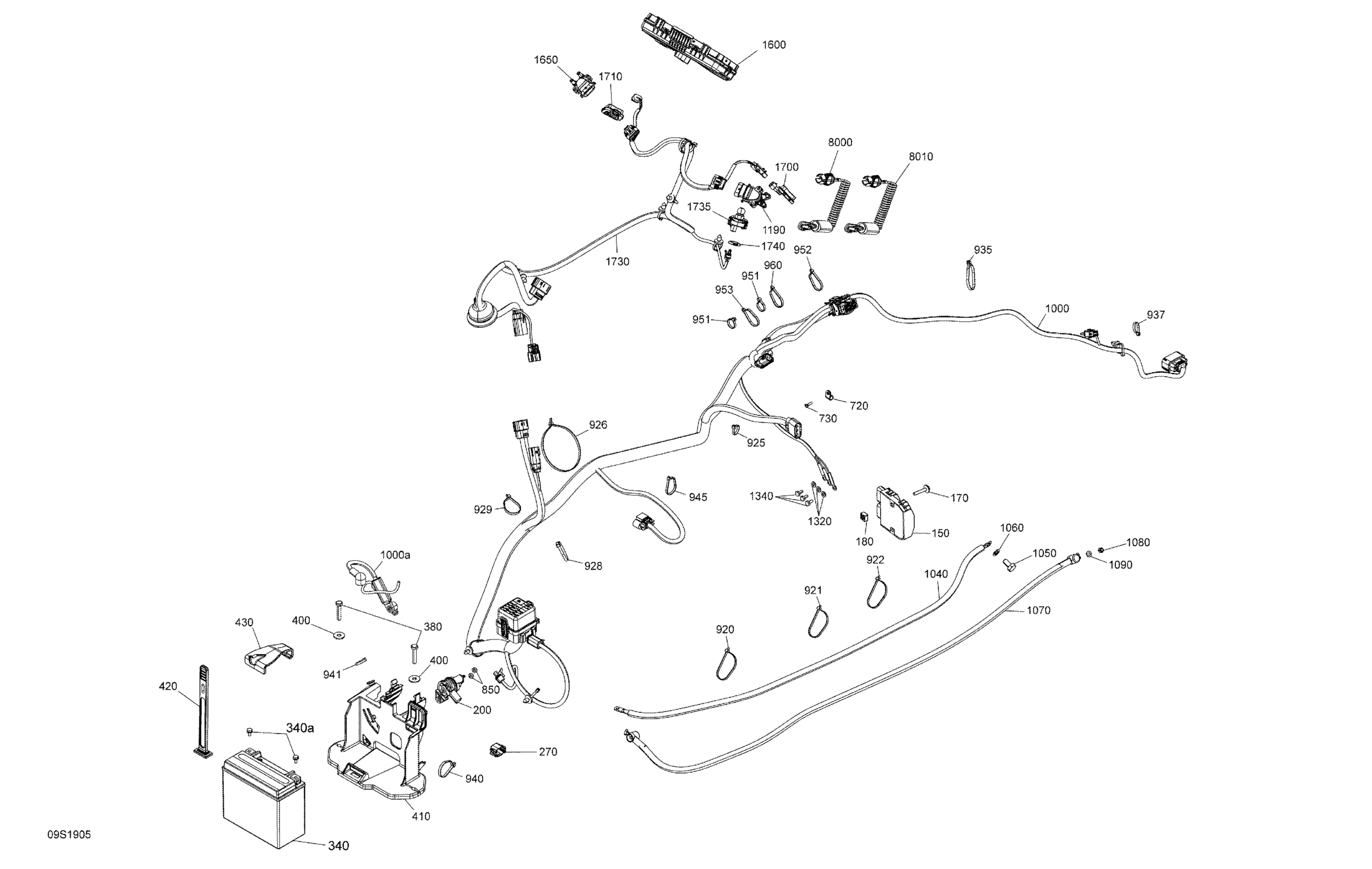

Sea-doo GTR 230, 2019 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

170

Hex Screw SEMS M6X35, SS

250000969

$2.11

180

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

200

Starter Relay

278003012

$42.49

270

Connector Plug

710004904

$8.79

340

Battery 12 Volt 18AH

296000449

$92.28

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$7.29

380

Hex. Screw M8 X 40

207184060

$2.22

400

Flat Washer 8 mm, Stainless

234082600

$2.43

410

Battery Support

278003671

$28.99

420

Strap

269502417

$17.69

430

Clip

278003521

$17.62

720

Hose Clamp

293650257

$5.99

730

Flange Torx Screw K40 X 16

250000287

$2.11

850

Elastic Stop Nut M6, Brass

232561200

$4.23

920

Tie-Rap 180 mm

414115200

$0.11

921

Tie-Rap 180 mm

414115200

$0.11

922

Tie-Rap 180 mm

414115200

$0.11

925

Tie-Rap 180 mm

414115200

$0.11

926

Tie Wrap 368 mm

293750008

$1.04

928

Tie Wrap 368 mm

293750008

$1.04

929

Tie Wrap 368 mm

293750008

$1.04

935

Tie Wrap 368 mm

293750008

$1.04

937

Tie-Rap 180 mm

414115200

$0.11

940

Tie-Rap 180 mm

414115200

$0.11

941

Tie-Rap 180 mm

414115200

$0.11

945

Tie-Rap 180 mm

414115200

$0.11

951

Tie-Rap 180 mm

414115200

$0.11

952

Tie-Rap 180 mm

414115200

$0.11

953

Tie-Rap 180 mm

414115200

$0.11

960

Tie-Rap 180 mm

414115200

$0.11

1000>1000a

Wiring Harness Main | P-SE&M-130_P-STD&M-130

278003706

$649.99

1000a

Battery Cable

278003716

$71.99

1040

Battery Ground Cable

278003270

$41.49

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

1060

Flat Washer 10 mm, Stainless

234000600

$1.46

1070

Cable-Starter

278003370

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1340

Stainless Flat Washer M6

234061600

$0.33

1600

Full Size Multifunction Mono Gauge

278003432

$819.99

1600

Info Gauge Center | Package STD

278003582

$1.00

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch LH VTS/Sport/Eco | Package STD

278002767

$126.99

1700

LH Switch Keypad

278003726

$126.99

1710

Switch RH Mode/Set

278002602

$126.99

1710

RH Switch Keypad

278003474

$126.99

1730

Steering Harness Ass'y | Includes 1730 To TAS

278003551

$349.99

1730

Steering Harness Ass'y

278003559

$349.99

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

1740

Safety Nut (DESS Switch)

278002963

$3.28

8000

Safety Lanyard Ass'y, Learning / RFID

278003401

$84.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99
