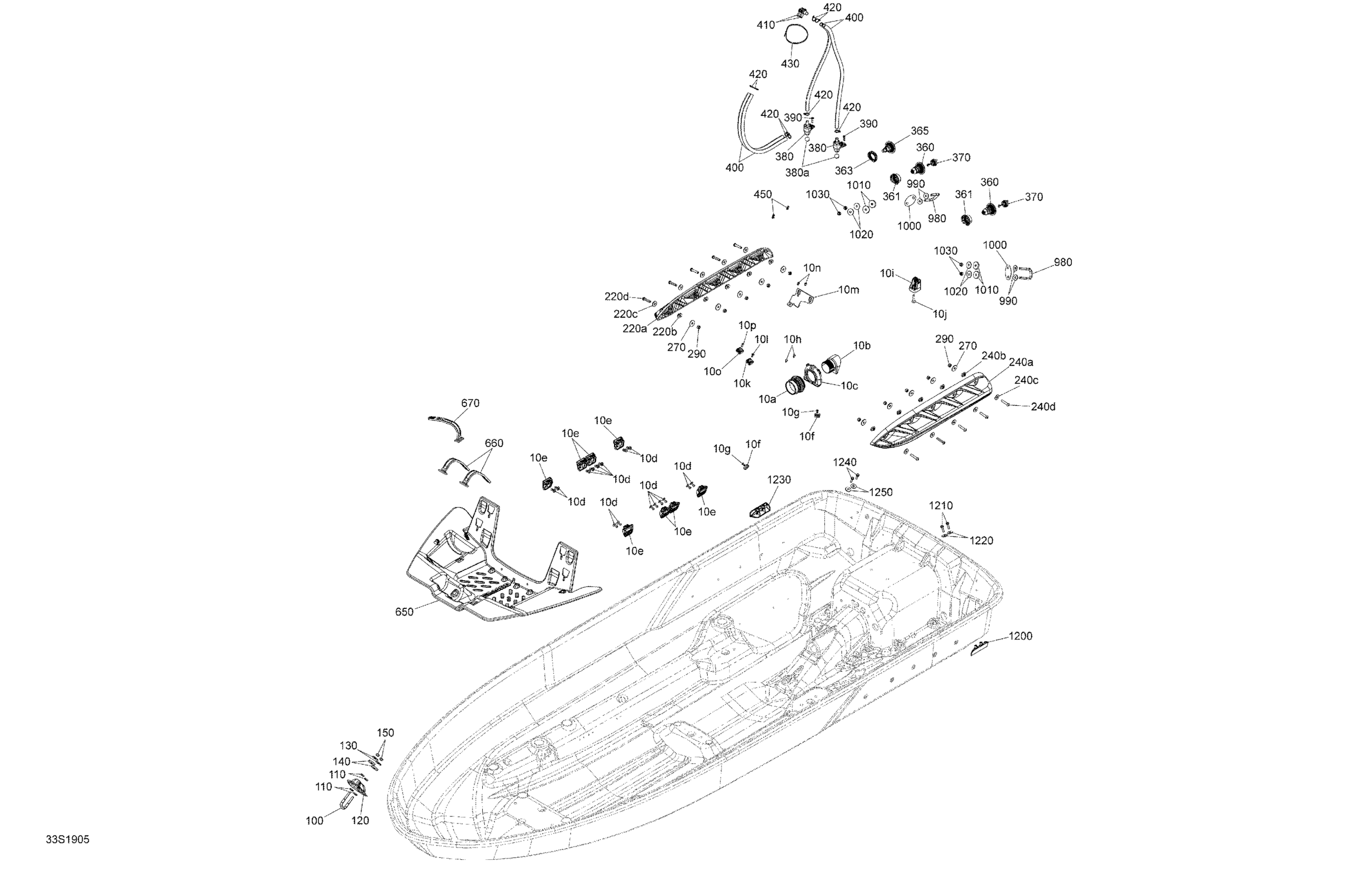

Sea-doo GTR 230, 2019 Hull Diagram

#

Description
Price

10a

Hull Insert

293450340

$24.60

10b

Hull Insert

293450335

$18.63

10c

Hull Insert

293450356

$8.21

10d

Pop Rivet 3/16"

293150123

$3.94

10e

Strap Retaining

270000933

$6.28

10f

Tie Rap Mount

293750026

$2.76

10g

Avdel Rivet 3/16"

293150037

$0.54

10h

Dart

293730062

$1.87

10i

Strap Anchor

270000988

$8.06

10j

Hexagonal Cap Screw M6 X35

250000399

$4.15

10k

Strap Anchor

270000854

$6.09

10l

Pop Rivet 3/16"

293150043

$1.85

10m

Strap Anchor

270001000

$13.48

10n

Pop Rivet 3/16"

293150043

$1.85

10o

Strap Anchor

270000854

$6.09

10p

Pop Rivet 3/16"

293150043

$1.85

100

U-Clamp

292000933

$37.28

110

Flat Washer M8.5 x 18

293050001

$1.48

120

Black Shell

292001837

$17.13

130

Flat Washer 8 mm, Stainless

250200175

$1.48

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$1.48

220a

RH Sponson

292001878

$83.55

220b

Spacer Sponson

292001349

$9.84

220c

Flat Washer 8 mm, Stainless

234082600

$2.27

220d

Torx Screw M8 X 40, Stainless

250000452

$3.73

240a

LH Sponson

292001877

$83.55

240b

Spacer Sponson

292001349

$9.84

240c

Flat Washer 8 mm, Stainless

234082600

$2.27

240d

Torx Screw M8 X 40, Stainless

250000452

$3.73

270

Flat Washer 8 mm, Stainless

250200175

$1.48

290

Hex. Elastic Nut M8 Brass

232581200

$1.48

360

Drain Ass'y

292001580

$14.76

361

Bushing

292001371

$14.43

363

Plastic Nut

292001825

$7.31

365

Drain Neck Ass'y

292001317

$24.60

370

Plug Ass'y | Includes 300f to 300f2

292002022

$12.79

380>380a

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$23.10

380a

Floating Ball

293830080

$6.39

390

Hex. Screw 10-14 X 7/8”

211000023

$3.34

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$6.82

410

Fitting Elbow 90°

293710152

$17.13

420

Tie Wrap 94 mm | 4X4

293750001

$0.96

430

Tie Wrap 368 mm

293750008

$0.97

450

Avdel Rivet 3/16"

293150037

$0.54

650

Trunk Shield

292001868

$39.52

660

Strap

269502417

$16.39

670

Strap

269502417

$16.39

980

U-Clamp

292000933

$37.28

990

Flat Washer

279000336

$9.58

1000

Black, Finition Plate

291001386

$9.84

1010

Rubber Washer

293830037

$2.68

1020

Flat Washer 8 mm, Stainless

250200175

$1.48

1030

Hex. Elastic Nut M8 Brass

232581200

$1.48

1200

LH Trim Tab

292001811

$16.39

1210

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.67

1220

Flat Washer 8 mm, Stainless

234082600

$2.27

1230

RH Trim Tab

292001812

$16.39

1240

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.67

1250

Flat Washer 8 mm, Stainless

234082600

$2.27
