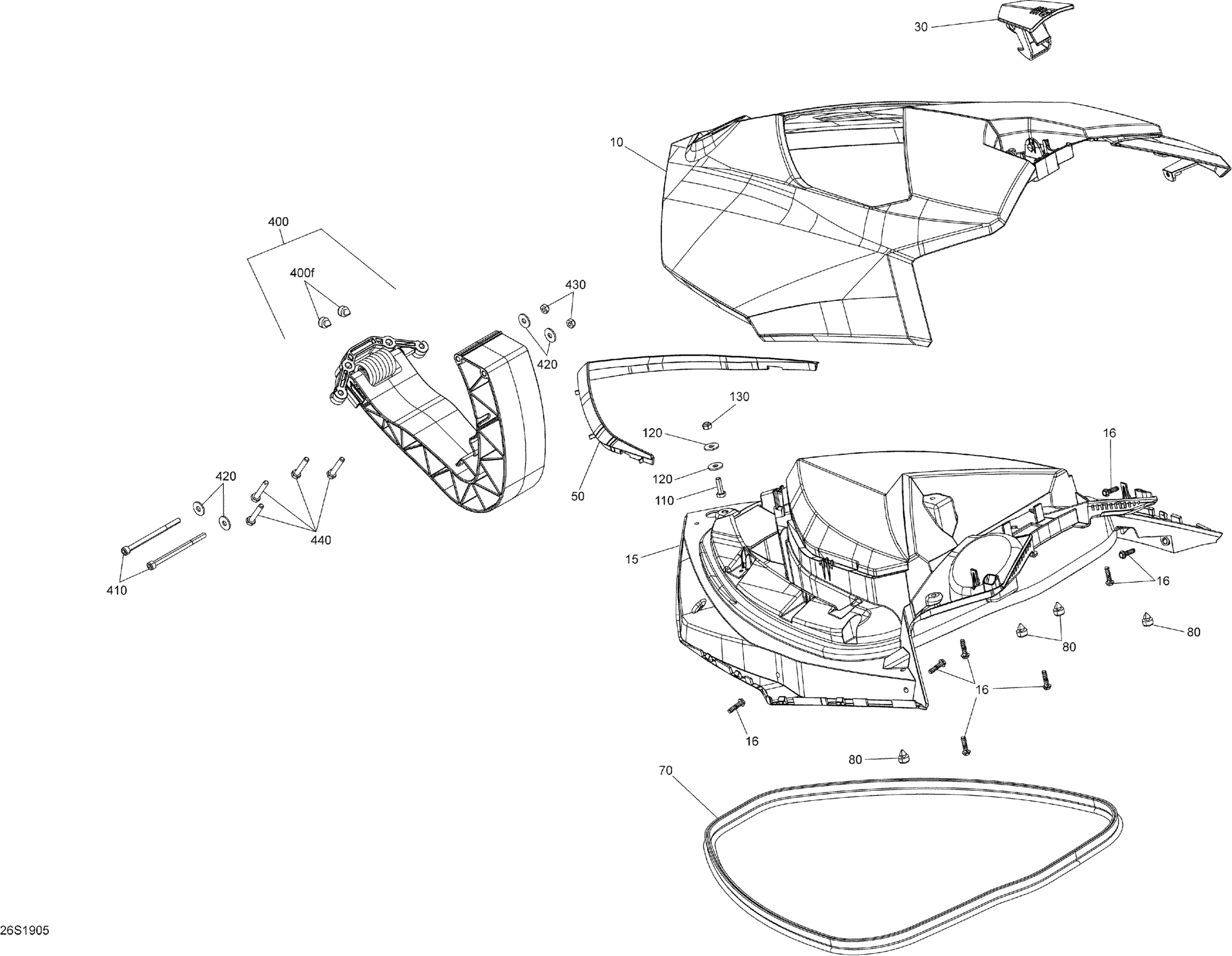

Sea-doo GTR 230, 2019 Front Cover Diagram

#

Description
Price

10

Black, Central Storage Cover

269502193

$264.99

11

Deep Black, LH Storage Cover

269502328

$179.99

12

Deep Black, RH Storage Cover

269502329

$179.99

13

Avdel Rivet

293150027

$2.49

14

Flat Washer 5 mm

234051500

$0.73

15

Deep Black, Storage Cover Lower

269502196

$109.99

16

Hex. Flange Screw K50 X 20

241152060

$1.99

20

Black Tinted 45%, Deflector | Model Dragon Red

269502220

$61.99

23

Flange Torx Screw K40 X 16

250000287

$2.11

30

Deep Black, Latch Lever

269700142

$30.99

50

Deep Black, Front Cosmetic

269501869

$86.99

55

Support Front Deflector, Neon Yellow

269502330

$48.99

60

Black, Clamp

269501941

$9.80

70

Neoprene Seal 3000Mm Long

219704371

$51.99

80

Rubber Bumper

293830005

$8.09

90

Avdel Rivet

293150027

$2.49

100

Torx-Truss M/S Stlss M6 X 20

250000829

$3.35

110

Hex. Forming Screw M6 X 20

207162060

$1.29

120

Flat Washer M6, Stainless

234062600

$0.77

130

Elastic Stop Nut M6, Brass

232561200

$4.23

400

Hinge Ass'y | Includes 400 TO 400f

269501995

$64.99

400f

Rubber Bumper

293830005

$8.09

410

Socket Head Screw M6 X 90

205069060

$2.30

420

Flat Washer M6, Stainless

234062600

$0.77

430

Elastic Stop Nut M6, Brass

232561200

$4.23

440

Socket Head Screw M6 X 25

205062560

$1.69
