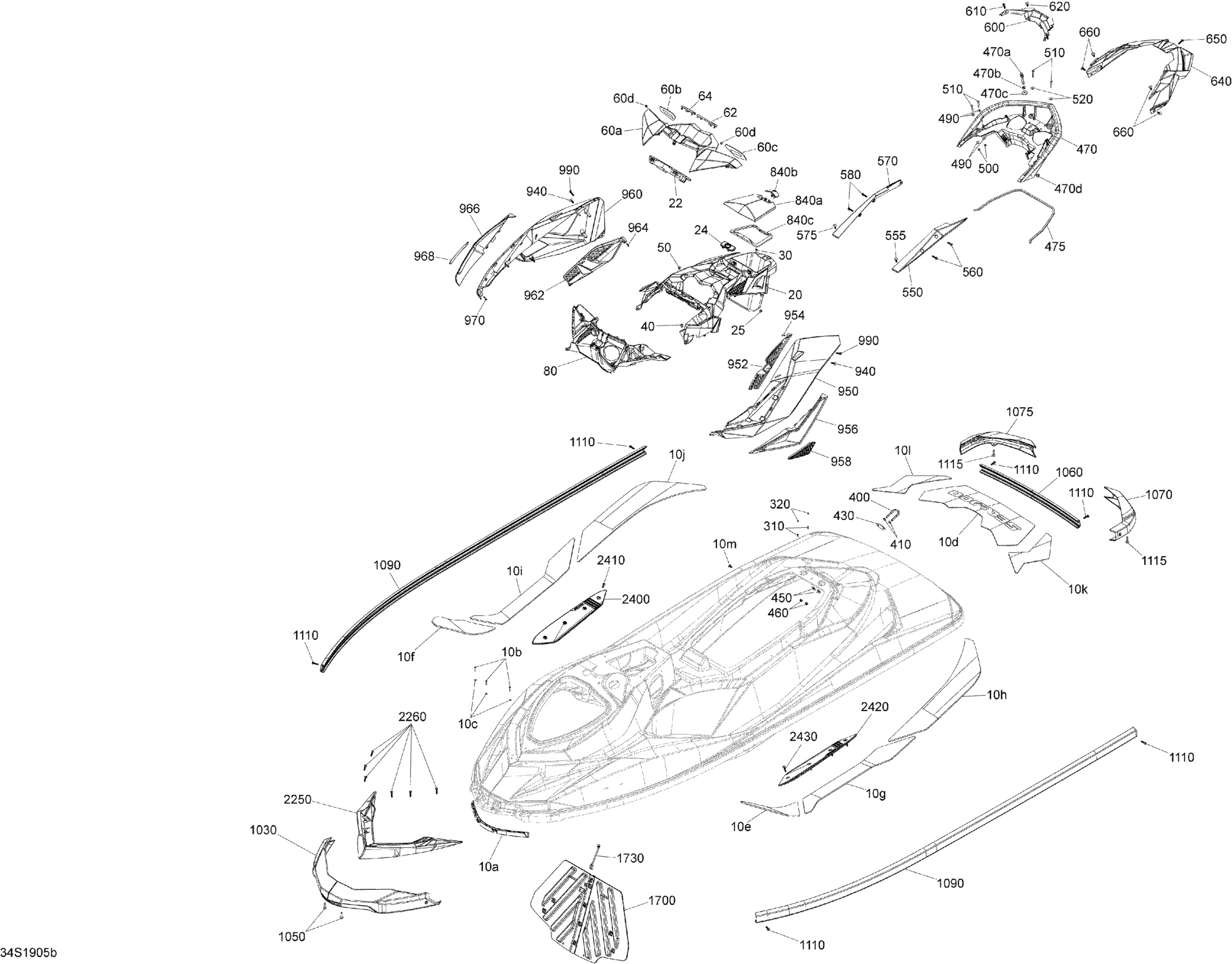

Sea-doo GTR 230, 2019 Body - Package X Diagram

Deck Nose

291003897

$15.64

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer 4 mm, Stainless

234042600

$1.06

Platform Carpet

291003586

$66.39

Front Carpet LH

291003587

$32.81

Front Carpet RH

291003588

$32.81

Center Front Carpet LH

291003589

$43.25

Rear Center Carpet LH

291003577

$43.25

Center Front Carpet RH

291003591

$43.25

Rear Center Carpet RH

291003578

$43.25

Rear Carpet LH

291003593

$14.82

Rear Carpet RH

291003594

$14.82

Black, Dart

293730011

$0.91

Black, Console

291004654

$112.66

Deep Black, Display Adaptor

291004655

$5.60

Deep Black, Console Cap

291004718

$13.99

Black, Dart

414644300

$0.90

Rubber Bumper

293830005

$6.12

Pop Rivet 3/16"

293150123

$3.94

Pop Rivet 3/16

293150186

$1.87

Deep Black, Gauge Bezel

291004657

$38.78

Mirror RH, With Double-Face Tape

291003090

$44.75

Mirror LH, With Double-Face Tape

291003091

$44.75

Rubber Bumper

293830005

$6.12

Deep Black, LH Trim Gauge

705012349

$4.99

Deep Black, RH Trim Gauge

705012351

$4.99

Deep Black, Mirror Support

291004271

$44.00

Rivet 1/8"

293150016

$0.33

Black, Snap Cap

293000014

$0.97

U-Clamp

292000933

$37.28

Flat Washer M8.5 x 18

293050001

$1.48

Black, Finition Plate

291001386

$9.84

Flat Washer 8 mm, Stainless

234082600

$2.27

Hex. Elastic Nut M8 Brass

232581200

$1.48

Black, Rear Handle Ass'y | Includes 470 TO 470e

291004620

$87.28

Stud Seat

291003877

$44.00

Hex. Jam Nut M10

232100600

$2.12

Flat Washer 10 mm, Stainless

234002600

$2.12

Elastic Stop Nut M10, Brass

232501200

$2.48

Gasket

292002523

$8.64

Flat Washer M6, Stainless

234062600

$0.73

Elastic Stop Nut M6, Brass

232561200

$4.03

Hex. Screw M6 X 40

207164060

$3.15

Flat Washer M6.6 X 22

250200022

$2.15

Black, Trim Passenger Handle LH | Model Jungle Green

291004989

$24.60

Black, Dart

293730006

$0.93

Screw Torx M6.81 X 30

250001007

$1.85

Black, Trim Passenger Handle RH | Model Jungle Green

291004990

$24.60

Black, Dart

293730006

$0.93

Screw Torx M6.81 X 30

250001007

$1.85

Deep Black, Vent Cover

291003372

$15.64

Screw Torx M6.81 X 30

250001007

$1.85

Black, Dart

293730006

$0.93

Deep Black, Cosmetic Rear

291004365

$49.22

Screw Torx M6.81 X 30

250001007

$1.85

Black, Dart

293730006

$0.93

Deep Black, Glove Box Door

291004579

$40.27

Black, Latch

264000164

$13.09

Urethane Seal

293250265

$14.43

Black, Dart

293730006

$0.93

Black, Side Cosmetic LH | Model Jungle Green

291004504

$231.31

Black, LH Side Grille

291003348

$24.60

Flange Torx Screw K40 X 16

250000287

$2.00

Yellow, LH Front Cosmetic

291004742

$44.00

Deep Black, LH Front Hood Grille | Model Dragon Red

291003343

$11.37

Deep Black, RH Side Cosmetic | Model Jungle Green

291004506

$325.34

Deep Black, RH Side Grille

291003349

$24.60

Flange Torx Screw K40 X 16

250000287

$2.00

Yellow, RH Front Cosmetic

291004743

$44.00

Deep Black, RH Front Hood Grill | Model Dragon Red

291003344

$11.37

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Screw Torx M6.81 X 30

250001007

$1.85

Front Bumper This part replaces 291005401.

291004277

$70.87

Hexagonal Cap Screw M6 X35

250000399

$4.15

Black, Side Bumper

291004451

$54.45

Black, Corner Bumper This part replaces 291004152.

291004278

$29.82

Black, Corner Bumper This part replaces 291004153.

291004279

$29.82

Black, Side Bumper

291004451

$54.45

Screw Torx M6.81 X 30

250001007

$1.85

Hexagonal Cap Screw M6 X35

250000399

$4.15

Divider Ass'y

291004572

$94.00

Holding Strap

269502111

$16.39

Deflector

291004367

$67.88

Screw Torx M6.81 X 30

250001007

$1.85

Footrest

291004317

$68.63

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Footrest

291004319

$68.63

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45
