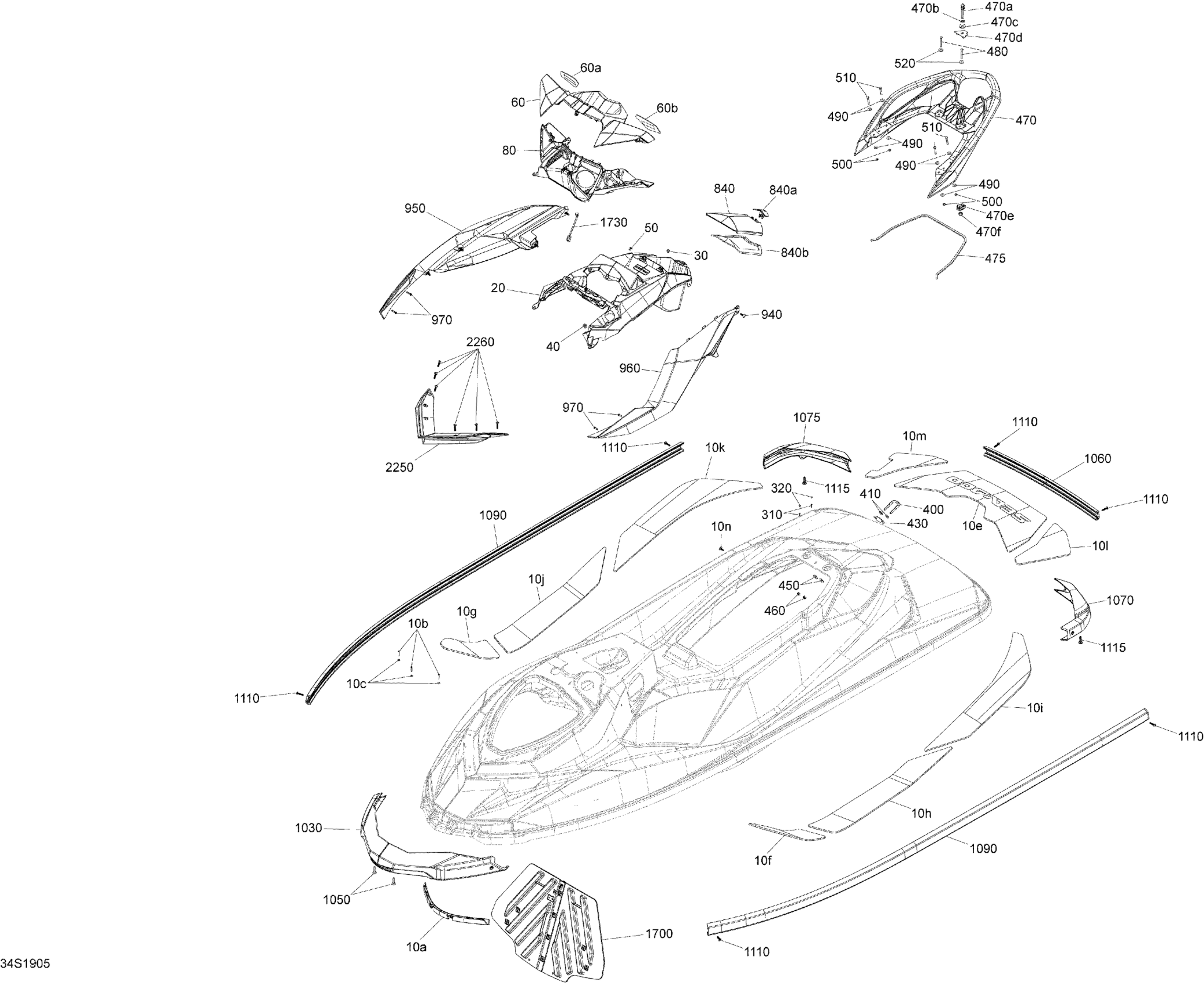

Sea-doo GTR 230, 2019 Body Diagram

#

Description
Price

10a

Deck Nose

291003897

$18.99

10b

Hex. Flange Screw K40 X 25

241142560

$2.64

10c

Flat Washer 4 mm, Stainless

234042600

$1.15

10e

Swim Platform Carpet

291003096

$88.99

10f

Front Carpet LH

291003573

$25.99

10g

Front Carpet RH

291003574

$25.99

10h

Front Center Carpet LH

291003575

$39.99

10i

Rear Center Carpet LH

291003577

$46.49

10j

Front Center Carpet RH

291003576

$39.99

10k

Rear Center Carpet RH

291003578

$46.49

10l

Rear Carpet LH

291003062

$20.49

10m

Rear Carpet RH

291003063

$20.49

10n

Black, Dart

293730011

$0.99

20

Console

291004276

$134.99

30

Rubber Bumper

293830005

$8.09

40

Pop Rivet 3/16"

293150123

$4.29

50

Pop Rivet 3/16

293150186

$2.09

60>60b

Gulfstream Blue Bezel Ass'y | Includes 60 TO 60b

291004488

$119.99

60a

Mirror RH, With Double-Face Tape

291003090

$48.49

60b

Mirror LH, With Double-Face Tape

291003091

$48.49

80

Deep Black, Mirror Support

291004271

$48.99

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

400

U-Clamp

292000933

$59.49

410

Flat Washer M8.5 x 18

293050001

$3.07

430

Black, Finition Plate

291001386

$10.99

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

470>470f

Black, Rear Handle Ass'y

291004625

$142.99

470a

Stud Seat

291003877

$48.99

470b

Hex. Jam Nut M10

232100600

$2.22

470c

Flat Washer 10 mm, Stainless

234002600

$2.22

470d

Seat Stud Spacer

269002125

$8.19

470e

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

$8.19

470f

Elastic Stop Nut M10, Brass

232501200

$2.64

475

Gasket 3000Mm Long

219704378

$26.49

480

Hex. Screw M6 X 50

207065060

$2.22

490

Flat Washer M6, Stainless

234062600

$0.77

500

Elastic Stop Nut M6, Brass

232561200

$4.23

510

Hex. Screw M6 X 40

207164060

$3.38

520

Flat Washer M6.6 X 22

250200022

$2.72

840>840b

Deep Black, Glove Door Ass'y | Includes 840 TO 840c

269502140

$65.99

840a

Black, Latch

264000164

$15.99

840b

Gasket

293250236

$41.49

940

Black, Dart

293730006

$0.99

950

Blue RH Cosmetic Panel

269502284

$194.99

960

Blue LH Cosmetic Panel

269502285

$194.99

970

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1030

Front Bumper This part replaces 291005401.

291004277

$76.49

1050

Hexagonal Cap Screw M6 X35

250000399

$4.44

1060

Black, Side Bumper

291004451

$58.49

1070

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

1075

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

1090

Black, Side Bumper

291004451

$58.49

1110

Screw Torx M6.81 X 30

250001007

$2.54

1115

Hexagonal Cap Screw M6 X35

250000399

$4.44

1700

Divider Ass'y

291004572

$104.99

1730

Holding Strap

269502111

$18.49

2250

Deep Black, Body Deflector

291004273

$26.99

2260

Screw Torx M6.81 X 30

250001007

$2.54
