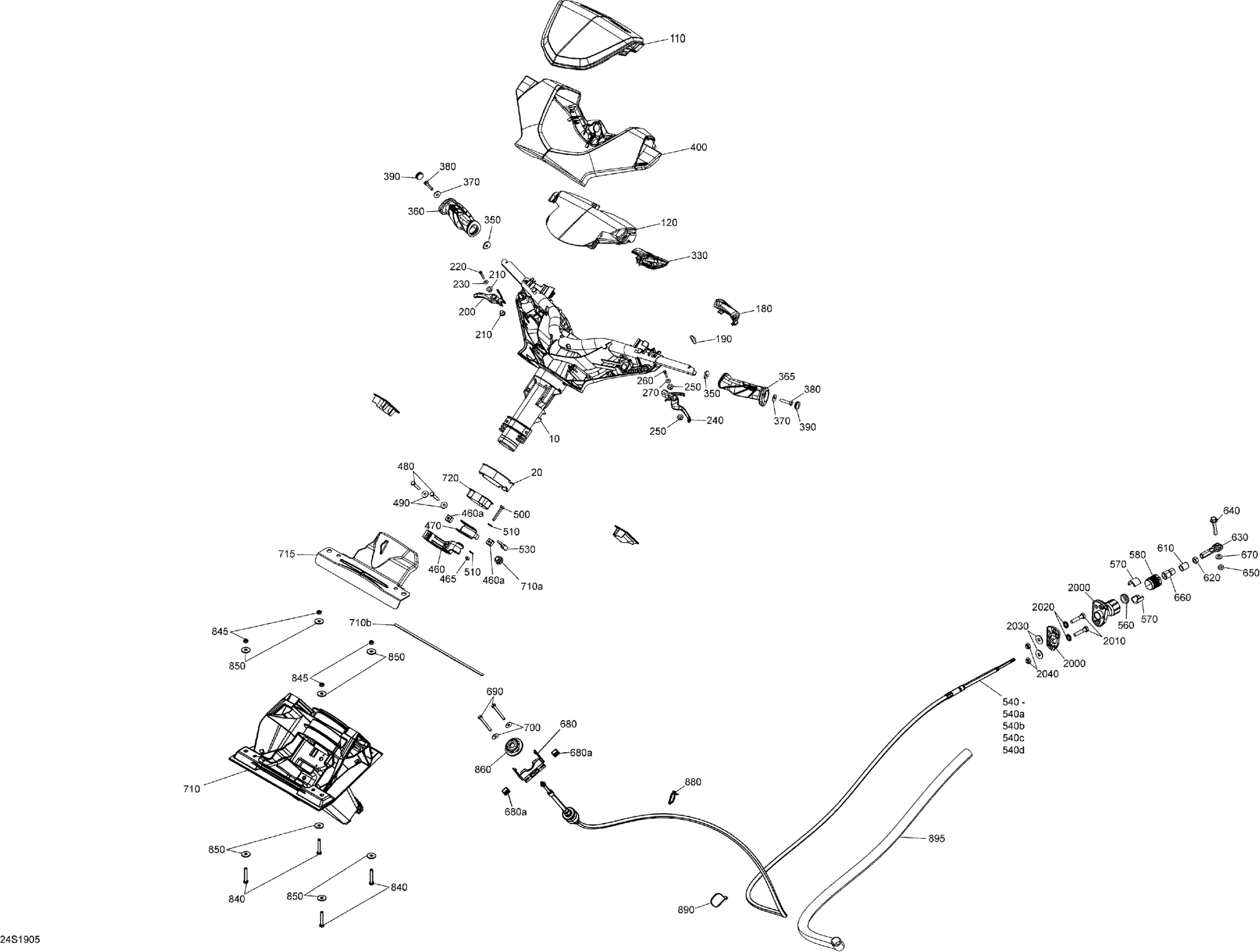

Sea-doo GTR 230, 2019 Steering Diagram

#

Description
Price

10

Steering Column

277001963

$381.49

20

Wear Ring

277001653

$12.17

110

Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach

277001904

$57.99

120

Handlebar Foam

277001921

$91.99

180

Housing Cover LH

277001626

$19.99

190

Red, Knob Switch

277001887

$9.69

200

Throttle Handle

277001944

$38.99

210

Bushing

293900091

$4.52

220

Hex. Flange Screw K40 X 25

241142560

$2.64

230

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

250

Bushing

293900091

$4.52

260

Hex. Flange Screw K40 X 25

241142560

$2.64

270

Flat Washer 4 mm, Stainless

234042600

$1.15

330

Housing Cover RH

277001755

$22.49

350

Insert Grip Handle

277001863

$8.83

360

Deep Black, RH Handle Grip

277001946

$20.99

365

Deep Black, LH Handle Grip

277001958

$20.99

370

Flat Washer M6, Stainless

234062600

$0.77

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

390

Black, Cap

277000203

$9.39

400

Steering Cover | IBR

277001969

$68.99

460>460a

Support Ass'y | Includes 460 to 460b

277002179

$22.49

460a

Elastic Stop Nut M6, Brass

232561200

$4.23

465

Elastic Stop Nut M6, Brass

232561200

$4.23

470

Spacer

277001654

$15.99

480

Hex. Screw M6 X 35

207163560

$1.49

490

Flat Washer M6, Stainless

234062600

$0.77

500

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540>540d

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$211.99

540a

Ajustment Knob

277000782

$22.99

540b

Hex. Nut 1/4"-28

211100056

$0.69

540c

Wiper Rod

277001582

$11.11

540d

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Half Ring

277001527

$10.37

580

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

610

Wiper Rod

277001582

$11.11

620

Hex. Nut 1/4"-28

211100056

$0.69

630

Ball Joint

277000775

$51.99

640

Hex. Screw M6 X 35

207663560

$2.00

650

Elastic Stop Nut M6, Brass

232561200

$4.23

660

End Piece

277001583

$14.49

670

Stainless Flat Washer M6

234061600

$0.33

680>680a

Thrust Support Ass'y

277001655

$28.99

680a

Elastic Stop Nut M6, Brass

232561200

$4.23

690

Hex. Screw M6 X 50

207165060

$0.92

700

Flat Washer M6, Stainless

234062600

$0.77

710>710b

Support Ass'y | Includes 710 TO 710e

277001971

$114.99

710a

Cap

517302716

$4.69

710b

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

715

Deflector

293000116

$28.99

720

Wear Ring

277002318

$15.99

840

Hex. Screw M6 X 40

207164060

$3.38

845

Elastic Stop Nut M6, Brass

232561200

$4.23

850

Flat Washer M6.6 X 22

250200022

$2.72

860

Cable Grommet

293720090

$8.49

880

Tie-Rap 180 mm

414115200

$0.11

890

Tie Wrap 368 mm

293750008

$1.04

895

Shield Corrugated 22MM - 1100MM

276000470

$26.49

2000

Cable Adaptor Ass'y

277001881

$19.99

2010

Hex. Screw M6 X 30

207063060

$1.89

2020

Sealing Washer

250200114

$4.44

2030

Flat Washer M6, Stainless

234062600

$0.77

2040

Elastic Stop Nut M6, Brass

232561200

$4.23
