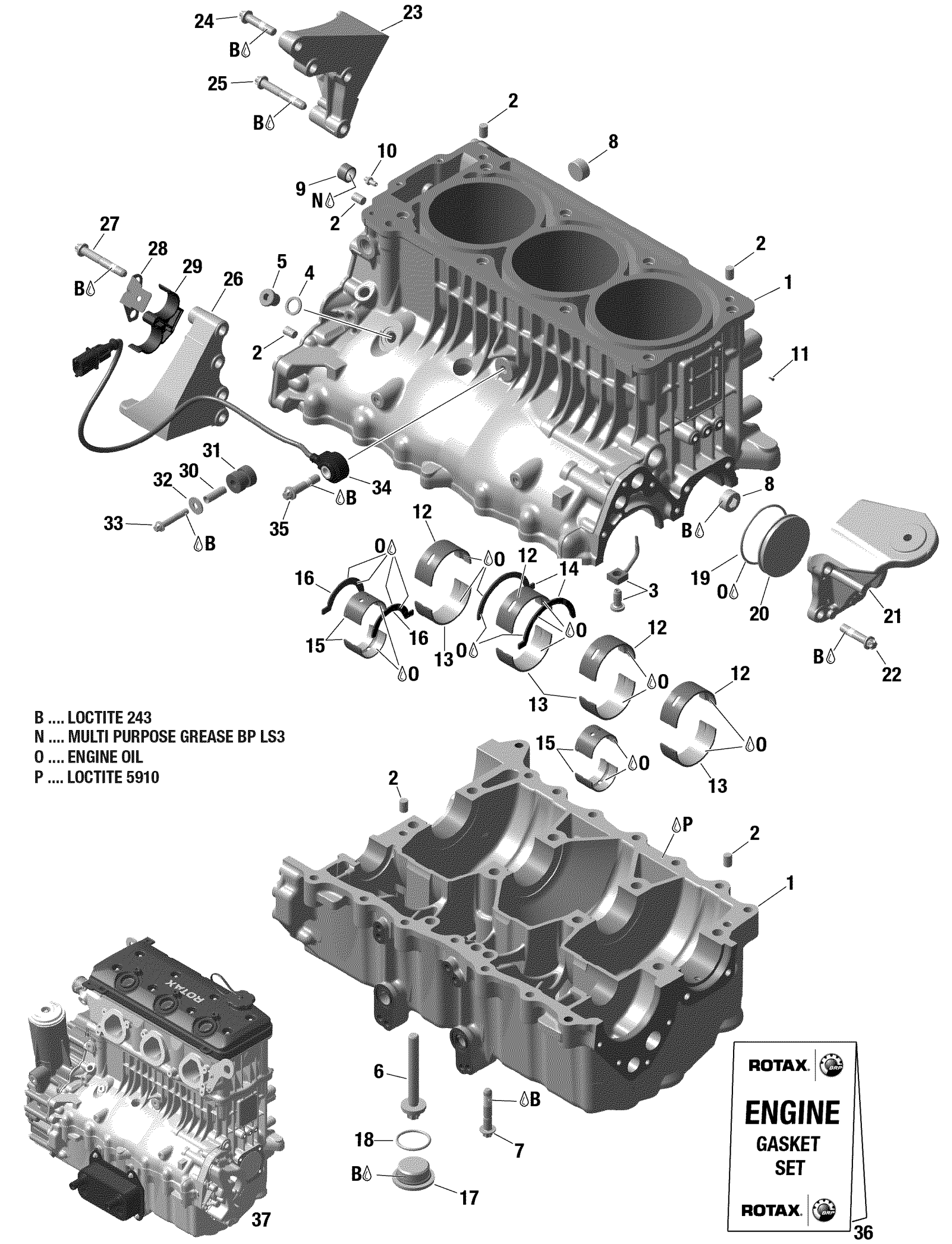

Sea-doo GTR 230, 2019 Engine Block Diagram

#

Description
Price

1>10

Cylinder Block 1503

420893585

$2,570.87

2

Center Pin 8 X 12

420632010

$3.52

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$26.09

4

Aluminum Sealing Ring

420250016

$5.06

5

Plug Screw M12

420841923

$14.90

6

Torx Flange Screw M10 X 82

420641120

$7.01

7

Hex. Flange Screw M8 X 45

420641208

$7.09

8

Plug Screw M20 X 1.5

420641317

$12.15

9

Needle Bushing

420232482

$17.88

10

Oil Spraying Jet

420456431

$28.33

11

Grooved Pin

420249073

$1.79

12

Plain Half-Bearing

420933456

$13.90

13

Plain Half-Bearing

420933466

$13.90

14

Half-Ring

420933475

$10.76

15

Plain Bearing Half

420933442

$17.13

16

Half-Ring

420933470

$7.01

17>18

Plug Screw M30 X 1.5

420641171

$17.88

18

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$9.03

19

O-Ring

420430405

$13.18

20

Plug Cover

420660110

$7.01

21

Front Engine Bracket

420811794

$46.24

22

Torx Flange Screw M8 X 35

420641188

$7.01

23

Engine Bracket PTO, Exhaust

420811788

$66.39

24

Torx Flange Screw M8 X 35

420641188

$7.01

25

Torx Flange Screw M8 X 55

420641213

$7.01

26

Engine Bracket PTO, Exhaust

420811784

$62.66

27

Torx Flange Screw M8 X 55

420641213

$7.01

28

Retaining Plate

420851740

$17.88

29

Hose Bracket

420660290

$14.90

30

Spacer

420847971

$6.99

31

Rubber Bracket

420660090

$3.88

32

Flat Washer M6

420827968

$1.79

33

Torx Flange Screw M6 X 35

420641258

$3.19

34

Noise Sensor

420664031

$58.18

35

Torx Flange Screw M8 X 35

420641188

$7.01

36

Engine Gasket Set

420889776

$454.45

37

Engine Long Block, 1503

420150333

$3,999.99

37

Engine Long Block, 1503

420150333

$3,999.99
