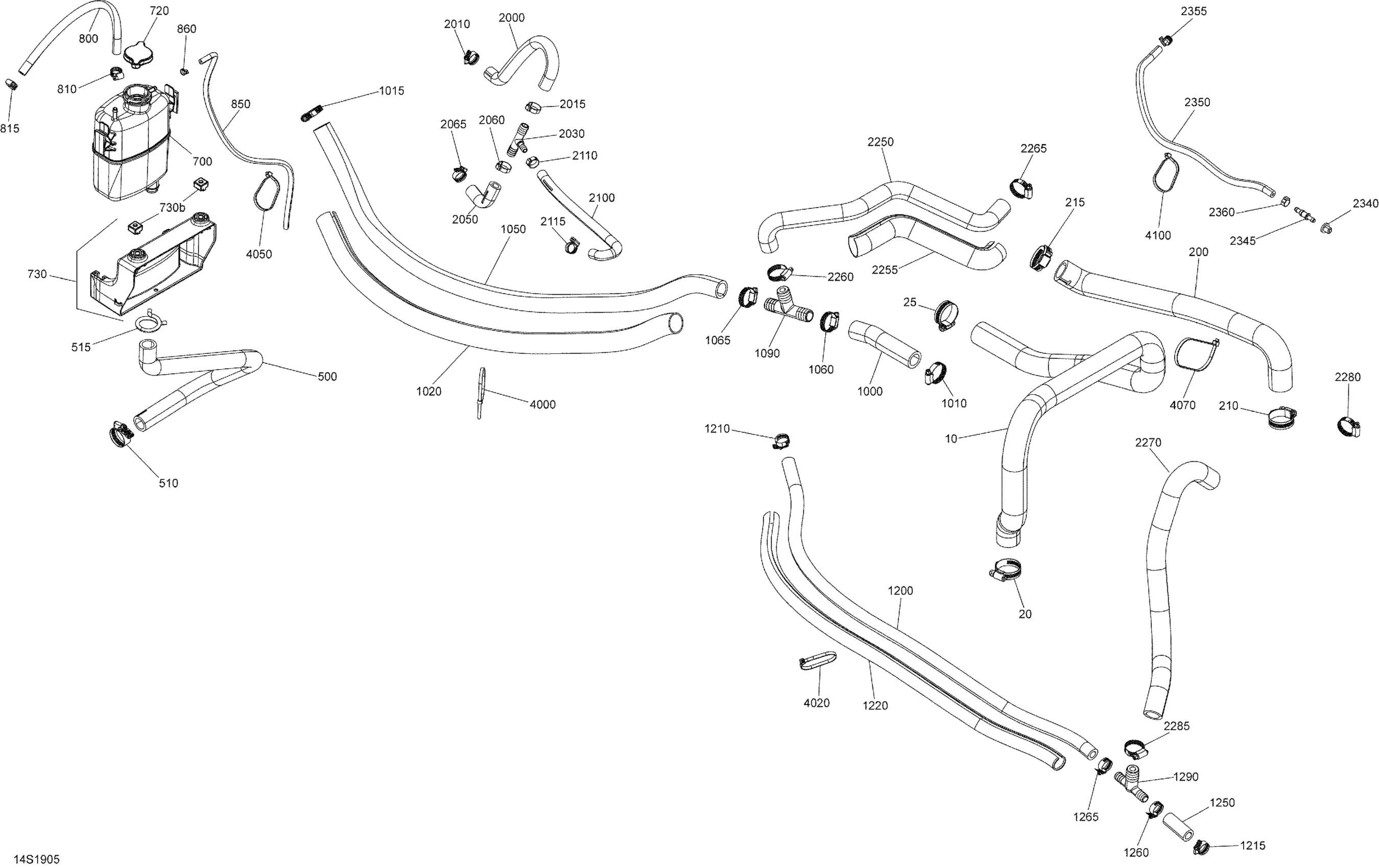

Sea-doo GTR 230, 2019 Cooling System Diagram

#

Description
Price

10

Radiator Hose, LH

276000459

$61.16

20

Norma Clamp

293650245

$13.51

25

Norma Clamp

293650245

$13.51

200

RH Radiator Hose

276000248

$52.21

210

Norma Clamp

293650245

$13.51

215

Norma Clamp

293650245

$13.51

500

Hose, Coolant Tank Lower

276000486

$26.84

510

Tridon Gear Clamp

293650019

$5.52

515

Spring Clamp

293650115

$2.82

700

Coolant Tank

276000086

$100.72

720

Pressure Cap | Includes 720 to 720a

276000100

$23.85

730

Tank Holder Ass'y | Includes 730 TO 730a

291004446

$25.34

730b

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

810

Gear Clamp

293650287

$2.00

815

Gear Clamp

293650287

$2.00

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

860

Tie Wrap 94 mm | 4X4

293750001

$0.96

1000

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1010

Gear Clamp

293650284

$4.15

1015

Gear Clamp

293650284

$4.15

1020

Tubing 25 MM 1000MM Long

219704402

$14.57

1050

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1060

Gear Clamp

293650284

$4.15

1065

Gear Clamp

293650284

$4.15

1090

T-Fitting

293710131

$14.43

1200

Was 276000001 Hose 12.5 mm

219704394

$49.22

1210

Clamp Gear

293650285

$3.07

1215

Clamp Gear

293650285

$3.07

1220

Was 515175319 Tubing 22 mm

219704423

$13.60

1250

Was 276000001 Hose 12.5 mm

219704394

$49.22

1260

Clamp Gear

293650285

$3.07

1265

Clamp Gear

293650285

$3.07

1290

T-Fitting

293710132

$10.88

2000

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$17.88

2010

Clamp Gear

293650285

$3.07

2015

Oetiker Clamp

293650012

$5.67

2030

T-Fitting

293710116

$16.39

2050

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$17.88

2060

Oetiker Clamp

293650012

$5.67

2065

Clamp Gear

293650285

$3.07

2100

Formed Hose | Without Catalyst

276000246

$17.13

2110

Oetiker Clamp | Europe

293650030

$4.96

2115

Clamp Gear

293650285

$3.07

2250

Formed Hose

276000422

$22.36

2255

Tubing 25 MM 1000MM Long

219704402

$14.57

2260

Gear Clamp

293650284

$4.15

2265

Gear Clamp

293650284

$4.15

2270

Formed Hose | Includes 2270 to 2270a This part replaces 276000461.

276000423

$30.57

2280

Gear Clamp

293650284

$4.15

2285

Gear Clamp

293650284

$4.15

2340

Grommet

293720029

$1.30

2345

Male Connector

414518500

$4.01

2350

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

2355

Gear Clamp

293650287

$2.00

2360

Oetiker Gear Clamp

293650025

$2.82

4000

Tie Wrap 368 mm

293750008

$0.97

4050

Tie-Rap 180 mm

414115200

$0.10

4070

Tie Wrap 368 mm

293750008

$0.97

4100

Tie-Rap 180 mm

414115200

$0.10
