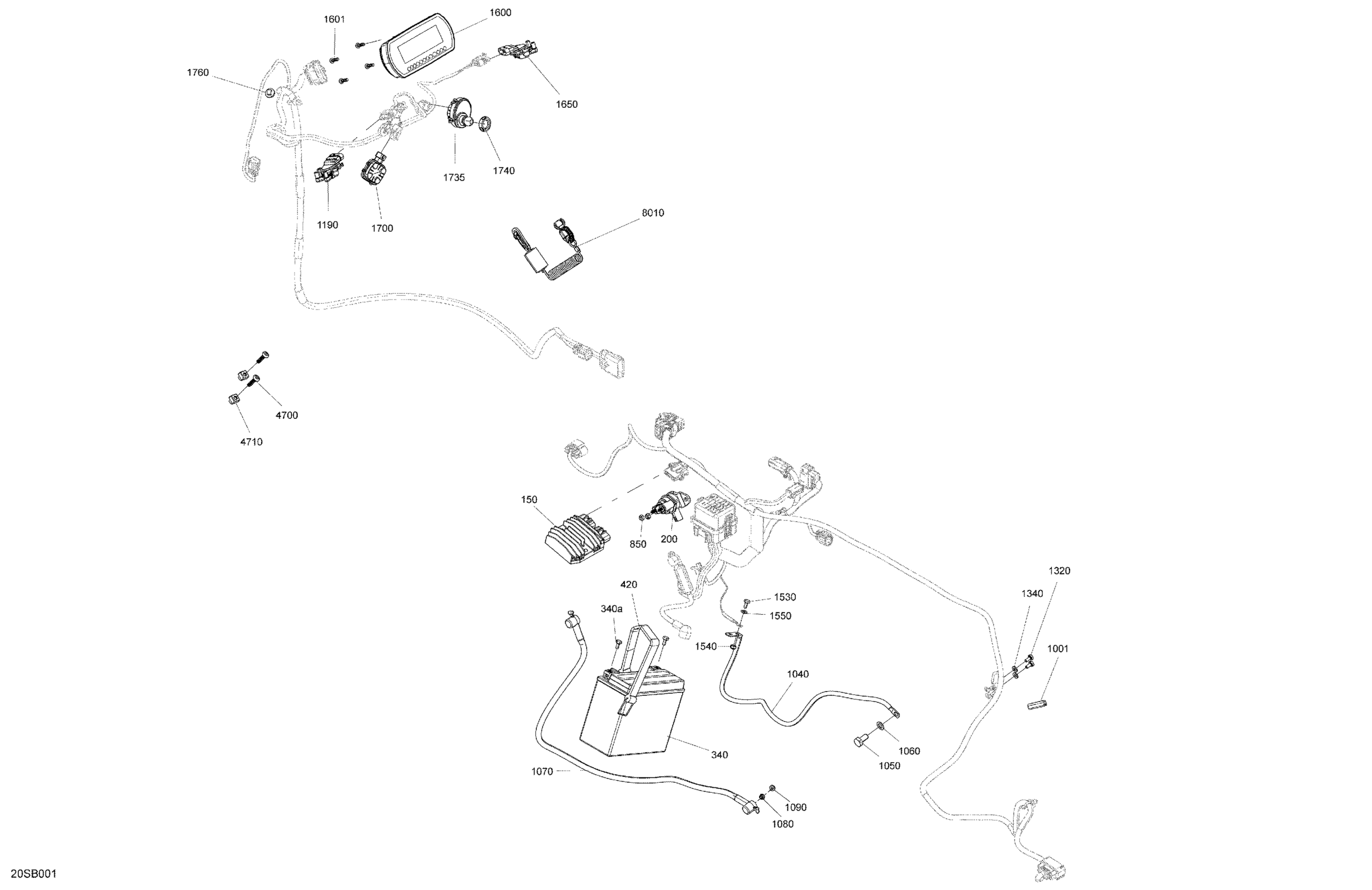

Sea-doo 001 - GTI 90, 2022 08- Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Starter Relay

278003012

$42.49

Battery 12 Volt 18AH

296000449

$92.28

Battery Bolt Kit

250000282

$7.29

Strap

293850141

$20.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Trim 1000Mm Long

219704354

$15.99

Cable Ground

278003795

$38.99

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

Flat Washer 10 mm, Stainless

234000600

$1.46

Cable Positive Pole

278003796

$38.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

LH Throttle Sensor

278002284

$119.99

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Stainless Flat Washer M6

234061600

$0.33

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

Multifunction Mono Compact Gauge

278003430

$599.99

Hex. Flange Screw K50 X 20

241152060

$1.99

Throttle Position Sensor

278002283

$119.99

LH Switch Keypad

278003802

$126.99

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Terminal_Dess One-Wire Open

515179239

Unavailable

Safety Nut (DESS Switch)

278002963

$3.28

Mount Dart

293730040

$1.04

Safety Lanyard Ass'y, RFID

278003400

$84.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Insert

291003793

$3.56
