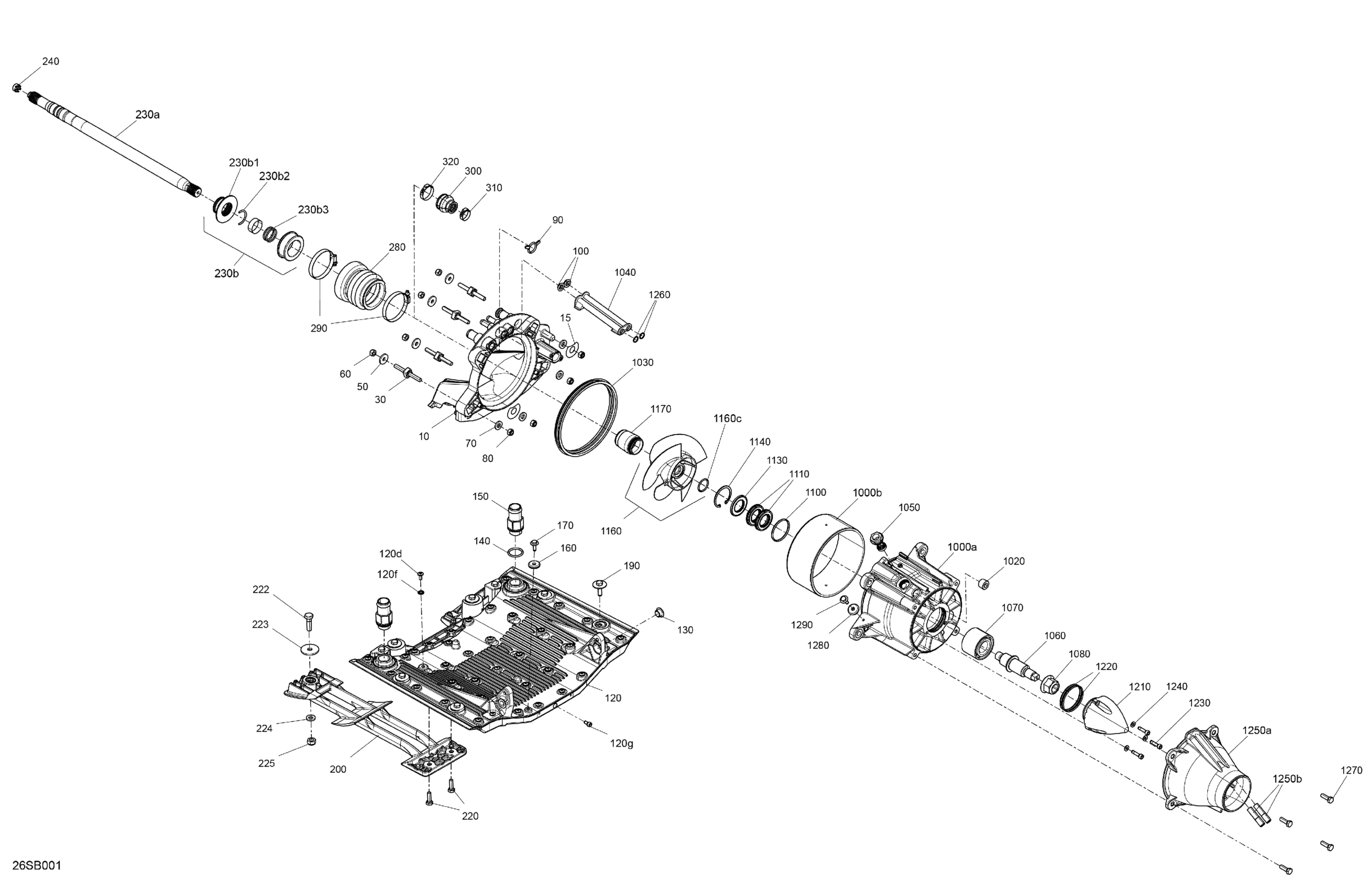

Sea-doo 001 - GTI 90, 2022 04- Drive - Propulsion Diagram
#
10
Pump Support
271001976
$51.99
15
Shim 0.3 mm
272000053
$11.49
30
Square Stud
250300046
$14.82
50
Flat Washer
279000336
$11.57
60
Hex. Elastic Nut M8 Brass
232581200
$2.22
70
Flat Washer M8.5 x 18
293050001
$3.07
80
Hex. Elastic Nut M8 Brass
232581200
$2.22
90
Gasket
271002033
$1.67
100
Watertight Seal
293250084
$7.49
120
KIT PLATE_RIDE ASSY | Includes 120 to 120g This part replaces 271001977.
295501264
$312.49
120d
Torx Screw M6 X 14
250000384
$7.51
120f
Sealing Washer
250200114
$4.44
120g
Socket Drain Plug M6 X 12
250500005
$16.49
130
Venturi Bushing
293900007
$5.45
140
O-Ring
293300121
$8.32
150
Strait Fitting
293710124
$17.39
160
Anode Zinc
271001920
$15.99
170
Hex Screw M6 X 20
250000965
$2.11
190
Hex Sems Screw M8 X 30
250000967
$2.85
200
Intake Grate - Anodized
271002159
$36.99
220
Hex Sems Screw M8 X 25
250000968
$2.85
222
Hexagonal Head Cap Screw M10 X 35
250001159
$1.79
223
Flat Washer
250200194
$5.92
224
Washer Flat M10
250200193
$5.50
225
Elastic Stop Nut M10, Brass
232501200
$2.64
230a
Propeller Shaft
271002208
$412.99
230b
Carbon Ring Kit | Includes 280b to 280b5
295501202
$84.99
230b1
Rotary Ring
271002206
Unavailable
230b2
C-Clip
271001575
$6.11
230b3
O-Ring
293300219
$0.93
240
Drive Shaft Plug
271002113
$11.58
280
Bellow Ass'y
271002194
$24.49
290
Tridon Clamp
293650179
$11.49
300
Protector Sleeve
271002126
$18.49
310
Oeticker Gear Clamp, 25.6-706R
509000442
$5.19
320
Oetiker Gear Clamp, 36.5-706R
509000529
$9.95
1000a
Impeller Housing
271002018
$294.99
1000b
Wear Ring
267000897
$84.99
1020
Black, Plastic Plug
267000469
$7.59
1030
Neoprene Seal
293200087
$12.63
1040
Water Outlet
271000785
$3.80
1050
Plug | Includes 370z to 370z1
267000282
$19.49
1060
Impeller Shaft
267000388
$116.49
1070
Angled Bearing
271002182
$82.49
1080
Elastic Flange Nut M20
250100104
$12.66
1100
O-Ring
293300090
$7.20
1110
Seal
271002071
$33.99
1130
Oil Seal
293200089
$19.99
1140
Circlip
293370038
$8.79
1160
Impeller Assembly | Included 1160 to 1160c
267001046
$391.99
1160c
O-Ring
293300044
$1.05
1170
Guard
271002225
$11.99
1210
Impeller Cover
267000428
$18.49
1220
O-Ring
293300086
$3.59
1230
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
1240
Stainless Flat Washer M6
234061600
$0.33
1250a
Venturi Anodized
271001999
$40.99
1250b
Siphon Tube
271001885
$2.49
1260
O-Ring
293300013
$8.18
1270
Hex Sems Screw M8 X 25
250000968
$2.85
1280
Anode Zinc
271001920
$15.99
1290
Hex Screw M6 X 20
250000965
$2.11
