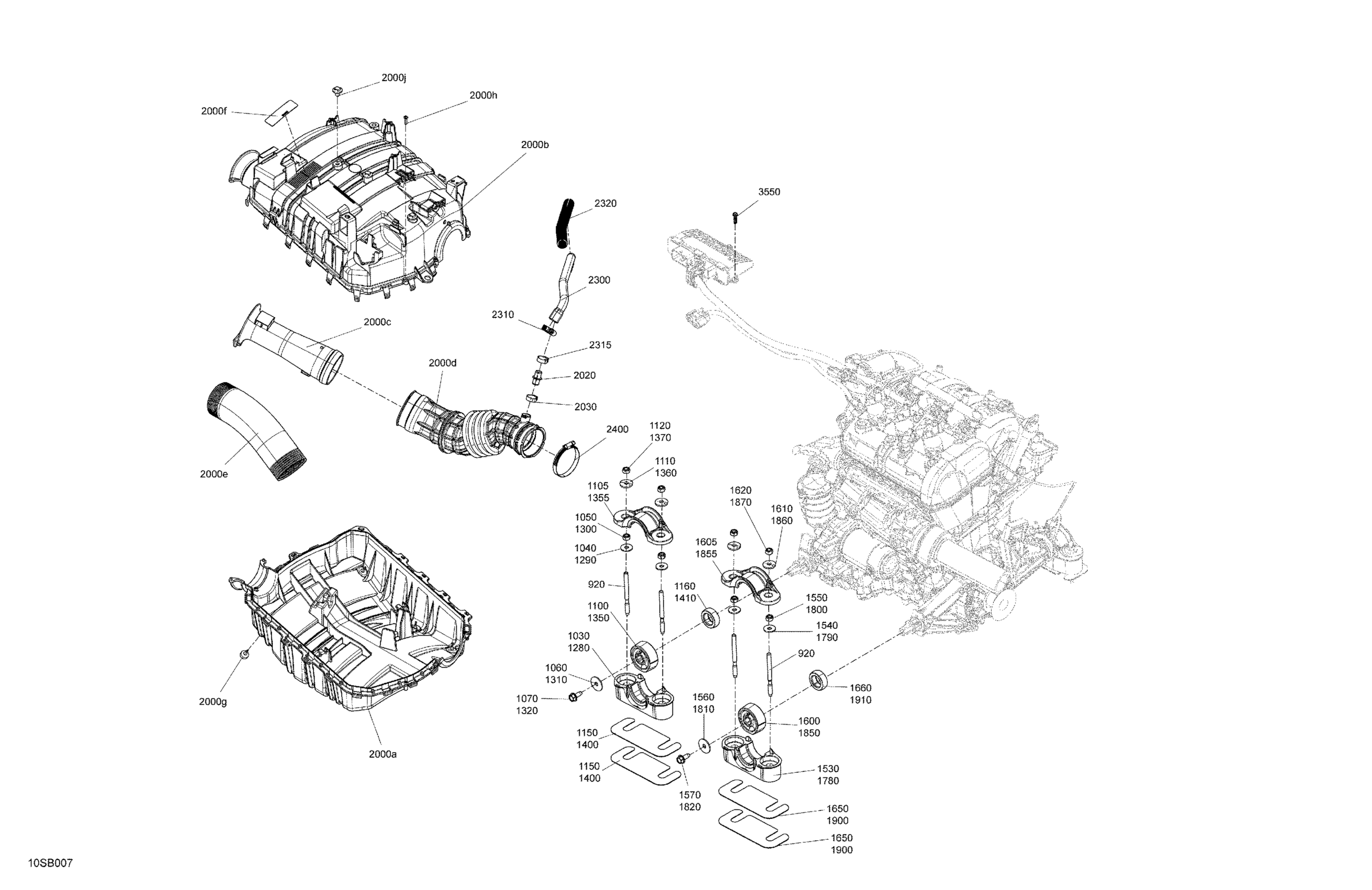

Sea-doo GTI 90, 2022 Engine - System Diagram

#

Description
Price

920

Stud M8 X 1.25 X 70 S.Grip

250300649

$13.67

1030

Mount Base

270000978

$16.87

1040

Flat Washer 8 mm, Stainless

234082600

$1.98

1050

Hex. Elastic Nut M8 Brass

232581200

$1.29

1060

Flat Washer 8 mm

250200130

$2.61

1070

Forming Hex Screw M8 X 20

250000645

$6.36

1100

Rubber Mount

270001097

$17.52

1105

Mount Clamp

270000859

$19.37

1110

Conical Washer

250200137

$4.57

1120

Hex. Elastic Nut M8 Brass

232581200

$1.29

1150

Shim 1.3 mm

270000865

$7.38

1160

Rubber Stopper

270000863

$6.77

1280

Mount Base

270000978

$16.87

1290

Flat Washer 8 mm, Stainless

234082600

$1.98

1300

Hex. Elastic Nut M8 Brass

232581200

$1.29

1310

Flat Washer 8 mm

250200130

$2.61

1320

Forming Hex Screw M8 X 20

250000645

$6.36

1350

Rubber Mount

270001097

$17.52

1355

Mount Clamp

270000859

$19.37

1360

Conical Washer

250200137

$4.57

1370

Hex. Elastic Nut M8 Brass

232581200

$1.29

1400

Shim 1.3 mm

270000865

$7.38

1410

Rubber Stopper

270000863

$6.77

1530

Mount Base

270000978

$16.87

1540

Flat Washer 8 mm, Stainless

234082600

$1.98

1550

Hex. Elastic Nut M8 Brass

232581200

$1.29

1560

Flat Washer 8 mm

250200130

$2.61

1570

Forming Hex Screw M8 X 20

250000645

$6.36

1600

Rubber Mount

270001097

$17.52

1605

Mount Clamp

270000859

$19.37

1610

Conical Washer

250200137

$4.57

1620

Hex. Elastic Nut M8 Brass

232581200

$1.29

1650

Shim 1.3 mm

270000865

$7.38

1660

Rubber Stopper

270000863

$6.77

1780

Mount Base

270000978

$16.87

1790

Flat Washer 8 mm, Stainless

234082600

$1.98

1800

Hex. Elastic Nut M8 Brass

232581200

$1.29

1810

Flat Washer 8 mm

250200130

$2.61

1820

Forming Hex Screw M8 X 20

250000645

$6.36

1850

Rubber Mount

270001097

$17.52

1855

Mount Clamp

270000859

$19.37

1860

Conical Washer

250200137

$4.57

1870

Hex. Elastic Nut M8 Brass

232581200

$1.29

1900

Shim 1.3 mm

270000865

$7.38

1910

Rubber Stopper

270000863

$6.77

2000a

Airbox Base

273000354

$51.46

2000b

Intake Silencer Cover

273000397

$64.90

2000c

Intake Hose

273000358

$20.12

2000d

Hose

273000364

$56.69

2000e

Air Silencer Hose

273000290

$20.12

2000f

Air Silencer Notice Decal

219903177

Unavailable

2000g

Rubber Stopper

708000759

$3.61

2000h

Flange Torx Screw K40 X 16

250000287

$1.74

2000j

Mount Dart

293730040

$0.86

2020

Fitting

270001007

$10.30

2030

Oetiker Clamp

293650011

$2.46

2300

Formed Hose

270000947

$41.76

2310

Tridon Gear Clamp

293650172

$2.68

2315

Oetiker Clamp

293650011

$2.46

2320

Tubing 16 Mm 1000Mm Long

219704408

$6.23

2400

Tridon Clamp

293650179

$8.81

3550

Hex. Flange Screw K50 X 20

241152060

$1.57
