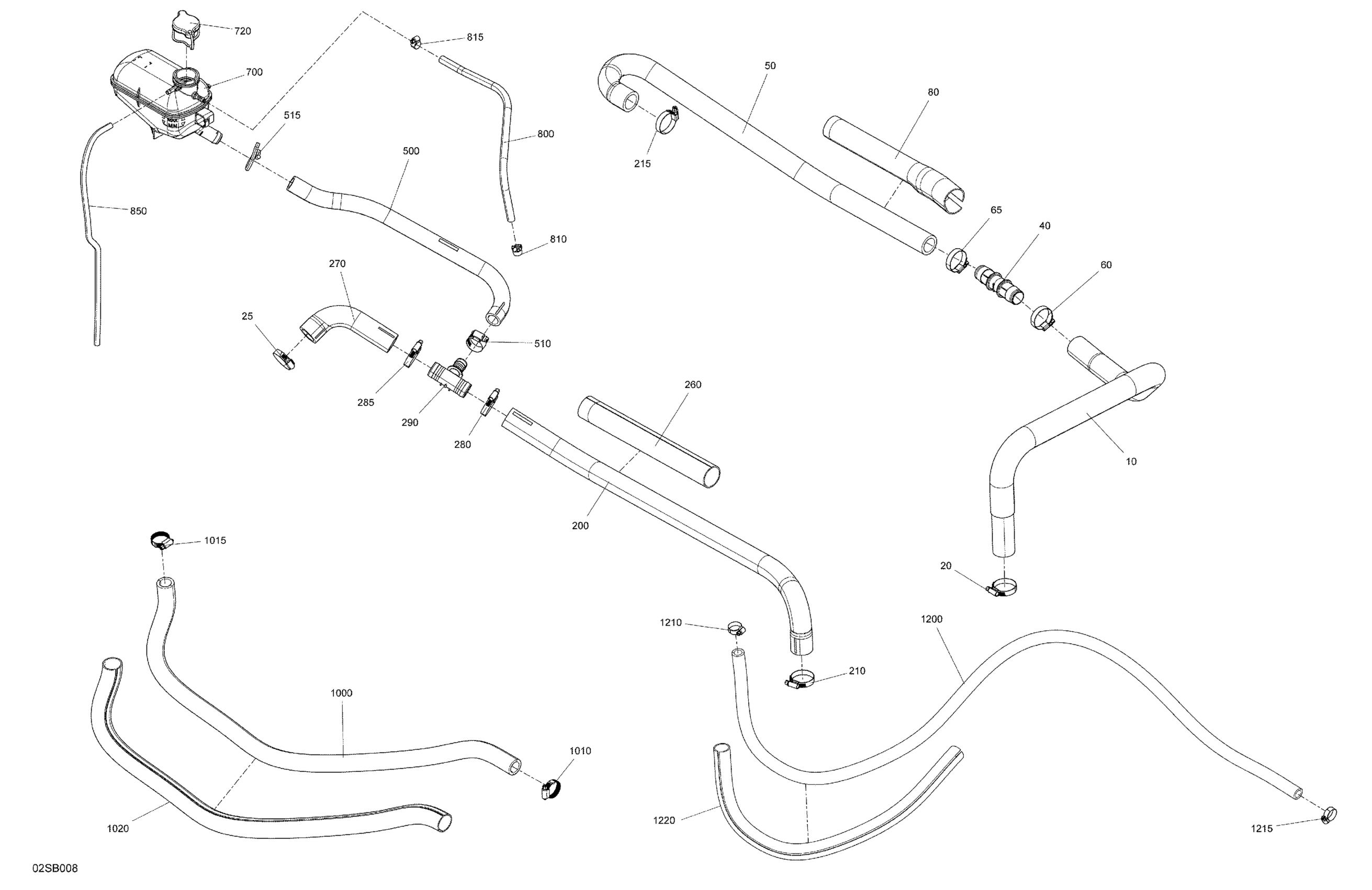

Sea-doo GTI 90, 2022 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$70.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

40

Fitting

509000914

$7.59

50

Formed Hose

276000524

$70.49

60

Tridon Gear Clamp

293650185

$13.99

65

Tridon Gear Clamp

293650185

$13.99

80

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

200

RH Hose Ride Plate

276000521

$62.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

260

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

270

Hose Waterpump Inlet

276000482

$18.32

280

Tridon Gear Clamp

293650185

$13.99

285

Tridon Gear Clamp

293650185

$13.99

290

T-Fitting

509000372

$10.33

500

Hose Coolant Tnak

276000479

$39.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

810

Tridon Gear Clamp

293650170

$1.99

815

Tridon Gear Clamp

293650170

$1.99

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

1000

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1010

Tridon Gear Clamp

293650051

$4.19

1015

Tridon Gear Clamp

293650051

$4.19

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Tridon Gear Clamp

293650172

$3.09

1215

Tridon Gear Clamp

293650172

$3.09

1220

Was 515175319 Tubing 22 mm

219704423

$14.99
