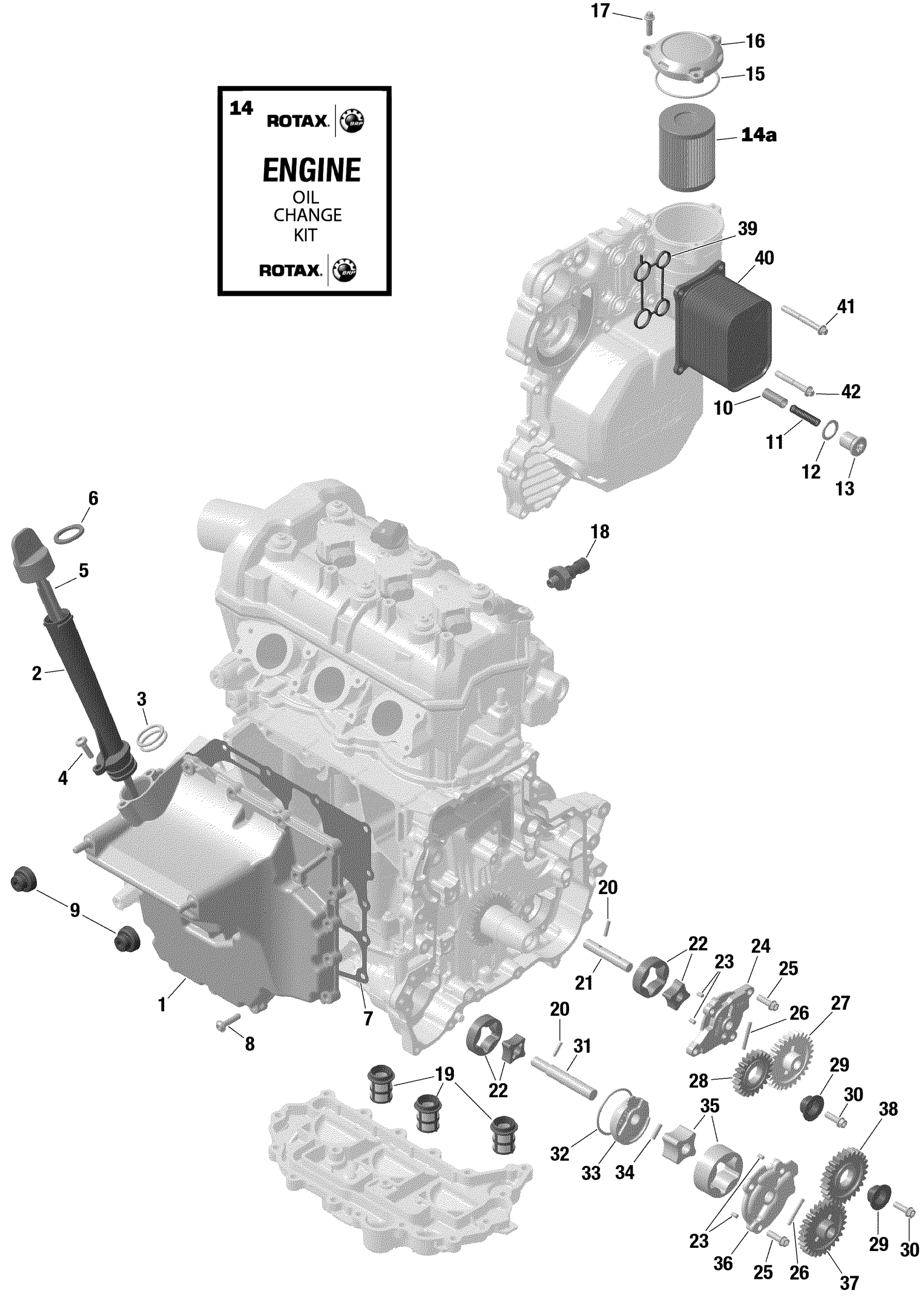

Sea-doo GTI 90, 2022 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$90.97

2

Oil Filler Tube

420656900

$6.14

3

O-Ring

420430440

$3.49

4

Torx Flange Screw M6 X 20

420441383

$4.39

5

Oil Lever Tube | Includes no. 5-6

420856667

$9.74

6

Gasket Ring

420431790

$7.05

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

8

Torx Flange Screw M6 X 25

420841548

$4.39

9

Rubber Grommet

420860150

$4.41

10

Pressure Regulating Piston

420256591

$10.58

11

Spring

420239445

$10.58

12

Gasket Ring

420430624

$1.51

13

Plug Screw

420441373

$11.01

14

4T 5W-40 Synthetic Blend Oil Change Kit for engines of 1500 cc or more

9779251

$90.27

14a

Oil Filter

420956123

$11.14

15

O-Ring

420230923

$2.59

16

Oil Filter Cover

420612139

$31.82

17

Torx Flange Screw M6 X 20

420441693

$4.85

18

Oil Pressure Switch

420856536

$48.72

19

Oil Sieve

420656680

$8.72

20

Needle Pin

420232731

$1.79

21

Oil Pump Shaft

420820120

$9.74

22

Oil Pump Rotor

420256348

$61.72

23

Needle Pin

420929075

$1.74

24

Oil Pump Cover

420911080

$23.37

25

Torx Flange Screw M6 X 20

420440207

$2.54

26

Needle Pin

420232431

$3.67

27

Oil Pump Gear, 29 Teeth

420834882

$8.89

28

Gear 22 Teeths

420835400

$16.22

29

Spacer

420947394

$20.77

30

Torx Flange Screw M6 X 20

420440207

$2.54

31

Oil Pump Shaft

420837916

$20.77

32

O-Ring

420631830

$1.74

33

Oil Pump Cover

420611950

$46.12

34

Needle Pin

420632221

$3.61

35

Oil Pump Rotor

420256836

$60.42

36

Oil Pump Cover

420611980

$27.92

37

Oil Pump Gear, 28 Teeth

420834887

$8.89

38

Idle Gear, 26 Teeth

420835321

$20.77

39

Gasket

420431871

$8.83

40

Oil Cooler

420656000

$128.67

41

Torx Flange Screw M6 X 55

420840673

$4.72

42

Torx Flange Screw M6 X 45

420641198

$3.38
