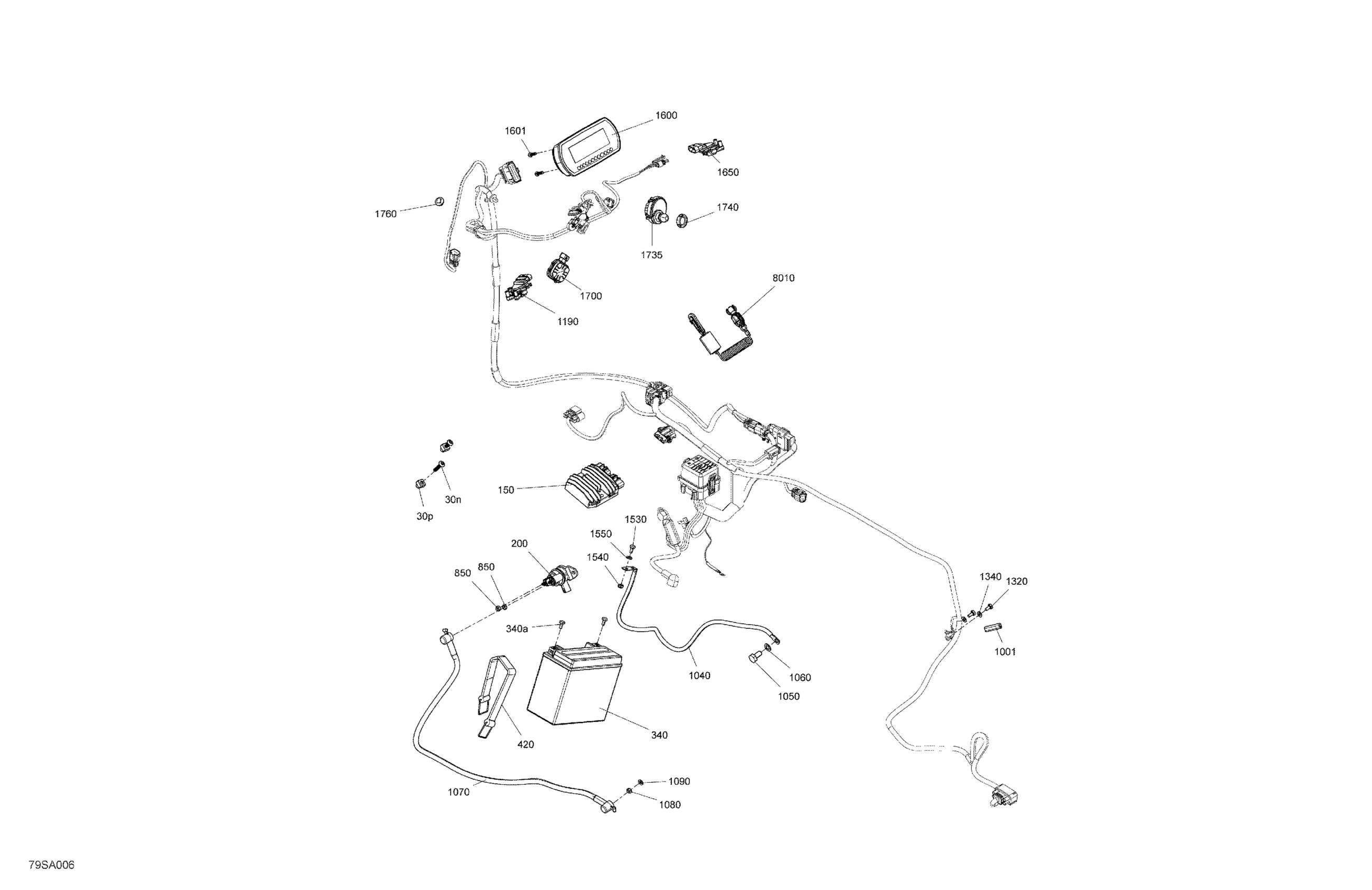

Sea-doo 001 - GTI 90, 2021 08- Electric - System Diagram
#
Description
Price
30n
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
30p
Insert
291003793
$3.56
150
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
200
Starter Relay
278003012
$42.49
340
Battery 12 Volt 18AH
296000449
$92.28
340
Battery Ass'y, 18 Amperes | Brazil
515179099
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201279
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201282
Unavailable
340a
Battery Bolt Kit
250000282
$7.29
420
Strap
293850141
$20.99
850
Elastic Stop Nut M6, Brass
232561200
$4.23
1001
Trim 1000Mm Long
219704354
$15.99
1040
Cable Ground
278003795
$38.99
1050
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
1060
Flat Washer 10 mm, Stainless
234000600
$1.46
1070
Cable Positive Pole
278003796
$38.99
1080
Elastic Stop Nut M6, Brass
232561200
$4.23
1090
Stainless Flat Washer M6
234061600
$0.33
1190
LH Throttle Sensor
278002284
$119.99
1320
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1340
Stainless Flat Washer M6
234061600
$0.33
1530
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1540
Elastic Stop Nut M6, Brass
232561200
$4.23
1550
Stainless Flat Washer M6
234061600
$0.33
1600
Multifunction Mono Compact Gauge
278003430
$599.99
1601
Hex. Flange Screw K50 X 20
241152060
$1.99
1650
Throttle Position Sensor
278002283
$119.99
1700
LH Switch Keypad
278003802
$126.99
1735
Terminal Dess One-Wire | Except Model Europe
515178840
$83.49
1740
Safety Nut (DESS Switch)
278002963
$3.28
1760
Mount Dart
293730040
$1.04
8010
Safety Lanyard Ass'y, RFID
278003400
$84.99
