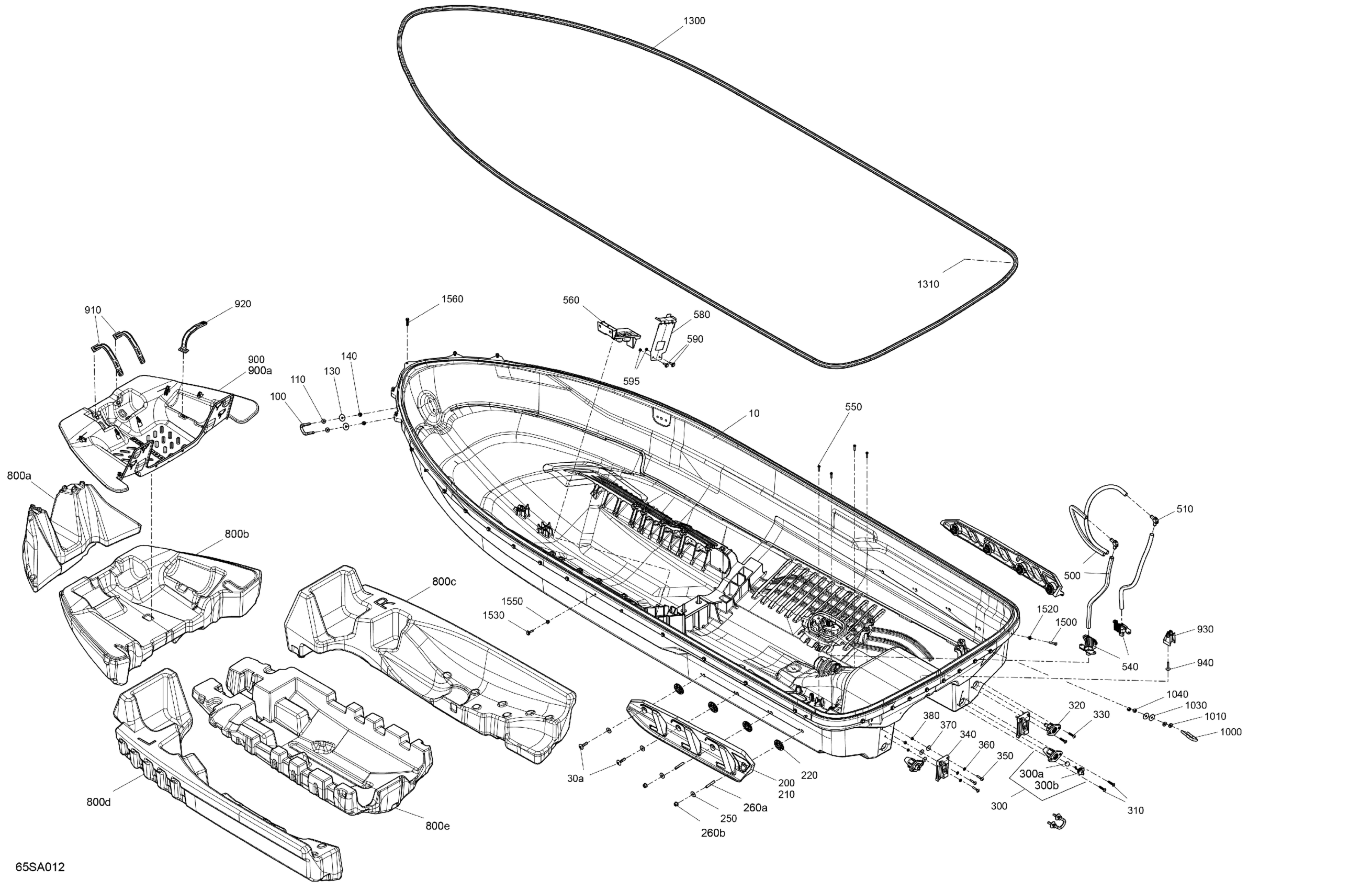

Sea-doo GTI 90, 2021 Body - Hull Diagram

#

Description
Price

10

Drilled Hull

292002445

$2.00

30a

Torx Head Screw M8 X 35

250001215

$5.92

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

LH Sponson

292001954

$65.99

210

RH Sponson

292001953

$54.99

220

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

250

Flat Washer 8 mm

234082410

$1.47

260a

Socket Set Screw M8 x 50

206285044

$4.65

260b

Hex. Flange Nut

233081436

$2.00

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

300a

Floating Ball

293830080

$7.19

300b

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

310

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

320

Drain Neck Ass'y

292002153

$14.49

330

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

340

Ladder Attachment

292002113

$8.49

350

Truss Cone Torx Screw M6 X 30

250000924

$7.51

360

Stainless Flat Washer M6

234061600

$0.33

370

Flat Washer M6.6 X 22

250200022

$2.72

380

Elastic Stop Nut M6, Brass

232561200

$4.23

500

Hose

293830198

Unavailable

510

Fitting Elbow 90°

293710152

$18.49

540

Pump Support

269800956

$3.39

550

Hex. Screw 10-14 X 7/8”

211000023

$3.59

560

Battery Support

292002395

$14.49

580

Battery Support

292002434

$14.49

590

Hex Screw M6 X 20

250000965

$2.11

595

Elastic Stop Nut M6, Brass

232561200

$4.23

800a

Float Hull Front Upper

292002405

$36.99

800b

Float Hull Front

292002399

$104.99

800c

RH Center Float Hull

292002229

$104.99

800d

LH Center Float Hull

292002230

$104.99

800e

Float Hull Center

292002298

$104.99

900

Panel | Includes 900 to 900a

292002397

$54.99

900a

Trunk Shield

292001868

$43.99

910

Strap

269502417

$17.69

920

Strap

269502417

$17.69

930

Strap Anchor

270000988

$10.28

940

Hexagonal Cap Screw M6 X35

250000399

$4.44

1000

U-Clamp

292000933

$59.49

1010

Flat Washer M8.5 x 18

293050001

$3.07

1030

Flat Washer 8 mm, Stainless

250200175

$3.06

1040

Hex. Elastic Nut M8 Brass

232581200

$2.22

1300

Gasket

292002242

$54.99

1310

Self Drilling Screw #8 X 3/4

250001132

$1.37

1500

Hex Sems Screw M6X30

250001183

$2.85

1520

Nut Flange Elastic M6

233261200

$0.99

1530

Hex Sems Screw M6X30

250001183

$2.85

1550

Nut Flange Elastic M6

233261200

$0.99

1560

Hex. Flange Screw M6.81 X 30

243163060

$2.32
