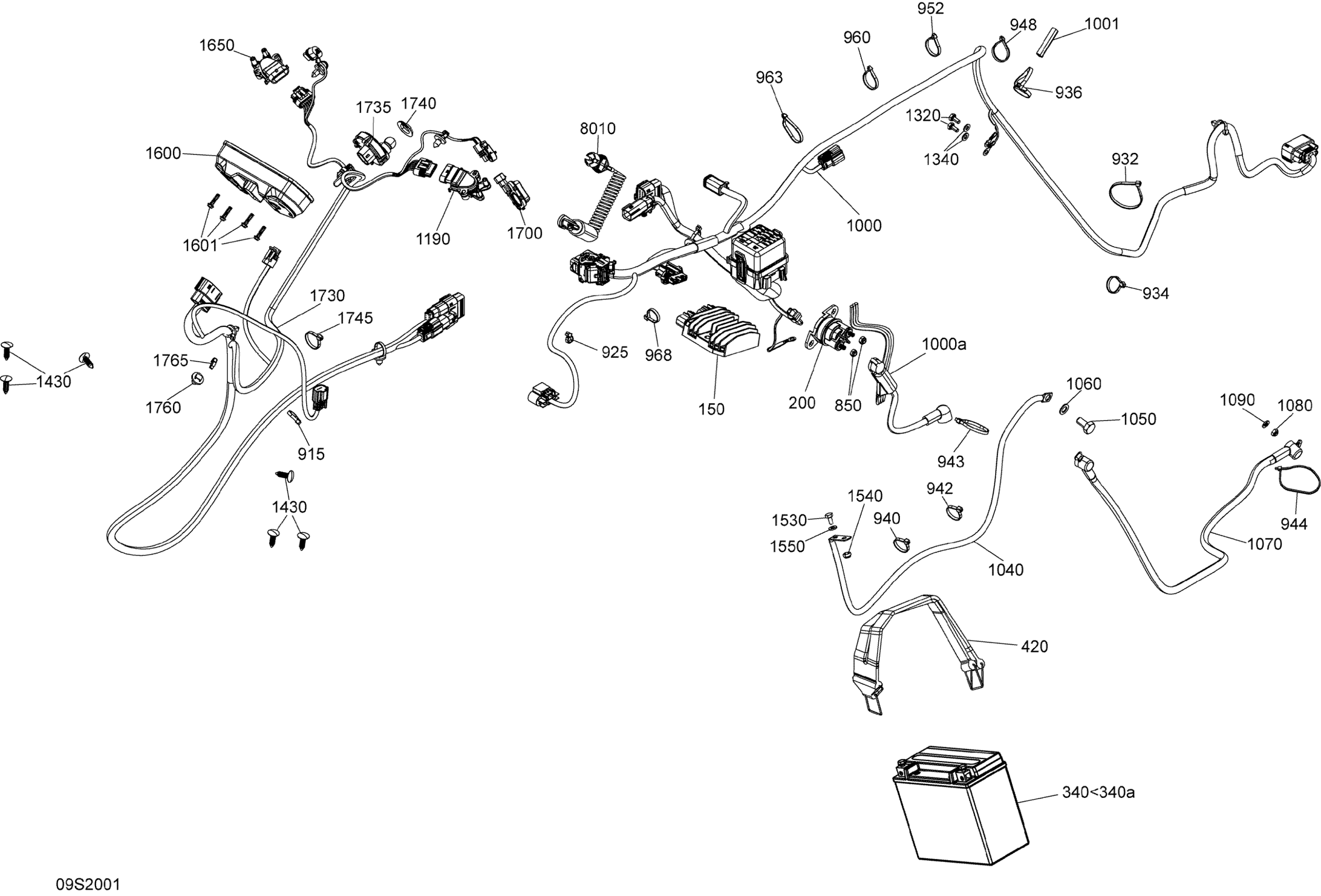

Sea-doo GTI 90, 2020 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

200

Starter Relay

278003012

$40.27

340

Battery 12 Volt 18AH

296000449

$142.45

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$3.39

420

Strap

293850141

$18.63

850

Elastic Stop Nut M6, Brass

232561200

$4.03

915

Tie-Rap 180 mm

414115200

$0.10

925

Tie-Rap 180 mm

414115200

$0.10

932

Tie-Rap 180 mm

414115200

$0.10

934

Tie-Rap 180 mm

414115200

$0.10

936

Tie Rap 300mm

293750053

$1.99

940

Tie-Rap 180 mm

414115200

$0.10

942

Tie-Rap 180 mm

414115200

$0.10

943

Tie-Rap 180 mm

414115200

$0.10

944

Tie-Rap 180 mm

414115200

$0.10

948

Tie Wrap 368 mm

293750008

$0.97

952

Tie-Rap 180 mm

414115200

$0.10

960

Tie-Rap 180 mm

414115200

$0.10

963

Tie-Rap 180 mm

414115200

$0.10

968

Tie-Rap 180 mm

414115200

$0.10

1000<1000a

Main Wiring Harness

278003782

$295.49

1000a

Battery Cable

278003715

$66.39

1001

Trim 1000Mm Long

219704354

$14.30

1040

Cable Ground

278003795

$35.04

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

1060

Flat Washer 10 mm, Stainless

234000600

$1.22

1070

Cable Positive Pole

278003796

$35.04

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1430

Black, Dart

293730006

$0.93

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1540

Elastic Stop Nut M6, Brass

232561200

$4.03

1550

Stainless Flat Washer M6

234061600

$0.28

1600

Multifunction Mono Compact Gauge

278003430

$532.06

1601

Hex. Flange Screw K50 X 20

241152060

$1.81

1650

Throttle Position Sensor

278002283

$104.99

1700

LH Switch Keypad

278003802

$116.39

1730

Steering Harness

278003804

Unavailable

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

1740

Safety Nut (DESS Switch)

278002963

$3.12

1745

Tie-Rap 180 mm

414115200

$0.10

1760

Mount Dart

293730040

$0.99

1765

Tie-Rap 180 mm

414115200

$0.10

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13
