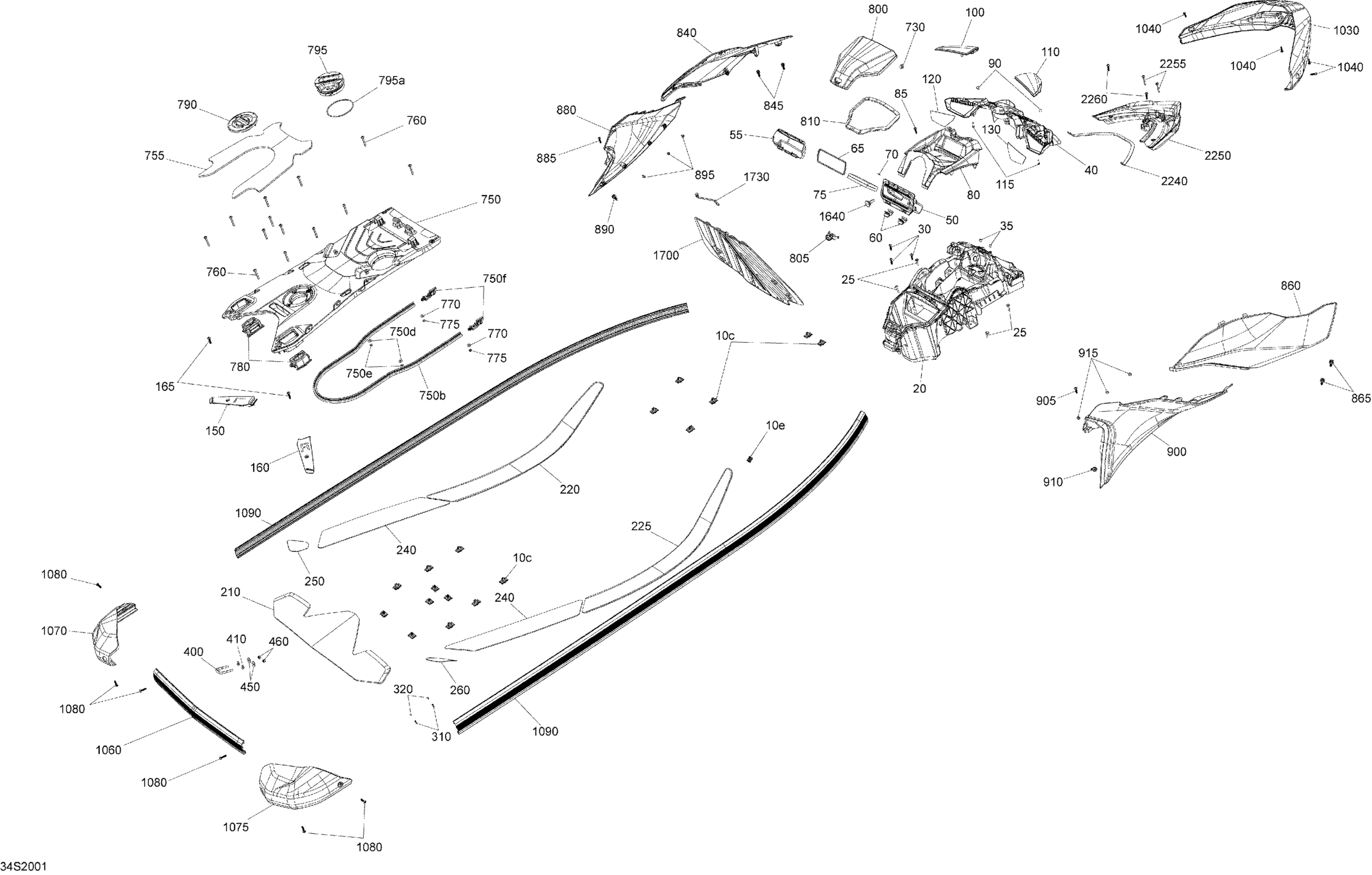

Sea-doo 001 - GTI 90, 2020 09- Body Diagram
#
10c
Nut Housing M6 Ass'y | Includes 10b to 10b1a
291006093
$2.39
10e
Tie-Rap Mount
293750025
$1.25
20
Console
291005887
$184.99
25
Hex Screw SEMS M6X35, SS
250000969
$2.11
30
Screw Torx M6.81 X 30
250001007
$2.54
35
Rubber Bumper
293830005
$8.09
40
Mirror Support
291005178
$68.99
50
Deep Black, Storage Bin
291005122
$24.49
55
Watertight Door
264000134
$14.49
60
Clip
269501718
$15.89
65
Gasket
293250412
$17.99
70
Vent Membrane
264000137
$12.99
75
Sealed Compartment Foam
264000135
$12.99
80
Black, Console Panel
291005085
$57.99
85
Screw Torx M6.81 X 30
250001007
$2.54
90
Rubber Bumper
293830005
$8.09
100
Deep Black, LH Mirror Cover
269502427
$55.99
110
Deep Black, RH Mirror Cover
269502428
$55.99
115
Hex. Screw 10-14 X 7/8”
211000023
$3.59
120
LH Mirror Glass
269502274
$88.99
130
RH Mirror Glass
269502276
$88.99
150
LH Spacer
291005127
$20.99
160
RH Spacer
291005182
$20.99
165
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
210
Anti Slip Mat Deck Rear
291005170
$54.99
220
LH Front Anti Slip Mat Deck
291005171
$28.49
225
RH Front Anti Slip Mat Deck
291005172
$28.49
240
LH/RH Rear Anti Slip Mat Side
291005173
$20.49
250
LH Rear Anti Slip Mar Footrest
291005325
$4.49
260
RH Rear Anti Slip Mar Footrest
291005326
$4.49
310
Rivet 1/8"
293150016
$0.40
320
Black, Snap Cap
293000014
$1.09
400
U-Clamp
292000933
$59.49
410
Flat Washer M8.5 x 18
293050001
$3.07
450
Flat Washer 8 mm, Stainless
234082600
$2.43
460
Hex. Elastic Nut M8 Brass
232581200
$2.22
730
Clip
264000150
$1.68
750<750f
Access Cover Ass'y | Includes 750 to 750f
291005049
$229.99
750b
Was 293200062 Seal
219704366
$76.49
750d
Flat Washer M6, Stainless
234062600
$0.77
750e
Elastic Stop Nut M6, Brass
232561200
$4.23
750f
Seal
291004717
$12.99
755
Black, Mat Cover
291004668
$41.49
760
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
770
Flat Washer M6, Stainless
234062600
$0.77
775
Elastic Stop Nut M6, Brass
232561200
$4.23
780
Linq Bases Kit
295100858
$13.30
790
Access Cap Ass'y
291004481
$10.99
795<795a
Access Panel Cap
291005103
$5.39
795a
Access Panel Cap
291005103
$5.39
800
Deep Black, Glove Box Cover
291005888
$67.99
805
Glove Box Latch
264000133
$21.99
810
Gasket
293250498
$29.99
840
Iceland Grey, Body Panel Front LH
291005080
$184.99
845
Dard
293730071
$1.15
860
Iceland Grey, Body Panel Front RH
291005081
$184.99
865
Dard
293730071
$1.15
880
Reef Blue, LH Central Body Panel
291005086
$184.99
885
Screw Torx M6.81 X 30
250001007
$2.54
890
Dard
293730071
$1.15
895
Rubber Bumper
293830005
$8.09
900
Reef Blue, RH Cenral Body Panel
291005087
$184.99
905
Screw Torx M6.81 X 30
250001007
$2.54
910
Dard
293730071
$1.15
915
Rubber Bumper
293830005
$8.09
1030
Bumper Front
291005082
$104.99
1040
Screw Torx M6.81 X 30
250001007
$2.54
1060
Lateral Bumper
291005510
$56.99
1070
LH Rear Bumper Corner
291005083
$20.49
1075
RH Rear Bumper Corner
291005084
$20.49
1080
Screw Torx M6.81 X 30
250001007
$2.54
1090
Lateral Bumper
291005510
$56.99
1640
USB Plug
269502324
$3.09
1700
Panel, Divider Ass'y
291005160
$104.99
1730
Holding Strap
269502111
$18.49
2240
Gasket, Neoprene 2000Mm Long
219704476
$15.36
2250
Body Deflector
291005108
$57.99
2255
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
2260
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
