Description

Price

1

Cover

420911052

$184.99

2

Gasket

420431640

$30.49

3

Torx Flange Screw M6 X 30

420840663

$5.82

4>5

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

5

O-Ring

420431580

$14.83

6

Torx Flange Screw M6 X 16

420641048

$2.96

7

Stator Plate 420W

420296908

$319.49

8

Allen Screw M6 X 40

420241956

$3.17

9

Flywheel Ass'y 420W

420685702

$365.49

10

Shim

420627270

$4.12

11

Socket Head Screw M16 X 35

420241549

$8.57

12

Torx Flange Screw M8 X 16

420440854

$4.44

13

Sprag Clutch

420659113

$259.99

14

Sparg Clutch Housing

420659263

$154.99

15

Free Wheel Gear, 64 Teeth

420434238

$114.99

16

Needle Pin

420229475

$14.83

17

Starter Double Gear 11/49 T

420634741

$199.99

18>19

Starter Ass'y | Includes 8 to 9

420893830

$265.99

19

O-Ring

420250145

$10.33

20

Torx Flange Screw M6 X 30

420840663

$5.82

21

Tie Rap

420866714

$1.90

22

Carbon Brush Set

420881145

$204.99

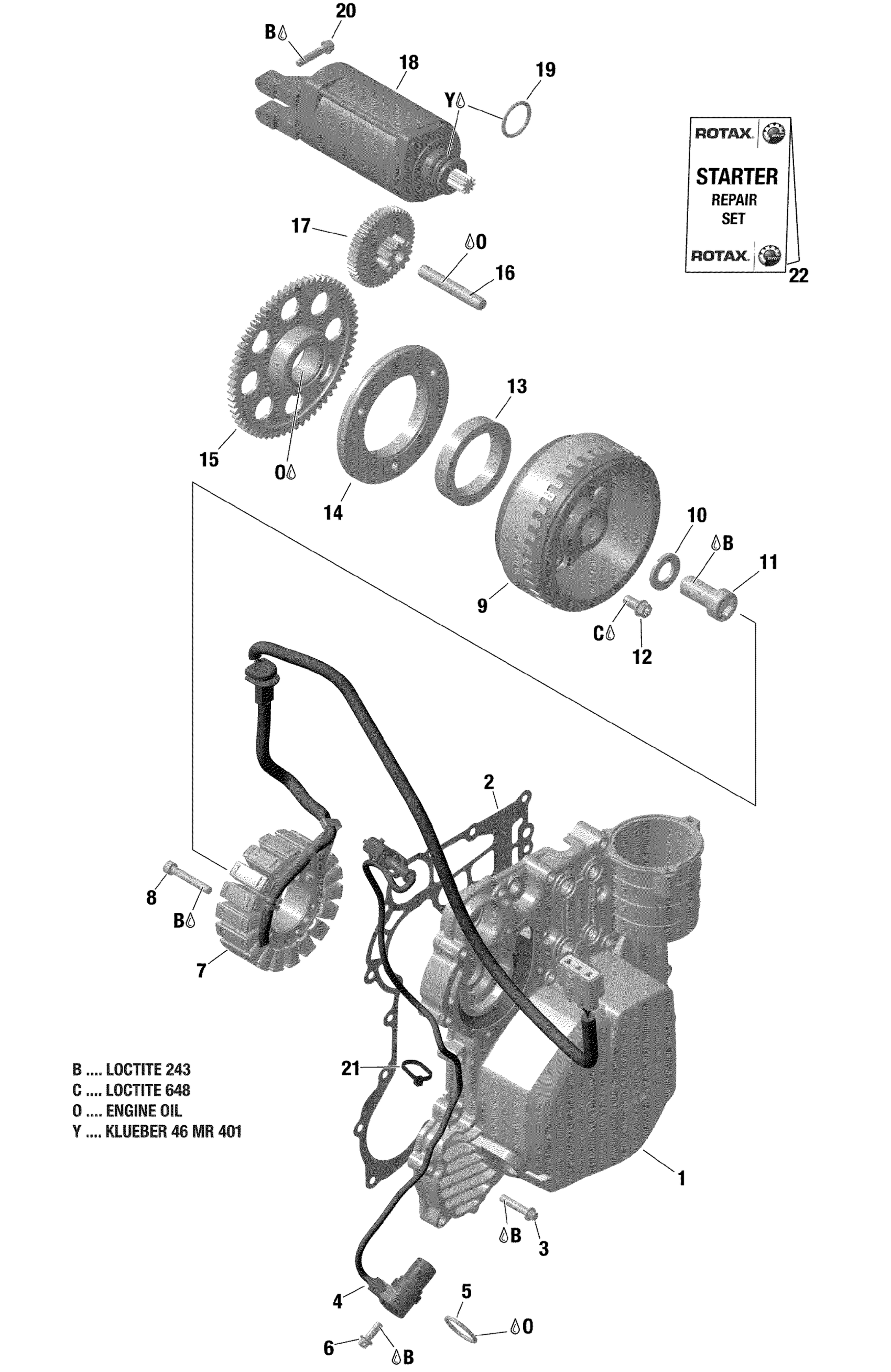

Sea-doo 001 - GTI 90, 2020 03- Magneto And Electric Starter - 903 Diagram

Cover

Gasket

Torx Flange Screw M6 X 30

Crankshaft Position Sensor Ass'y | Includes 10 to 11

O-Ring

Torx Flange Screw M6 X 16

Stator Plate 420W

Allen Screw M6 X 40

Flywheel Ass'y 420W

Shim

Socket Head Screw M16 X 35

Torx Flange Screw M8 X 16

Sprag Clutch

Sparg Clutch Housing

Free Wheel Gear, 64 Teeth

Needle Pin

Starter Double Gear 11/49 T

Starter Ass'y | Includes 8 to 9

O-Ring

Torx Flange Screw M6 X 30

Tie Rap

Carbon Brush Set
