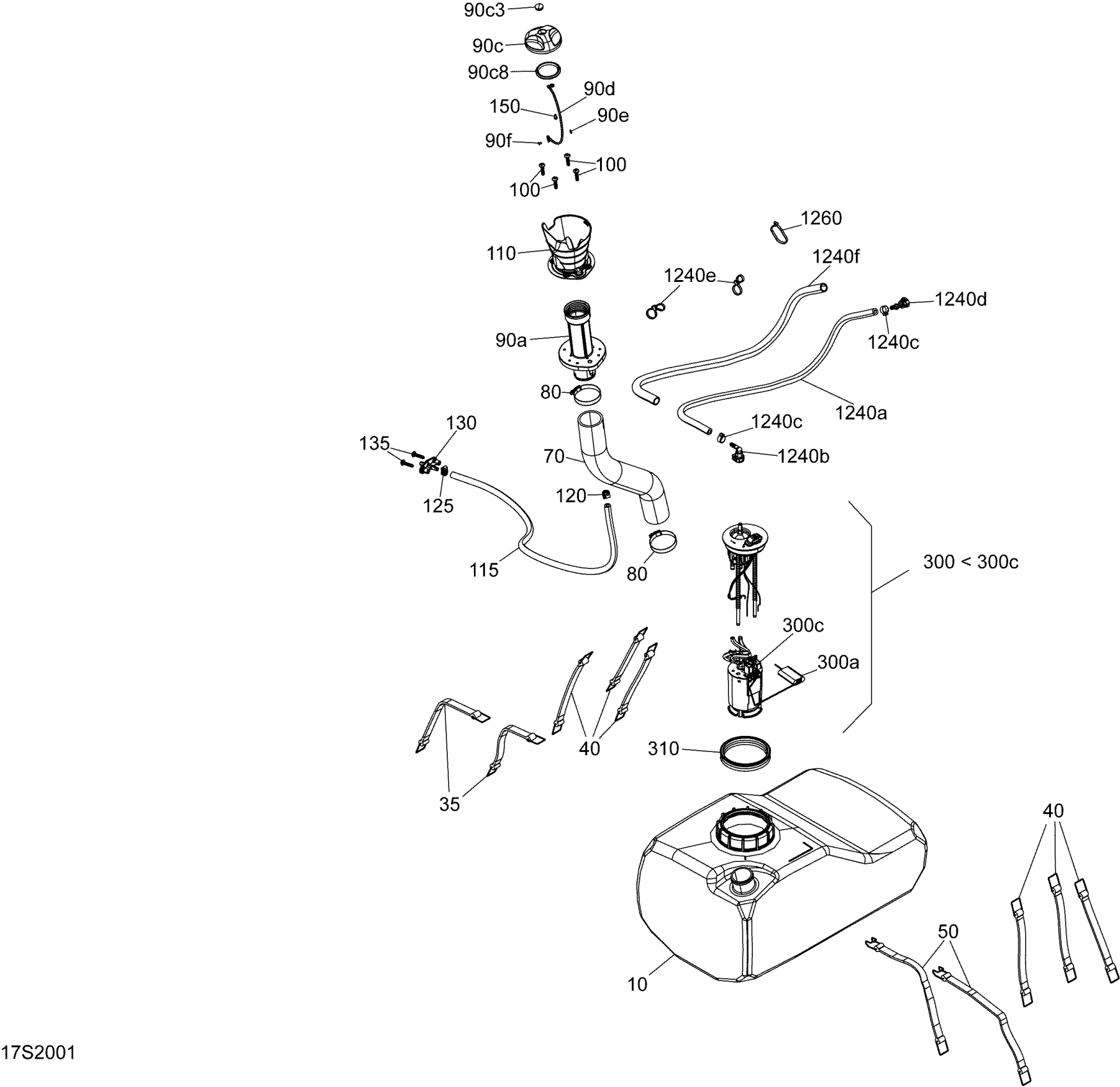

Sea-doo GTI 90, 2020 Fuel System Diagram

#

Description
Price

10

Fuel Tank

275500962

$359.99

35

Holding Strap

293850112

$18.49

40

Holding Strap

293850112

$18.49

50

Holding Strap

293850134

$20.99

70

Hose, Filler

275501019

$85.99

80

Norma Clamp

293650081

$12.18

90a

Filler Neck

275501005

$36.99

90c

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$59.49

90c3

Black, Snap Cap

293000034

$9.39

90c8

Gasket

293250417

$3.91

90d

Fuel Cap Chain

275500972

$18.54

90e

Flat Washer M3, Stainless

234032600

$0.55

90f

Pop Rivet 1/8"

390407900

$1.49

100

Screw Torx M6.81 X 30

250001007

$2.54

110

Gas, Deflector

293250480

$10.49

115

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

120

Tridon Gear Clamp

293650171

$3.09

125

Tridon Gear Clamp

293650171

$3.09

130

Fitting Ass'y

275501011

Unavailable

135

Screw Torx M6.81 X 30

250001007

$2.54

150

Screw K40 X 10

241140060

$1.48

300<300c

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

300a

Sensor Lever

275500780

$224.99

300c

Fuel Filter

270600113

$33.99

310

Gasket

293250173

$18.49

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

1240b

Quick Disconnect

275500921

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Elbow Fitting 90°

293710105

$14.22

1240e

Tie Rap 300mm

293750053

$2.11

1240f

Tubing 16 Mm 1000Mm Long

219704408

$7.49

1240f

Tubing 16 Mm 1000Mm Long

219704408

$7.49

1260

Tie Wrap 368 mm

293750008

$1.04
