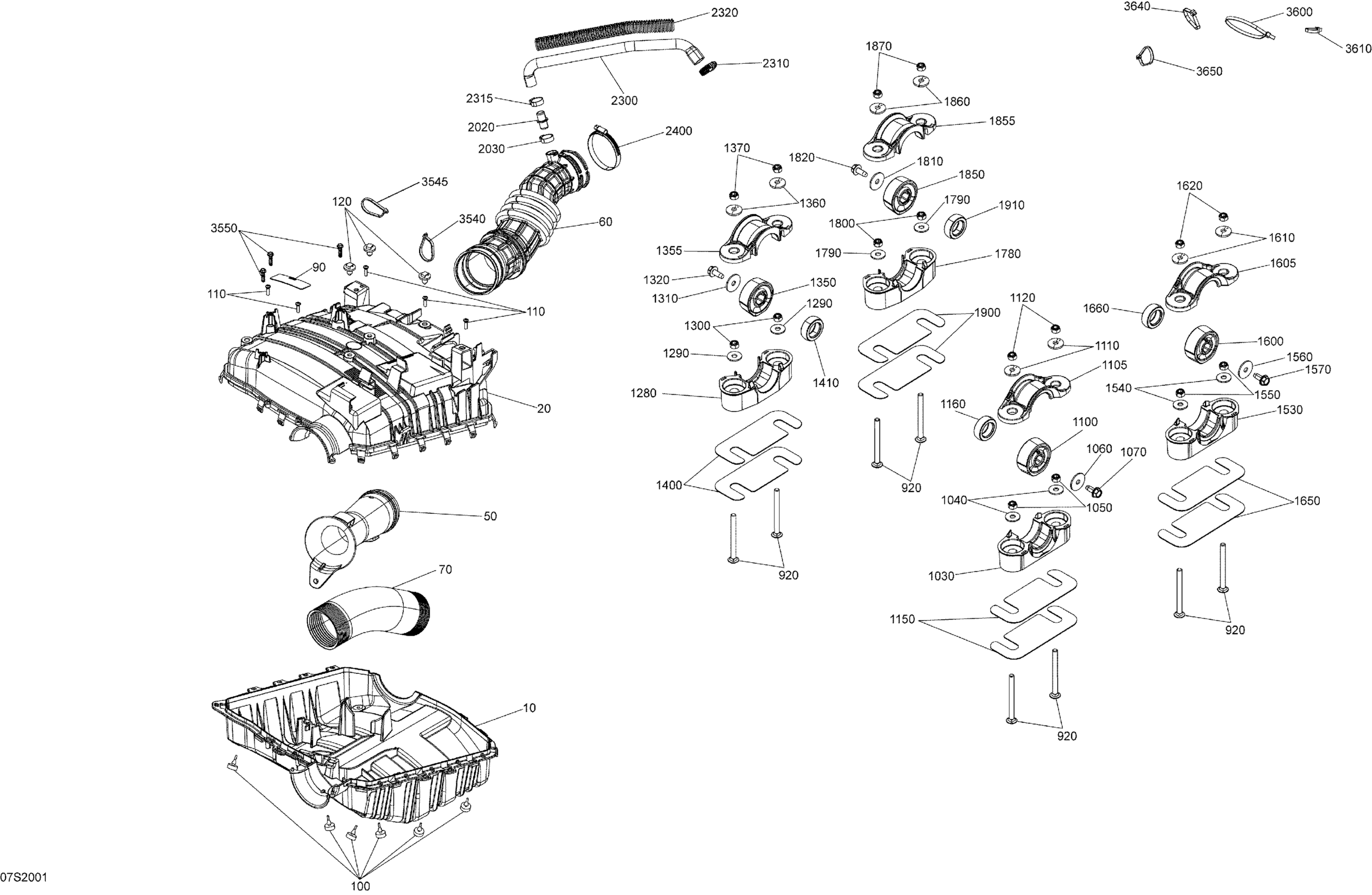

Sea-doo GTI 90, 2020 Engine Diagram

#

Description
Price

920

Stud M8 X 1.25 X 70 S.Grip

250300649

$13.67

1030

Mount Base

270000978

$19.37

1040

Flat Washer 8 mm, Stainless

234082600

$2.27

1050

Hex. Elastic Nut M8 Brass

232581200

$1.48

1060

Flat Washer 8 mm

250200130

$3.00

1070

Forming Hex Screw M8 X 20

250000645

$6.36

1100

Rubber Mount

270000852

$20.12

1105

Mount Clamp

270000859

$19.37

1110

Conical Washer

250200137

$4.57

1120

Hex. Elastic Nut M8 Brass

232581200

$1.48

1150

Shim 1.3 mm

270000865

$8.48

1160

Rubber Stopper

270000863

$7.78

1280

Mount Base

270000978

$19.37

1290

Flat Washer 8 mm, Stainless

234082600

$2.27

1300

Hex. Elastic Nut M8 Brass

232581200

$1.48

1310

Flat Washer 8 mm

250200130

$3.00

1320

Forming Hex Screw M8 X 20

250000645

$6.36

1350

Rubber Mount

270000852

$20.12

1355

Mount Clamp

270000859

$19.37

1360

Conical Washer

250200137

$4.57

1370

Hex. Elastic Nut M8 Brass

232581200

$1.48

1400

Shim 1.3 mm

270000865

$8.48

1410

Rubber Stopper

270000863

$7.78

1530

Mount Base

270000978

$19.37

1540

Flat Washer 8 mm, Stainless

234082600

$2.27

1550

Hex. Elastic Nut M8 Brass

232581200

$1.48

1560

Flat Washer 8 mm

250200130

$3.00

1570

Forming Hex Screw M8 X 20

250000645

$6.36

1600

Rubber Mount

270000852

$20.12

1605

Mount Clamp

270000859

$19.37

1610

Conical Washer

250200137

$4.57

1620

Hex. Elastic Nut M8 Brass

232581200

$1.48

1650

Shim 1.3 mm

270000865

$8.48

1660

Rubber Stopper

270000863

$7.78

1780

Mount Base

270000978

$19.37

1790

Flat Washer 8 mm, Stainless

234082600

$2.27

1800

Hex. Elastic Nut M8 Brass

232581200

$1.48

1810

Flat Washer 8 mm

250200130

$3.00

1820

Forming Hex Screw M8 X 20

250000645

$6.36

1850

Rubber Mount

270000852

$20.12

1855

Mount Clamp

270000859

$19.37

1860

Conical Washer

250200137

$4.57

1870

Hex. Elastic Nut M8 Brass

232581200

$1.48

1900

Shim 1.3 mm

270000865

$8.48

1910

Rubber Stopper

270000863

$7.78

10

Airbox Base

273000354

$51.46

20

Intake Silencer Cover

273000397

$64.90

50

Intake Hose

273000358

$20.12

60

Hose

273000364

$56.69

70

Air Silencer Hose

273000290

$20.12

90

Air Silencer Notice Decal

219903177

Unavailable

100

Rubber Stopper

708000759

$4.15

110

Flange Torx Screw K40 X 16

250000287

$2.00

120

Mount Dart

293730040

$0.99

2020

Fitting

270001007

$10.30

2030

Oetiker Clamp

293650011

$2.82

2300

Formed Hose

270000947

$41.76

2310

Tridon Gear Clamp

293650172

$3.07

2315

Oetiker Clamp

293650011

$2.82

2320

Tubing 16 Mm 1000Mm Long

219704408

$7.15

2400

Norma Clamp

293650079

$10.21

3540

Tie-Rap 180 mm

414115200

$0.10

3545

Tie-Rap 180 mm

414115200

$0.10

3550

Hex. Flange Screw K50 X 20

241152060

$1.81

3600

Tie Wrap 368 mm

293750008

$0.97

3610

Tie Wrap 142 mm

293750002

$1.01

3640

Tie-Rap 180 mm

414115200

$0.10

3650

Tie-Rap 180 mm

414115200

$0.10
