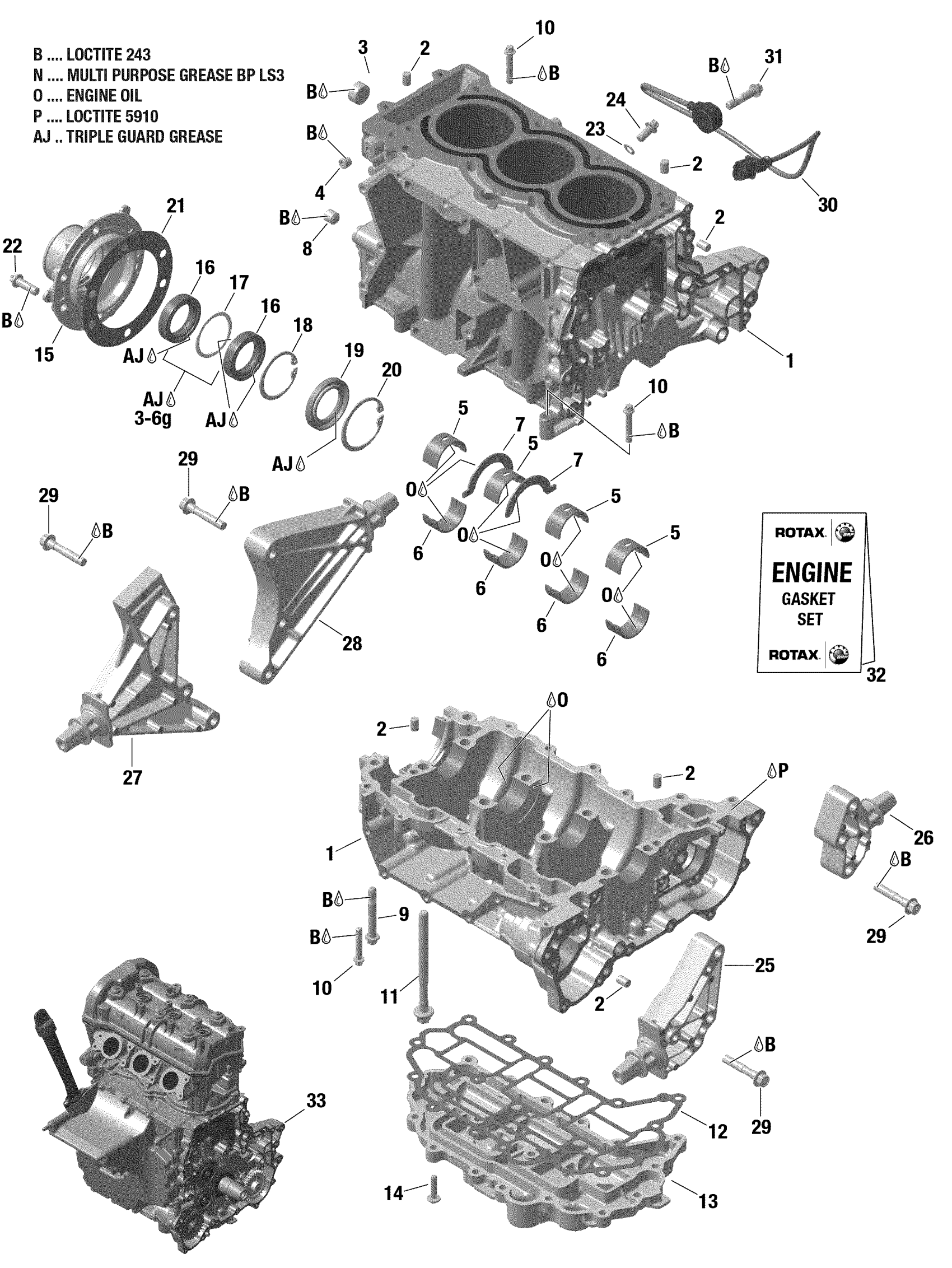

Sea-doo GTI 90, 2020 Crankcase - 903 Diagram

#

Description
Price

1>6

Engine Block | Includes 1 to 6

420894026

$2,031.49

2

Center Pin 8 X 12

420632010

$3.52

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Cushion

420933180

$16.39

6

Cushion

420933185

$17.13

7

Ring Half

420933140

$10.21

8

Threaded Pin

420840508

$17.13

9

Torx Flange Screw M8 X 55

420641213

$7.01

10

Torx Flange Screw M6 X 35

420641258

$3.19

11

Torx Flange Screw M9 X 113

420940945

$11.96

12

Gasket

420431820

$14.90

13

Oil Sump

420911502

$102.99

14

Torx Flange Screw M6 X 25

420841548

$5.04

15>20

PTO Cover

420911681

$159.67

16

Oil Seal

420450165

$15.64

17

Ring Distance

420947500

$5.60

18

Retaining Ring

420945693

$16.39

19

Oil Seal | Included in gasket kit

420850220

$36.54

20

Retaining Ring

420945820

$6.21

21

PTO Cover Gasket

420450080

$6.07

22

Torx Flange Screw M8 X 25

420641248

$5.42

23

Sealing Ring

420950142

$1.84

24

Torx Flange Screw M8 X 16

420441653

$4.58

25

Front Engine Bracket, Intake

420911770

$52.96

26

Front Engine Bracket, Exhaust

420911775

$52.96

27

Rear Engine Bracket, Intake

420911780

$58.18

28

Rear Engine Bracket, Exhaust

420911785

$58.18

29

Hex. Flange Screw M8 X 45

420641208

$7.09

30

Noise Sensor

420664031

$58.18

31

Torx Flange Screw M8 X 35

420641188

$7.01

32

Gasket Set

420686238

$478.33

33

Long Block 903

420090332

$4,103.99
