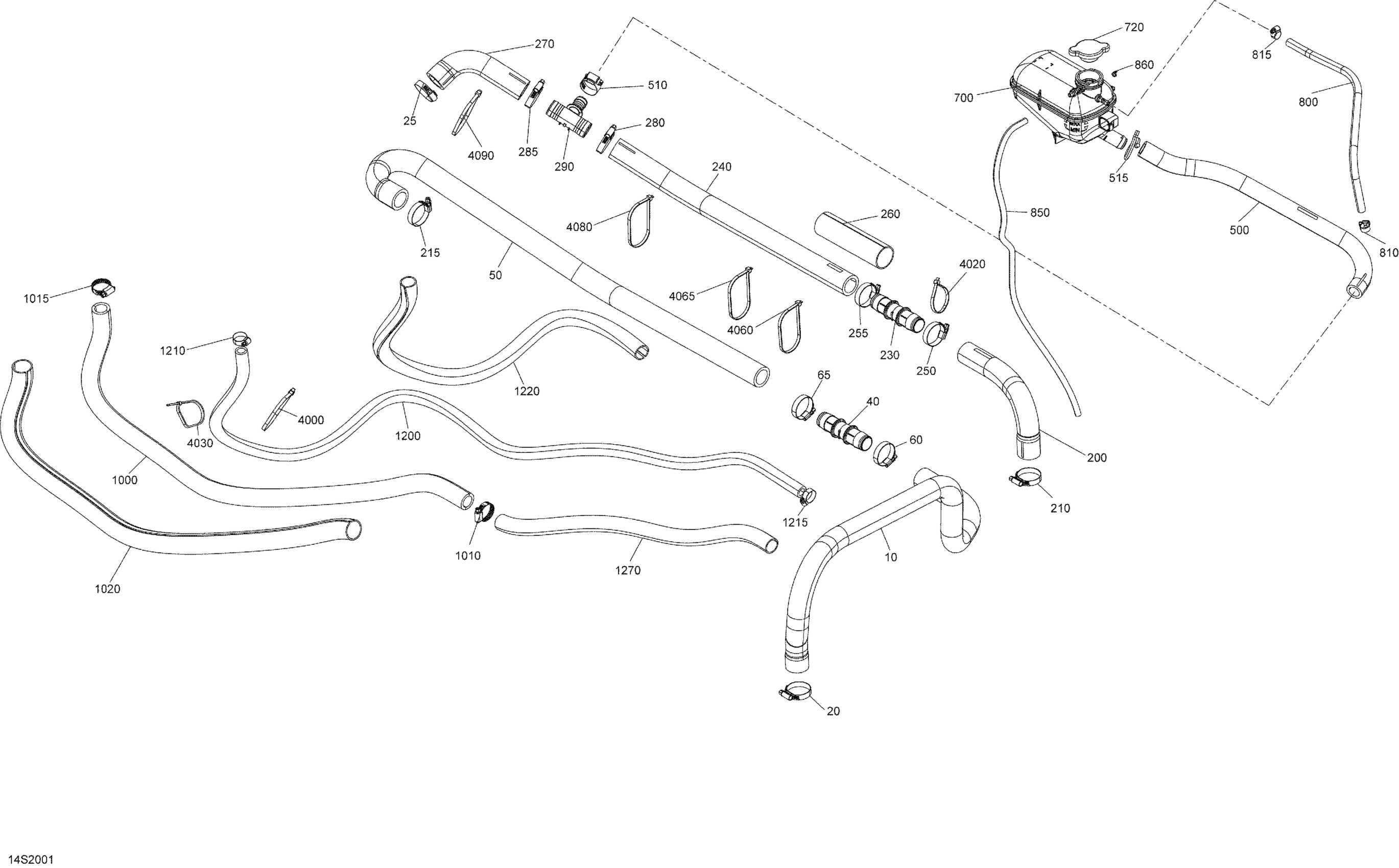

Sea-doo GTI 90, 2020 Cooling System Diagram

#

Description
Price

10

Radiator Hose This part replaces 276000458.

276000414

$61.16

20

Norma Clamp

293650245

$13.51

25

Norma Clamp

293650245

$13.51

40

Fitting

509000914

$6.75

50

Waterpump Hose - Riding Plate LH

276000451

$61.16

60

Tridon Gear Clamp

293650185

$12.52

65

Tridon Gear Clamp

293650185

$12.52

200

Hose Riding Plate RH

276000478

$55.94

210

Norma Clamp

293650245

$13.51

215

Norma Clamp

293650245

$13.51

230

Fitting

509000914

$6.75

240

Waterpump Hose TO Riding Plate RH

276000481

$55.94

250

Tridon Gear Clamp

293650185

$12.52

255

Tridon Gear Clamp

293650185

$12.52

260

Tubing 35 MM 1000MM Long

219704428

$9.84

270

Hose Waterpump Inlet

276000482

$15.64

280

Tridon Gear Clamp

293650185

$12.52

285

Tridon Gear Clamp

293650185

$12.52

290

T-Fitting

509000372

$9.03

500

Hose Coolant Tnak

276000479

$35.79

510

Tridon Gear Clamp

293650019

$5.52

515

Spring Clamp

293650115

$2.82

700

Coolant Tank

276000419

$108.18

720

Pressure Cap | Includes 720 to 720a

276000100

$23.85

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

810

Tridon Gear Clamp

293650170

$2.00

815

Tridon Gear Clamp

293650170

$2.00

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

860

Tie Wrap 94 mm | 4X4

293750001

$0.96

1000

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1010

Tridon Gear Clamp

293650051

$4.15

1015

Tridon Gear Clamp

293650051

$4.15

1020

Tubing 25 MM 1000MM Long

219704402

$14.57

1200

Was 276000001 Hose 12.5 mm

219704394

$49.22

1210

Tridon Gear Clamp

293650172

$3.07

1215

Tridon Gear Clamp

293650172

$3.07

1220

Was 515175319 Tubing 22 mm

219704423

$13.60

1270

Was 515175319 Tubing 22 mm

219704423

$13.60

4000

Tie Wrap 368 mm

293750008

$0.97

4020

Tie-Rap 180 mm

414115200

$0.10

4030

Tie Wrap 368 mm

293750008

$0.97

4060

Tie Wrap 368 mm

293750008

$0.97

4065

Tie Wrap 368 mm

293750008

$0.97

4080

Tie Wrap 368 mm

293750008

$0.97

4090

Tie Wrap 368 mm

293750008

$0.97
