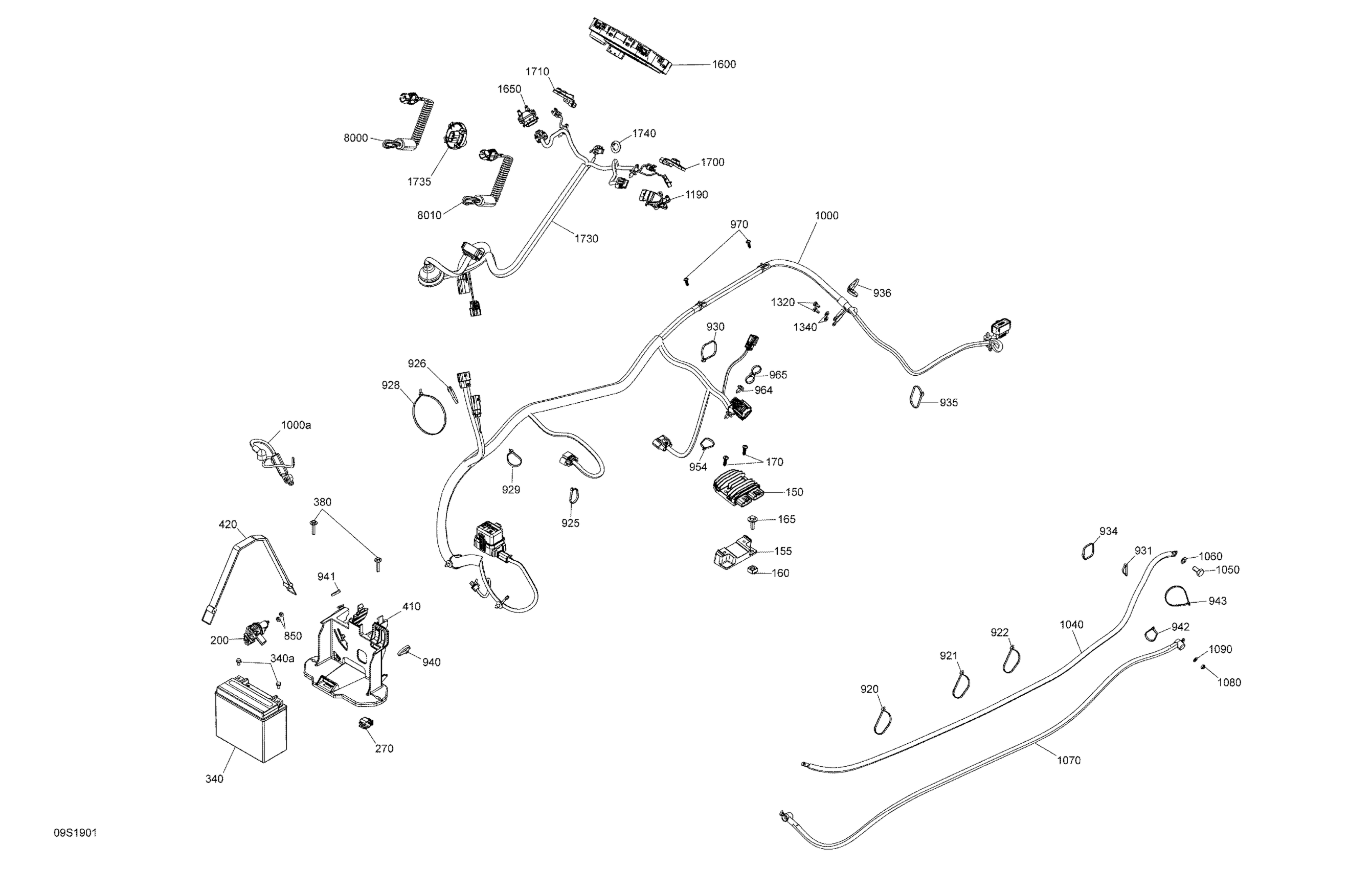

Sea-doo GTI 90, 2019 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

155

Support

278003485

$11.18

160

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

165

Hexagonal Screw M8 X 30

250000888

$3.00

170

Torx Screw Plastite M6

250000466

$6.45

200

Starter Relay

278003012

$40.27

270

Connector Plug

710004904

$8.30

340

Battery 12 Volt 18AH

296000449

$142.45

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$3.39

380

Hexagonal Cap Screw M6 X35

250000399

$4.15

410

Battery Support

278003671

$26.09

420

Strap

293850124

$17.13

850

Elastic Stop Nut M6, Brass

232561200

$4.03

920

Tie-Rap 180 mm

414115200

$0.10

921

Tie-Rap 180 mm

414115200

$0.10

922

Tie-Rap 180 mm

414115200

$0.10

925

Tie-Rap 180 mm

414115200

$0.10

926

Tie Wrap 368 mm

293750008

$0.97

928

Tie Wrap 368 mm

293750008

$0.97

929

Tie Wrap 368 mm

293750008

$0.97

930

Tie Wrap 368 mm

293750008

$0.97

931

Tie Wrap 368 mm

293750008

$0.97

934

Tie Wrap 368 mm

293750008

$0.97

935

Tie Wrap 368 mm

293750008

$0.97

936

Tie-Rap 180 mm

414115200

$0.10

940

Tie-Rap 180 mm

414115200

$0.10

941

Tie-Rap 180 mm

414115200

$0.10

942

Tie-Rap 180 mm

414115200

$0.10

943

Tie Wrap 368 mm

293750008

$0.97

954

Tie-Rap 180 mm

414115200

$0.10

964

Mount Dart

293730040

$0.99

965

Tie Rap 300mm

293750053

$1.99

970

Torx Flange Screw M6 X 16

420641588

$2.00

1000>1000a

Wiring Harness Main | Includes 1000 TO 1000a

278003705

$581.31

1000a

Battery Cable

278003715

$66.39

1040

Battery Ground Cable

278003408

$35.79

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

1060

Flat Washer 10 mm, Stainless

234000600

$1.22

1070

Starter Cable

278003409

$35.79

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1600

LCD Gauge

278003580

$876.84

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch LH Sport/Eco

278002768

$76.84

1710

Switch RH Mode/Set

278002602

$115.64

1730

Steering Harness Ass'y

278003559

$311.16

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

1740

Safety Nut (DESS Switch)

278002963

$3.12

8000

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13
