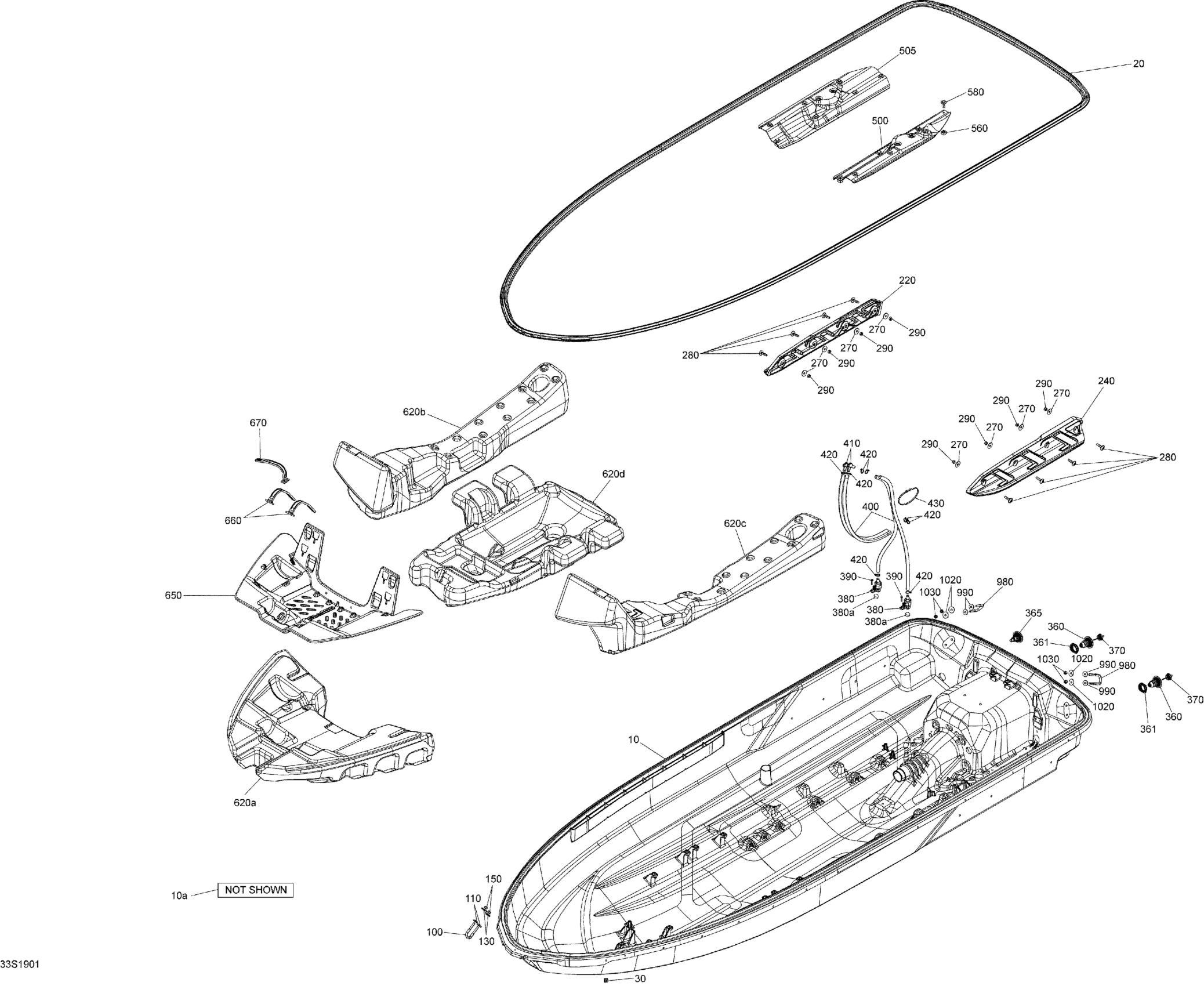

Sea-doo GTI 90, 2019 Hull Diagram

#

Description
Price

10

Drilled Hull | Includes 10 To 10a

295501189

$2,199.97

10a

Hull Insert Kit | Includes 10a to 10a3

295501139

$34.42

20

Seal

292001940

$64.58

30

Insert

291003793

$2.44

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220

RH Sponson

292001953

$53.27

240

LH Sponson

292001954

$63.67

270

Flat Washer 8 mm, Stainless

250200175

$1.29

280

Torx Screw M8 X 35

250000697

$3.25

290

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

Drain Ass'y

292001580

$12.86

361

Plastic Nut

292001825

$6.37

365

Drain Neck Ass'y

292001317

$21.42

370

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

380

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380a

Floating Ball

293830080

$5.56

390

Hex. Screw 10-14 X 7/8”

211000023

$2.91

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

500

Hull Stiffener LH

292001961

$69.20

505

Hull Stiffener RH

292001965

$69.20

560

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

580

Hexagonal Screw M8 X 30

250000888

$3.09

620a

Lower Front Foam

292001947

$87.66

620b

Central Foam RH

292001948

$69.20

620c

Central Foam LH

292001949

$69.20

620d

Fuel Tank Foam

292001950

$96.89

650

Trunk Shield

292001868

$41.51

660

Strap

269502417

$14.27

670

Strap

269502417

$14.27

980

U-Clamp

292000933

$32.47

990

Flat Washer

279000336

$8.35

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29
