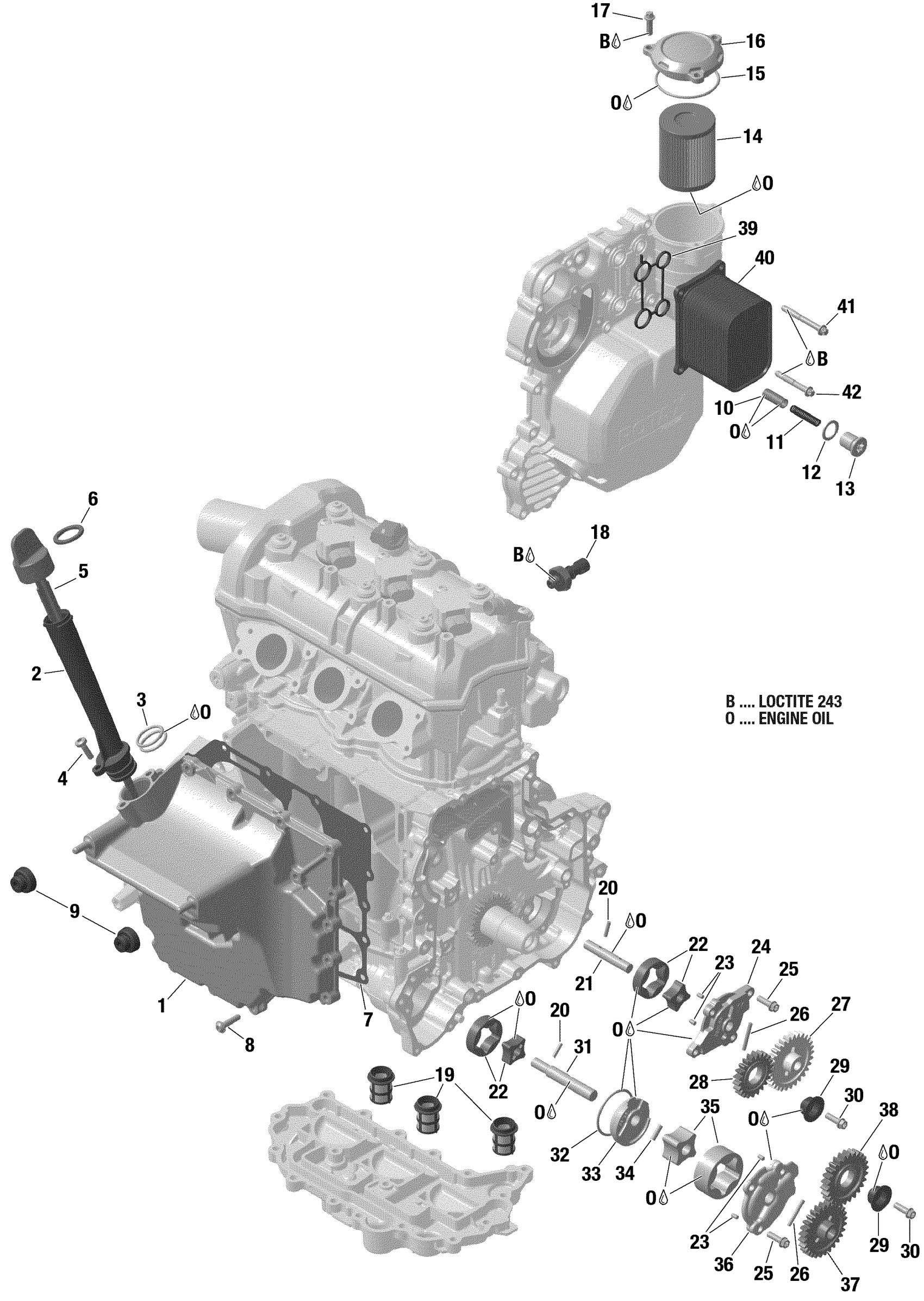

Sea-doo 001 - GTI 90, 2019 01- Engine Lubrication - 903 Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$110.99

2

Oil Filler Tube

420656900

$6.01

3

O-Ring

420430440

$3.43

4

Torx Flange Screw M6 X 20

420441383

$5.40

5>6

Oil Lever Tube | Includes no. 5-6

420856667

$13.16

6

Gasket Ring

420431790

$8.57

7

Oil Sump Cover Gasket | Included in gasket kit

420431848

$18.49

8

Torx Flange Screw M6 X 25

420841548

$5.40

9

Rubber Grommet

420860150

$5.39

10

Pressure Regulating Piston

420256591

$14.22

11

Spring

420239445

$14.22

12

Gasket Ring

420430624

$1.89

13

Plug Screw

420441373

$13.76

14

Oil Filter

420956123

$13.77

15

O-Ring

420230923

$3.17

16

Oil Filter Cover

420612139

$31.99

17

Torx Flange Screw M6 X 20

420441693

$6.03

18

Oil Pressure Switch

420856536

$62.99

19

Oil Sieve

420656680

$11.60

20

Needle Pin

420232731

$4.01

21

Oil Pump Shaft

420820120

$13.16

22

Oil Pump Rotor

420256348

$77.99

23

Needle Pin

420929075

$2.11

24

Oil Pump Cover

420911080

$28.49

25

Torx Flange Screw M6 X 20

420440207

$3.06

26

Needle Pin

420232431

$4.39

27

Oil Pump Gear, 29 Teeth

420834882

$11.60

28

Gear 22 Teeths

420835400

$20.49

29

Spacer

420947394

$24.99

30

Torx Flange Screw M6 X 20

420440207

$3.06

31

Oil Pump Shaft

420837916

$24.99

32

O-Ring

420631830

$2.11

33

Oil Pump Cover

420611950

$56.99

34

Needle Pin

420632221

$4.44

35

Oil Pump Rotor

420256836

$75.99

36

Oil Pump Cover

420611980

$36.99

37

Oil Pump Gear, 28 Teeth

420834887

$11.60

38

Idle Gear, 26 Teeth

420835321

$24.99

39

Gasket

420431871

$11.60

40

Oil Cooler

420656000

$158.99

41

Torx Flange Screw M6 X 55

420840673

$5.82

42

Torx Flange Screw M6 X 45

420641198

$4.12
