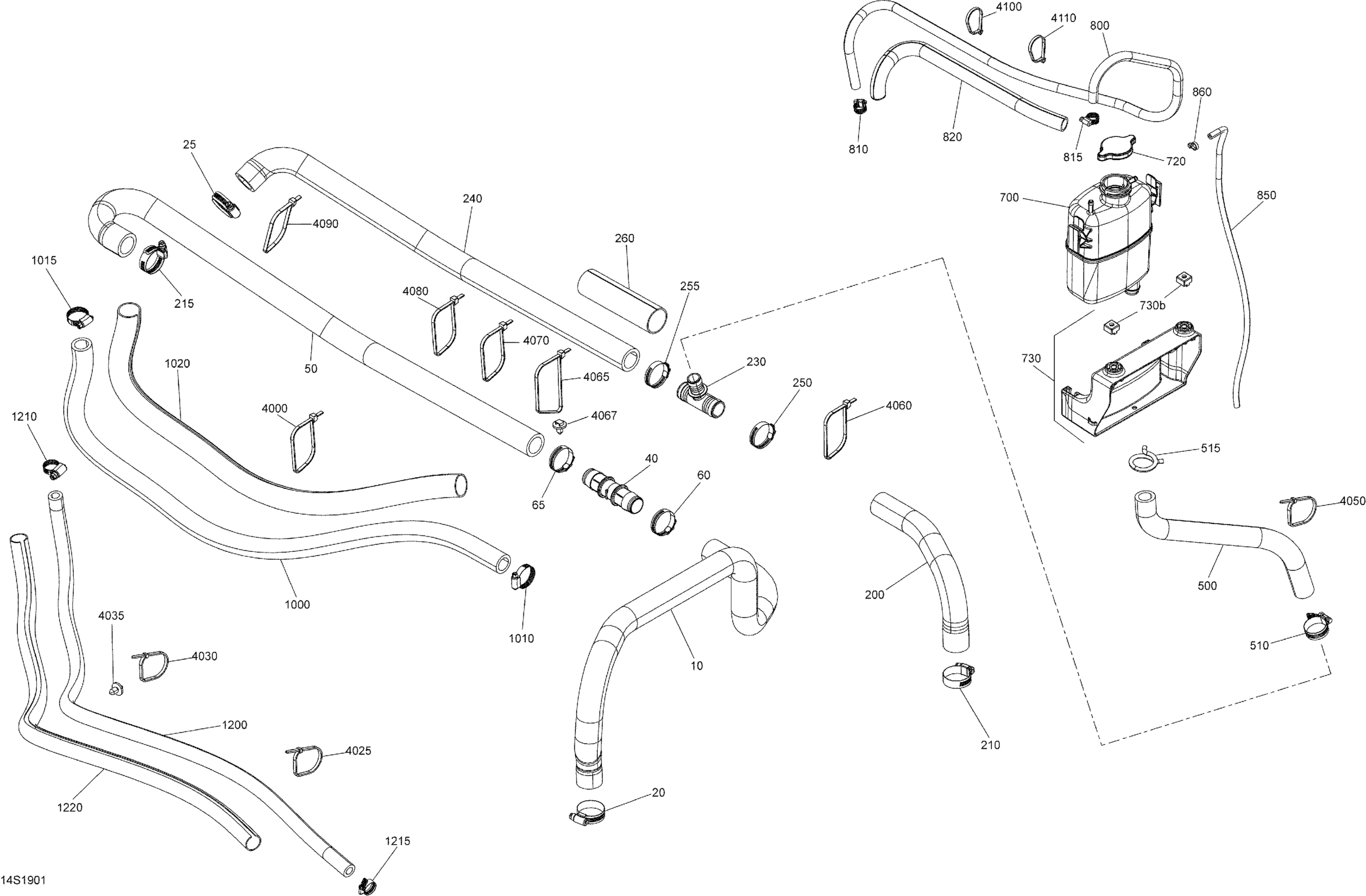

Sea-doo GTI 90, 2019 Cooling System Diagram

#

Description
Price

10

Radiator Hose This part replaces 276000458.

276000414

$66.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

40

Fitting

509000914

$7.59

50

Formed Hose

276000403

$63.99

60

Tridon Gear Clamp

293650185

$13.99

65

Tridon Gear Clamp

293650185

$13.99

200

Formed Hose

276000404

$63.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

230

T-Fitting

509000372

$10.33

240

Formed Hose This part replaces 276000401.

276000452

$25.99

250

Tridon Gear Clamp

293650185

$13.99

255

Tridon Gear Clamp

293650185

$13.99

260

Tubing 35 MM 1000MM Long

219704428

$10.99

270

Tubing 35 MM 1000MM Long

219704428

$10.99

500

Formed Hose

276000402

$63.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

700

Coolant Tank

276000086

$109.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

730>730a

Tank Holder Ass'y | Includes 730 TO 730a

291004446

$27.49

730a

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

810

Gear Clamp

293650287

$2.11

815

Gear Clamp

293650287

$2.11

820

Tubing 16 Mm 1000Mm Long

219704408

$7.49

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

860

Tie Wrap 94 mm | 4X4

293750001

$1.03

1000

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1010

Gear Clamp

293650284

$4.44

1015

Gear Clamp

293650284

$4.44

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Clamp Gear

293650285

$3.27

1215

Clamp Gear

293650285

$3.27

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

4000

Tie Wrap 368 mm

293750008

$1.04

4025

Tie-Rap 180 mm

414115200

$0.11

4030

Tie-Rap 180 mm

414115200

$0.11

4035

Mount Dart

293730040

$1.04

4050

Tie-Rap 180 mm

414115200

$0.11

4060

Tie Wrap 368 mm

293750008

$1.04

4065

Tie Wrap 368 mm

293750008

$1.04

4067

Mount Dart

293730040

$1.04

4070

Tie Wrap 368 mm

293750008

$1.04

4080

Tie Wrap 368 mm

293750008

$1.04

4090

Tie Wrap 368 mm

293750008

$1.04

4100

Tie-Rap 180 mm

414115200

$0.11

4110

Tie-Rap 180 mm

414115200

$0.11
