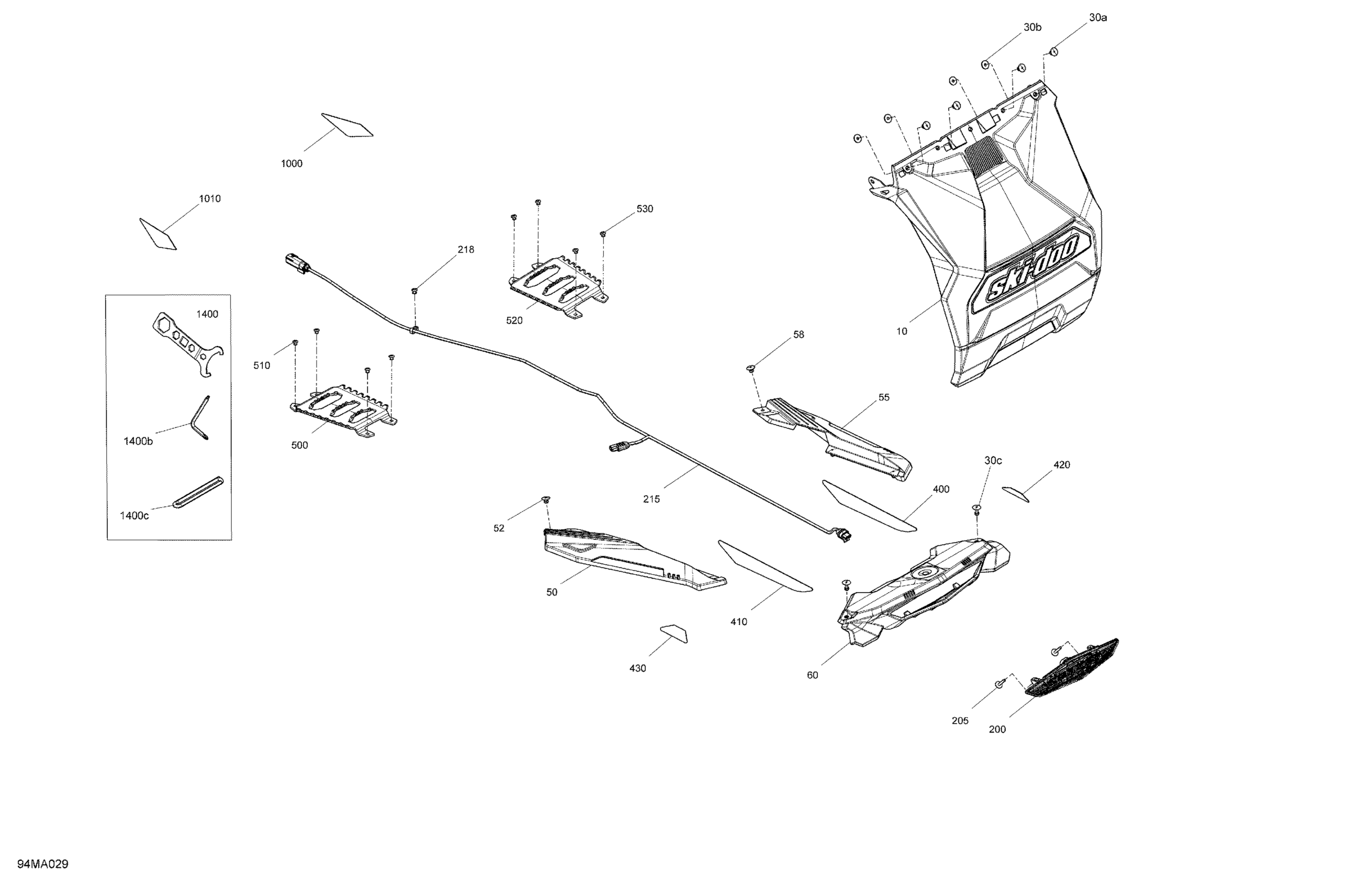

Ski-Doo GRAND TOURING 600R E-TEC - 2021 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001640

$120.12

30a

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

30b

Washer

517124300

$0.18

30c

Pop Rivet 3/16"

293150100

$1.04

LH Rear Guard

520001854

$13.36

Pop Rivet 3/16"

293150103

$0.52

RH Rear Guard

520001858

$13.36

Pop Rivet 3/16"

293150103

$0.52

Light Fairing

520001487

$18.63

200

Rear Light

520001143

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

215

Taillight Wiring Harness | Includes 8000 to 8000a

515178404

$34.30

218

Pop Rivet 3/16"

390402200

$0.30

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

420

Red, RH Rear Reflector

520001842

$4.51

430

Red, LH Rear Reflector

520001860

$4.51

500

Deep Black, Passenger Footrest

520002896

$44.75

510

Rivet 3/16"

293150102

$0.69

520

Deep Black, Passenger Footrest

520002896

$44.75

530

Rivet 3/16"

293150102

$0.69

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400b

Key

520001815

$11.99

1400c

Rope Starter

529017500

$1.19
