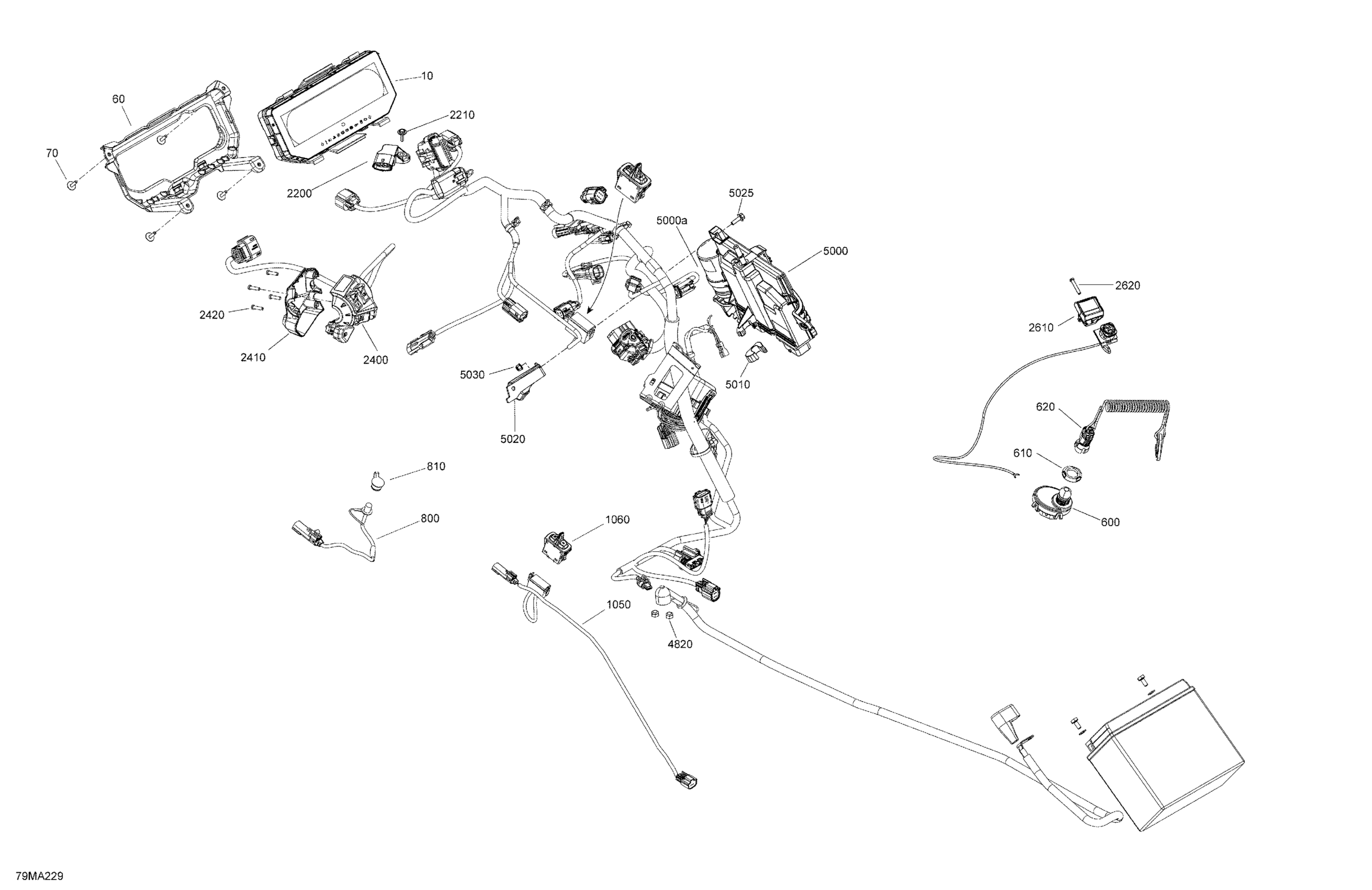

Ski-Doo GRAND TOURING 600R E-TEC - 2021 Electric - Upper Section Diagram

Description

Price

Multifunction Gauge Full Size Mono

515178227

$509.67

Gauge Support

515178965

$5.01

Screw M4 X 16

250000725

$3.30

600

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

610

Safety Nut (DESS Switch)

278002963

$3.12

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

800

Heated Visor Wiring Harness

515178645

$35.04

810

Cap

572103300

$9.36

1050

Seat Wiring Harness

515178608

$35.04

1060

Switch Rocker

515178503

$18.63

2200

Pressure And Temperature Sensor

707000995

$81.31

2210

Screw M4 X 16

250000725

$3.30

2400

LH Switch Housing

515178196

$258.93

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.96

2610

Emergency Stop Switch Support

515177310

$8.34

2620

Torx Screw #8-18

250000263

$0.99

4820

Elastic Stop Nut M6

232561434

$1.78

5000

Engine Control Module | Includes 5000 to 5000a

512061392

$571.61

5000a

Capacitor

515177272

$82.81

5010

Rubber Stopper

515178430

$2.03

5020

Module Support

515178159

$4.15

5025

Hex. Flange Screw, Scotch Grip

207551634

$1.91

5030

Flange Elastic Nut M5

233251434

$1.91
