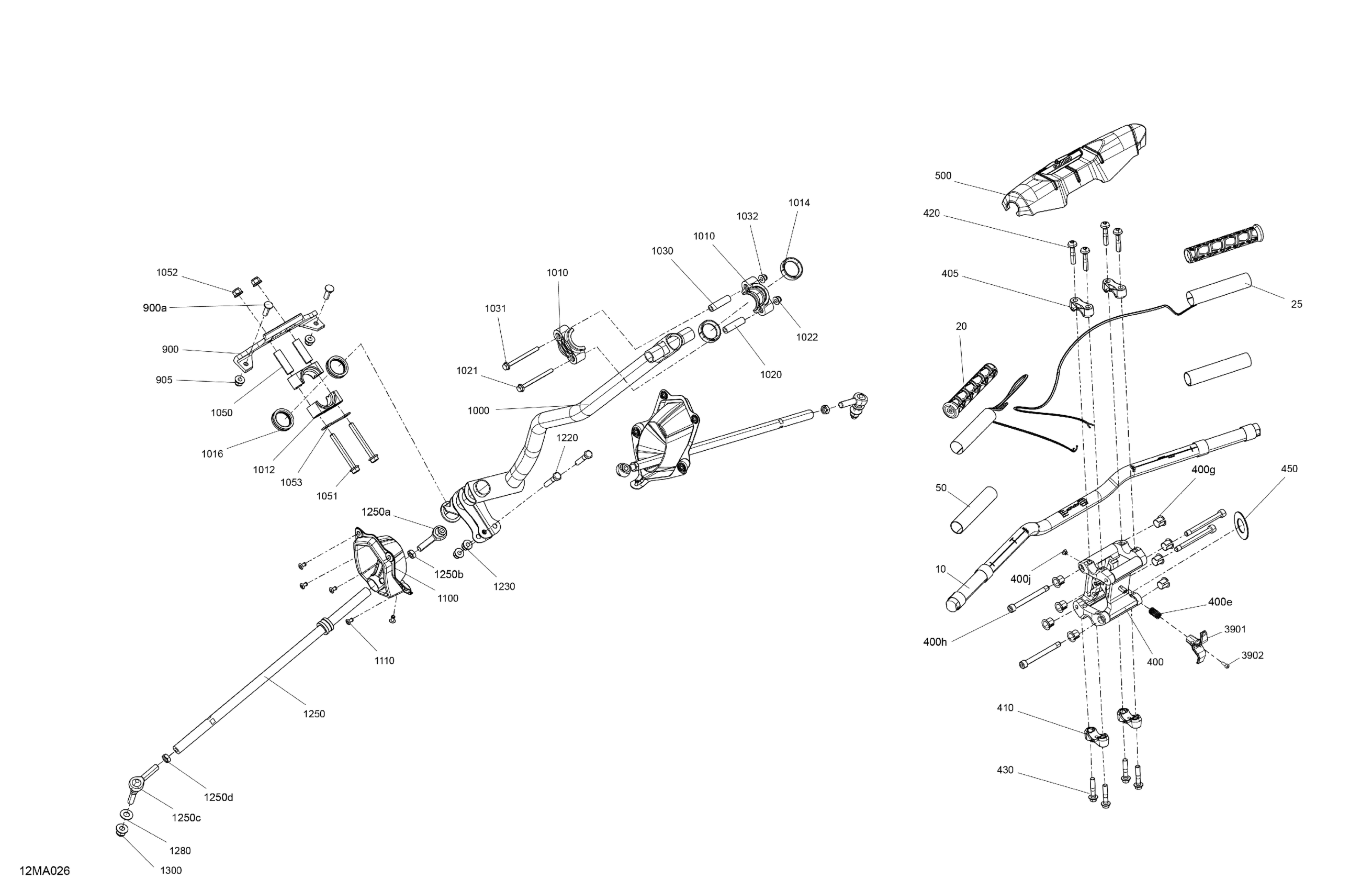

Ski-Doo GRAND TOURING 600R E-TEC - 2021 Mechanic - Steering Diagram

#

Description
Price

10

Handle Bar

506153038

$92.51

20

Grip

506152501

$9.88

25

Heated Film

506152901

$34.30

50

Insulant

506153178

$9.93

400

Riser Kit, Adjustable | Includes 400 to 400q

860201320

$152.21

400e

Spring

506152820

$7.57

400g

Cushion

506152520

$12.00

400h

Socket Head Screw M8 X 85

205588554

$0.96

400j

Pop Rivet 3/16"

390402200

$0.30

405

Steering Support

506152894

$12.10

410

Steering Support

506152894

$12.10

420

Button Head Torx Screw M8 X 38

250000904

$2.00

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

450

Washer

506152992

$1.03

500

Steering Pad

506152991

$49.97

900

Support Plate | Includes 900 to 900a

506152787

$34.30

900a

Clinch Stud

250300038

$3.88

905

Hex. Elastic Flange Nut M8

233281416

$1.43

1000

Main Tube

506153024

$173.85

1010

Upper Half Housing

506152219

$1.63

1012

Lower Half Housing

506153048

$5.40

1014

Upper Vibration Ring

506152292

$0.70

1016

Lower Vibration Ring

506152518

$4.39

1020

Housing Bushing

506152297

$9.93

1021

Hex. Flange Screw M6 x 75

250001114

$4.15

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1030

Housing Bushing

506152297

$9.93

1031

Hex. Flange Screw M6 x 75

250001114

$4.15

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1050

Housing Bushing

506152937

$9.93

1051

Hex. Flange Screw M8 X 70

207687044

$7.01

1052

Hex. Elastic Flange Nut M8

233281416

$1.43

1053

Stopper Plate

506152938

$9.93

1100

Cap

506153294

$24.60

1110

Pop Rivet 3/16"

293150008

$0.46

1220

Hex. Screw M8 X 40

207084044

$1.06

1230

Hex. Elastic Flange Nut M8

233281416

$1.43

1250

Rod Ass'y | Includes 1250 to 1250f

506152794

$67.88

1250a

LH Threaded Ball Joint

506152344

$38.78

1250b

LH Threaded Hex. Jam Nut M10

250100016

$0.70

1250c

RH Threaded Ball Joint

506152684

$41.01

1250d

RH Threaded Hex. Jam Nut M10

732610010

$0.70

1280

Washer

506152582

$4.28

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

3901

Handle

506152821

$3.01

3902

Socket Head Screw M4X 10

205041060

$2.00
