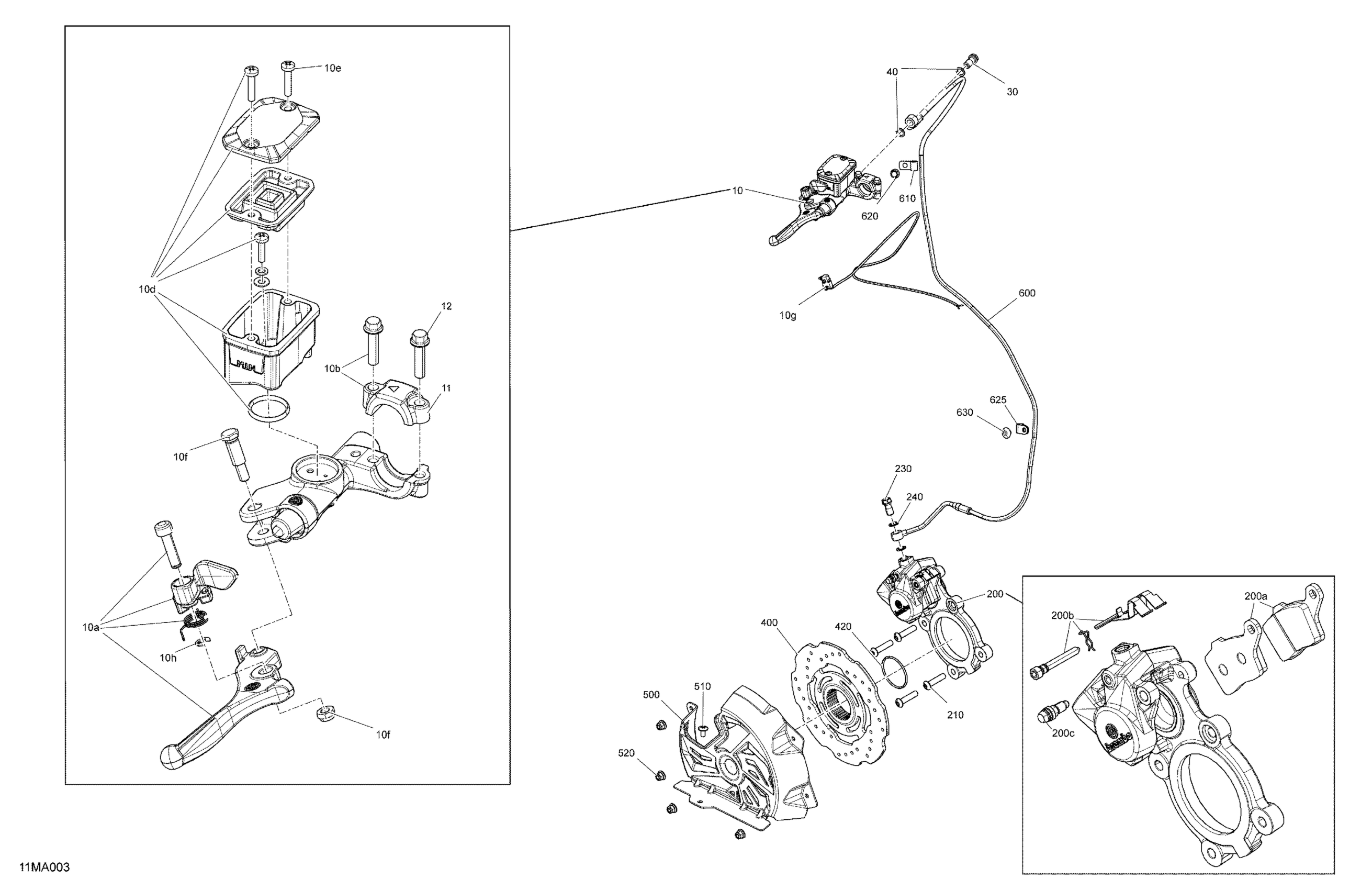

Ski-Doo GRAND TOURING 600R E-TEC - 2021 Mechanic - Brakes Diagram

#

Description
Price

10

Master Brake Cylinder | Includes 10 to 10f

507032728

$312.66

10a

Lever With Parking Lock

507032476

$98.48

10b

Clamp And Screw Kit

507032477

$22.36

10d

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$106.69

10e

Screw M4 X 20

415129356

$2.10

10f

Pin Ass'y

415030000

$17.13

10g

Microswitch

507032601

$68.63

10h

Circlip | Model-RS

414439000

$4.01

11

Clamps | Includes 75a to 75b

719000049

$22.36

11a

Torx Screw M6 X 20

250000433

$7.09

12

Hex. Flange Screw M6 X 25

250000447

$2.00

30

Banjo Bolt

507032551

$5.22

40

Copper Washer

705601628

$4.21

200

Brake Caliper | Includes 200 to 200c

507032720

$323.10

200a

Brake Pads Kit

507032473

$49.22

200b

Brake Spring Kit

507032722

$35.79

200c

Bleeder

507032475

$17.13

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

230

Banjo Bolt

507032551

$5.22

240

Copper Washer

705601628

$4.21

400

Disc

507032487

$172.36

420

O Ring

293300221

$1.54

500

Disk Protector

507032588

$44.00

510

Torx Truss Screw M6 X 12

250000767

$1.91

520

Hex. Flange Elastic Nut M6

233261466

$1.91

600

Brake Hose

507032654

$57.43

610

Open Clamp

414108400

$3.01

620

Hex. Flange Screw M6 X 10

210261040

$1.43

625

Hose Clamp

293650257

$5.00

630

Blind Rivet 3/16

293150231

$0.30
