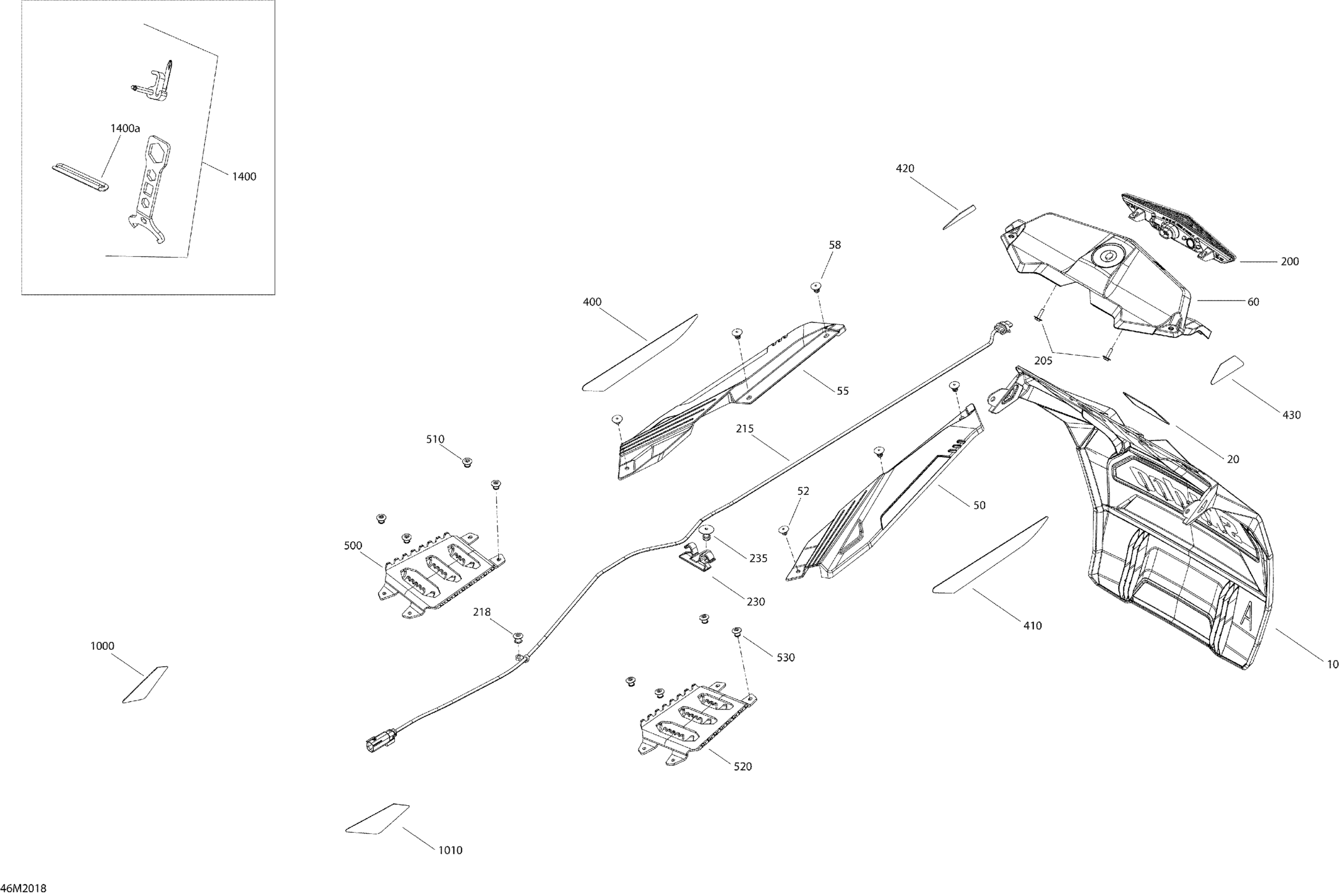

Ski-Doo GRAND TOURING 600R E-TEC - 2020 Utilities Diagram

#

Description
Price

10

Snow Gard Ass'y

520001640

$124.58

50

LH Rear Guard

520001854

$13.77

52

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

55

RH Rear Guard

520001858

$13.77

58

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

60

Light Fairing

520001487

$19.20

200

Rear Light

520001143

$76.89

205

Screw M4 X 16

250000725

$2.87

215

Taillight Wiring Harness | Includes 8000 to 8000a

515178404

$35.35

218

Pop Rivet 3/16"

390402200

$0.26

230

Cap

520001722

$8.91

235

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

400

Red, RH Rear Reflector

520001900

$16.89

410

Red, LH Rear Reflector

520001901

$16.89

420

Red, RH Rear Reflector

520001842

$4.65

430

Red, LH Rear Reflector

520001860

$4.65

500

Deep Black, Passenger Footrest

520002896

$46.12

510

Rivet 3/16"

293150102

$0.71

520

Deep Black, Passenger Footrest

520002896

$46.12

530

Rivet 3/16"

293150102

$0.71

1000

RH Front Reflector

520002343

$7.95

1010

LH Front Reflector

520002344

$9.97

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400a

Rope Starter

529017500

$1.19
