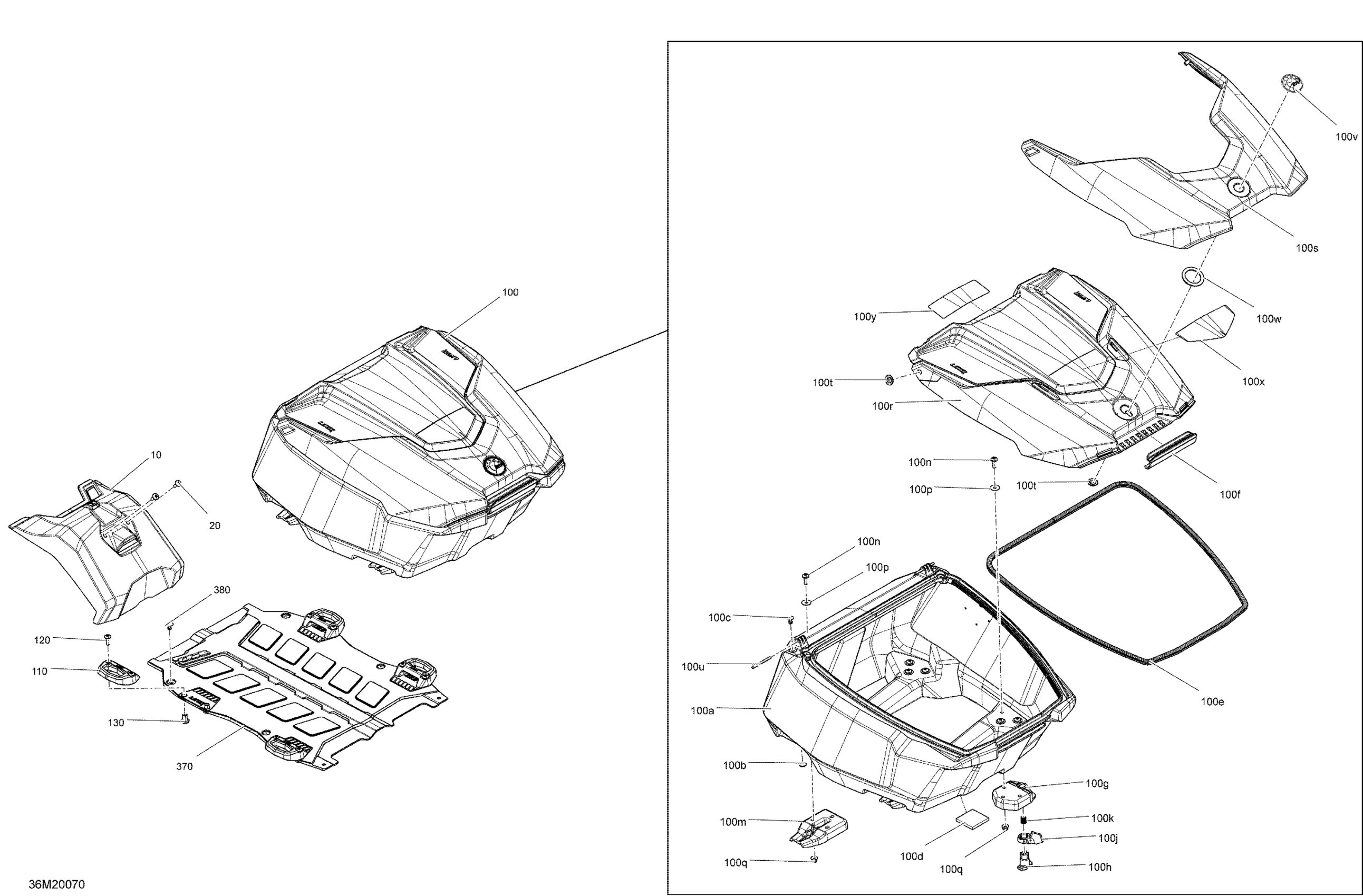

Ski-Doo 001 - GRAND TOURING 600R E-TEC - North America, 2020 09- Body - Cargo Diagram

Description

Price

Battery Cover

511001210

$30.99

Torx Screw M6 X 16

250001005

$0.53

100

Storage Box Ass'y | Hyper Silver

511001263

Unavailable

100a

Storage Box Ass'y | Includes 100a to 100a3

511001340

$139.99

100b

Washer

517124300

$0.19

100c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

100d

Self Adhesive Protective Foam

511001275

$0.72

100e

Seal, 1PC = 3M

293830188

$39.99

100f

Clip | Outlander Max

269501945

$15.89

100g

RH Low Profile LINK Fasterner | Includes 100g to 100g4

511001827

$42.49

100h

RH Latch | Package Hunter

708200267

$3.01

100j

RH Lever

708200374

$4.02

100k

Spring | Package Hunter

708200263

Unavailable

100m

Linq Toe In

511001164

$23.49

100n

Torx Screw M6 X 20

250000712

$2.11

100p

Flat Washer

250200040

$1.90

100q

Hex. Flange Elastic Nut M6

233261466

$2.00

100r

Storage Lid

511001150

$60.99

100s

Storage Trim | Model Hyper Silver

511001264

$214.99

100t

Self Threading Nut 8MM

250100213

$3.80

100u

Hinge Pin

511001211

$14.68

100v

BRP Logo 48mm

516008738

$16.99

100w

Self Adhesive Weather Strip

511001392

$0.70

100x

Warning Label

516009527

Unavailable

100y

Warning Label

516009528

Unavailable

110

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

$42.49

120

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

130

Threaded Insert

511000822

$2.09

370

Radiator Trim

511001142

$34.99

380

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
