Description

Price

10a

Fixed Flange Ass'y

417224333

$209.99

10d

Sheave Drive Pulley Sliding Ass'y | Includes 10d to 10n

417224607

$349.99

10g

Bushing

293250389

$21.99

10h

Circlip

293370137

$3.28

10j

Back Torque Roller

417224153

$16.99

10k

Torque Roller

417224154

$26.99

10m

Pin

417224510

$9.95

10n

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10p

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$209.99

10q

Roller Pulley Ass'y

417224947

$35.99

10r

Axle - 10mm

417224204

$10.49

10s

Thrust Washer

417224868

$2.32

10t

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10u

Clutch Spring

417224172

$29.49

10v

Seat Spring

417224003

$10.38

10w

Circlip

293370116

$3.28

10x

Ramp Pulley 901

417224626

$31.99

10y

Molded Cam

417224113

$8.89

10z

RH Lever

417224086

$9.10

10aa

LH Lever

417224114

$5.61

10ab

Pivot 33mm

417224221

$5.79

10ad

Pin Ramp

417224694

$10.49

10ae

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10af

VIbration Damper

417224682

$149.99

10ag

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100a

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

417127632

$539.99

100b

Pulley Roller

417127016

$24.49

100c

Pivot Stud

417127294

$14.49

100d

Lock Washer 8 mm

250200009

$2.11

100f

Spring Pin

250400070

$2.00

100g

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100h

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100k

Circlip

293370049

$4.99

100m

Cam Ass'y | Includes 100c to 100c3

417127367

$148.99

100n

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100q

Circlip

293370049

$4.99

100r

Green, Spring

417127137

$41.49

100s

Calibration Ass'y

415129604

$21.49

100t

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100u

Swivel Abutment

417127116

$9.39

100v

Socket Screw M5 X 25

250000981

$1.68

100w

Flat Washer M5

234051410

$0.53

100x

Elastic Stop Nut M5

232551414

$0.87

100y

Washer

417127155

$8.26

100z

Ball Bearing

504152574

$35.99

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300479

$77.99

330

Front Retaining Hook

417300561

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Duct Cooling

417300553

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

500

Rear Guard Support

417300579

$14.49

520

Hair Pin

114045200

$11.11

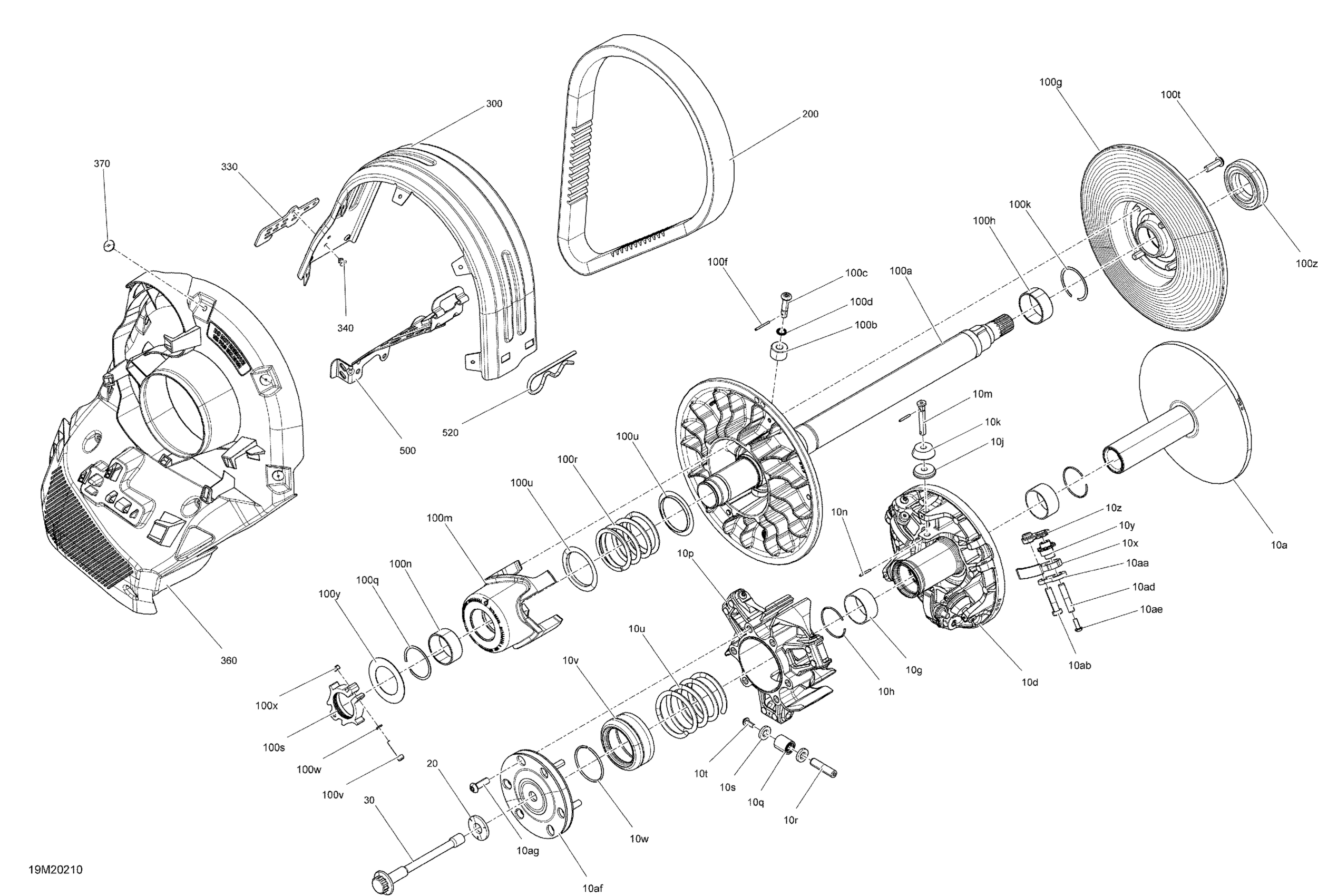

Ski-Doo 001 - GRAND TOURING 600R E-TEC - North America, 2020 05- Pulley - System Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10d to 10n

Bushing

Circlip

Back Torque Roller

Torque Roller

Pin

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley | Includes 10a3 to 10a3h

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp Pulley 901

Molded Cam

RH Lever

LH Lever

Pivot 33mm

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Green, Spring

Calibration Ass'y

Button Head Torx Screw M8 X 25 S.Gr

Swivel Abutment

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Front Retaining Hook

Avex Rivet

CVT Duct Cooling

Pop Rivet 3/16"

Rear Guard Support

Hair Pin
