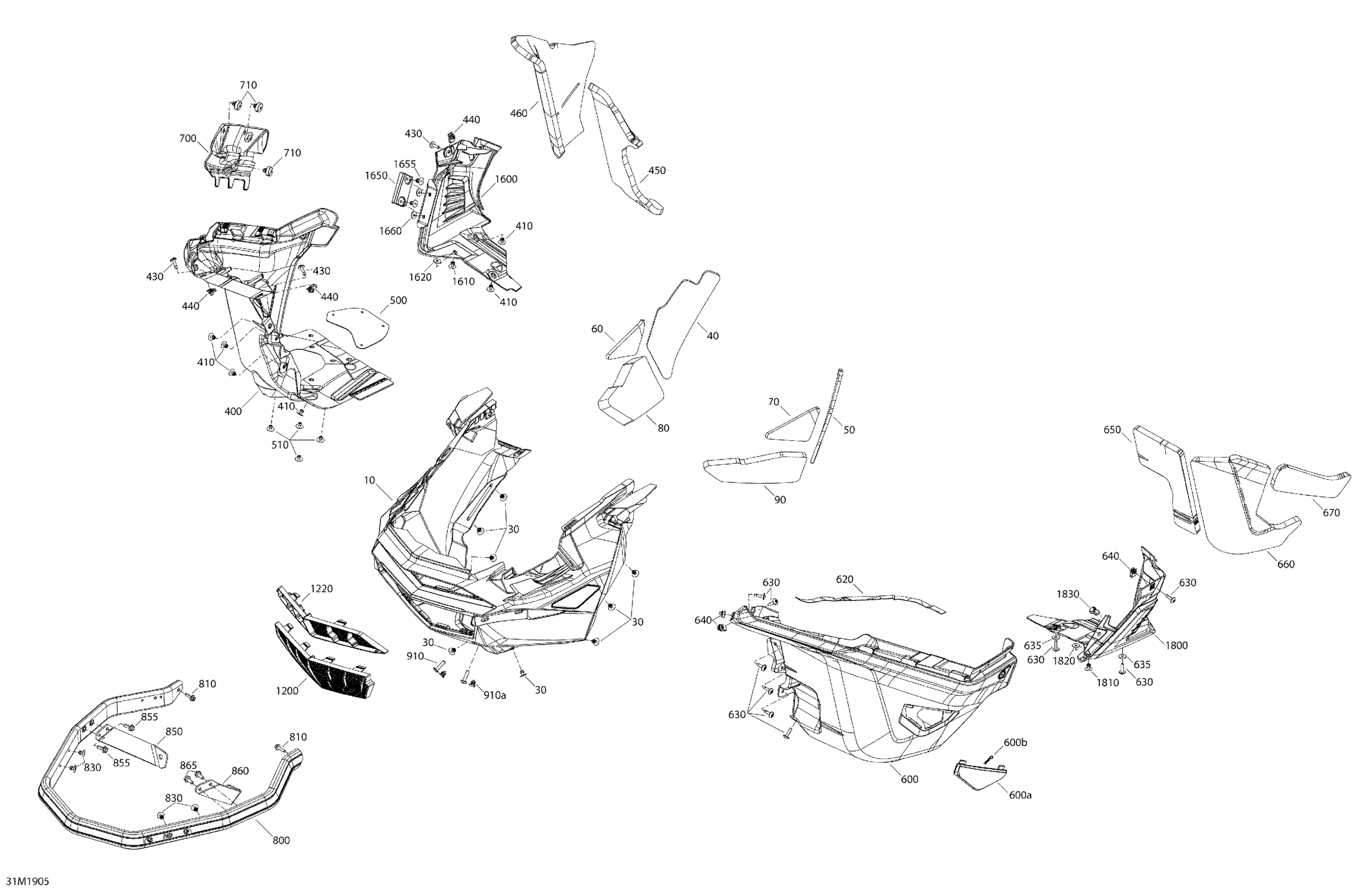

Ski-Doo 001 - GRAND TOURING 600R E-TEC, 2019 09- Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$184.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Bottom Pan Central Foam

502007545

$9.59

70

LH Bottom Pan Central Foam

502007546

$13.99

80

RH Lower Bottom Pan Foam

502007800

$20.99

90

LH Lower Bottom Pan Foam

502007799

$7.89

400

RH Bottom Pan

502007737

$134.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

Foam

502007778

$19.99

500

Plate

502007868

$2.19

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

600

LH Bottom Pan Ass'y | Includes 600 to 600c

502007739

$134.99

600a

Bottom Pan Door

502007676

$38.99

600b

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

Foam

502007779

$11.99

670

LH Rear Bottom Pan Foam

502007790

$11.99

700

Heat Shield

502007845

$8.09

710

Stopper

502008149

$1.99

800

Front Bumper

502007754

$174.49

800

Front Bumper | Includes 800 to 800b

502007869

$164.49

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

850

RH Bumper Reinforcement

502007762

$13.49

855

Hex. Flange Screw M6 X 16

207661646

$1.36

860

LH Bumper Reinforcement

502007763

$13.49

865

Hex. Flange Screw M6 X 16

207661646

$1.36

910

Torx Screw M6 X 25

250000758

$2.11

910a

Panel Fastener

518321954

$7.69

1200

Prefilter Lower Grille

502007857

$27.99

1220

Prefilter Upper Grille

502007858

$27.99

1600

RH Panel

502007714

$53.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1660

Washer

517124300

$0.19

1800

LH Panel

502007872

$56.99

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47
