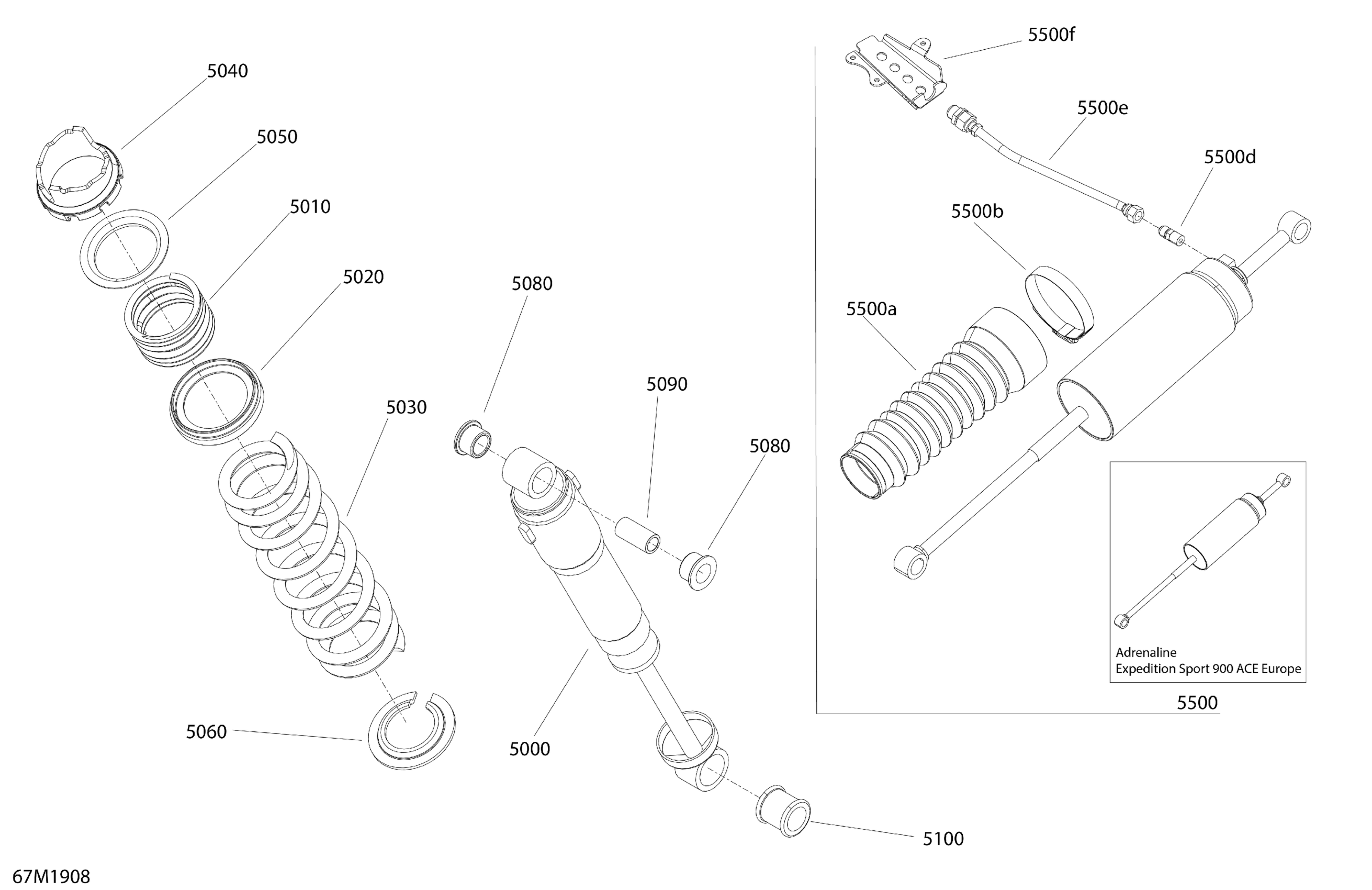

Ski-Doo 001 - GRAND TOURING 600R E-TEC, 2019 08- Rear Suspension Shocks - Grand Touring Diagram

Description

Price

5000

Central Shock

503193909

$248.99

5010

Black, Spring (51mm) Short

503193837

$67.99

5020

Spring Spacer

503191281

$8.89

5030

Deep Black, Spring (189mm) Long

503193160

$90.99

5040

Adjustment Cam

505073625

$12.99

5050

Spring Guide

503191872

$2.29

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock | Included 5500 to 5500m

503194926

$716.99

5500a

Protection Boot

570278300

$59.99

5500b

Tridon Clamp

293650064

$8.29

5500d

Male Pneumatic Connector

503191939

$44.49

5500e

Air Hose Ass'y

503192652

$134.99

5500f

Bracket

503194925

$37.99
