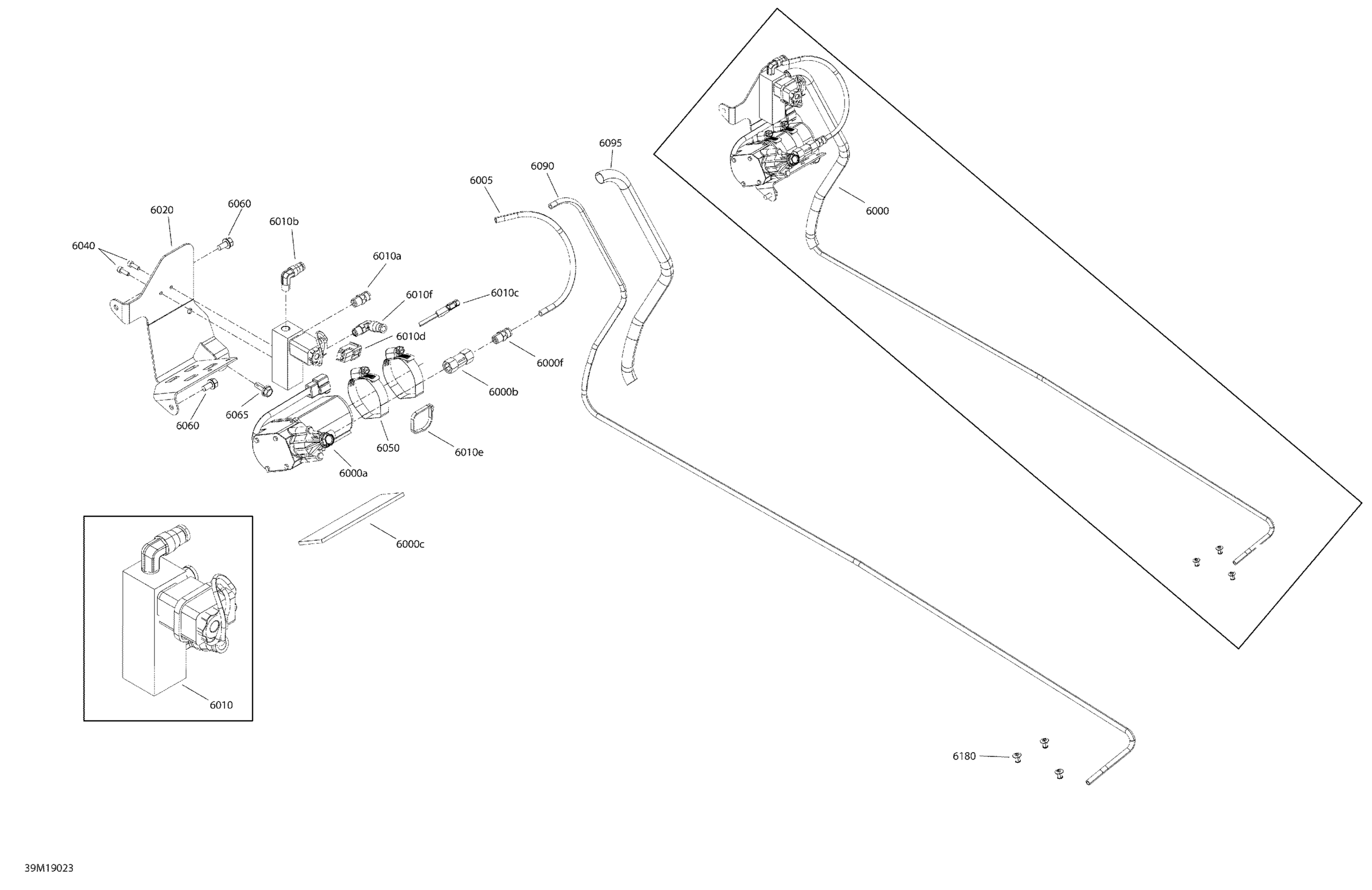

Ski-Doo GRAND TOURING 600R E-TEC, 2019 Rear Suspension - LTD - Compressor Diagram

Description

Price

6000

Not Available As Spare Part - Friction Washer

Unavailable

6000a

Compressor

503194941

$422.36

6000b

Check Valve

706000940

$34.30

6000c

Rubber Damper

503191940

$8.46

6000e

Tubing 6 Mm 3000Mm Long

219704425

$12.75

6000f

Connector

706000869

$32.06

6005

Hose 4.32Mm 3000Mm Long

219704415

$50.72

6010

Air Manifold | Includes 6010 to 6010f

503195252

$316.39

6010a

Connector

706000869

$32.06

6010b

Elbow 90°

706000872

$26.09

6010c

Male Terminal

515175232

$1.45

6010d

Male Terminal Housing, 2 Circuits

515175654

$7.25

6010e

Tie-Rap 180 mm

414115200

$0.10

6010f

Elbow 90°

706000928

$25.34

6020

Support

503195283

$39.52

6040

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.06

6050

Norma Gear Clamp

293650090

$4.25

6060

Hex. Flange Screw M6 X 12

210261250

$1.79

6065

Hex. Flange Screw M6 X 16

207661654

$2.00

6070

Tie-Rap 180 mm

414115200

$0.10

6080

Tie-Rap 180 mm

414115200

$0.10

6090

Hose 4.32Mm 3000Mm Long

219704415

$50.72

6095

Protector Tube

504153468

Unavailable

6180

Rivet 3/16"

293150102

$0.69

8000

Black, Wheel Cap

503192771

$2.21
